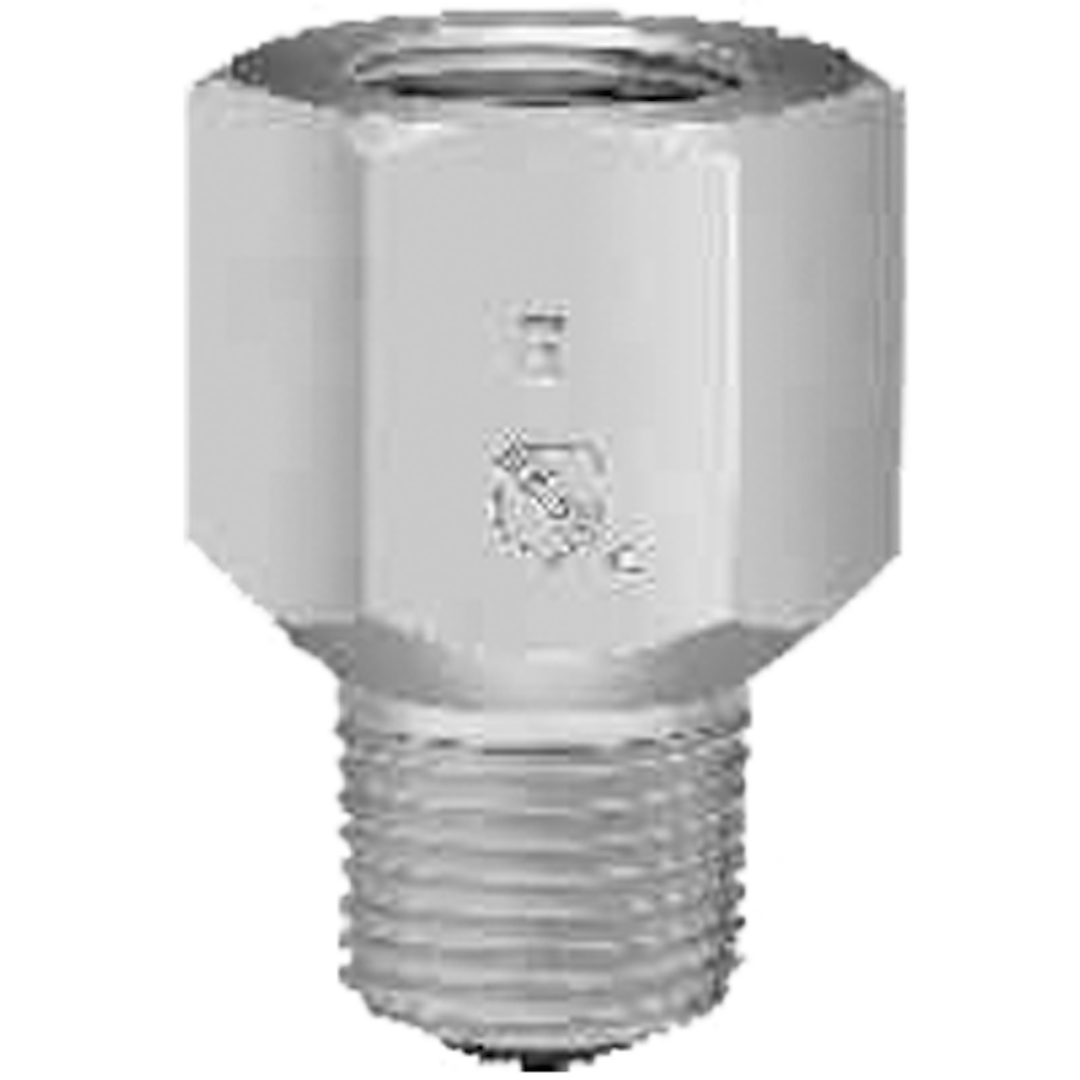

Maretron Pressure Snubber
Maretron Pressure Snubber

Maretron Pressure Snubber

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and...
Vendor: Maretron
SKU: wt-MARPTSNUB01
Availability: In stock
$72.00
$75.00
$72.00
Subtotal: $72.00
Description
Description
x

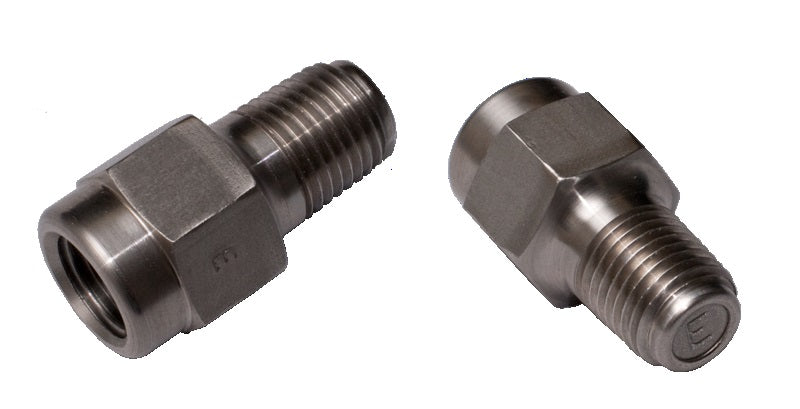

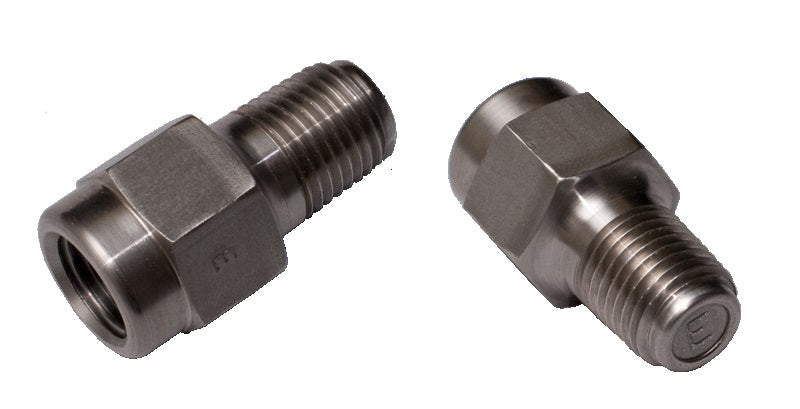

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and a pressure transducer FPM100 accessory. The PT-SNUB-01 dampens pressure variations between a pressure source and the pressure transducer, both smoothing the changes due to pressure spikes and surges and protecting the pressure transducer from these changes. Please follow these instructions to install the PT-SNUB-01 Pressure Snubber between a Maretron FPM100 pressure transducer accessory and a tank or pressure source being monitored.

Pressure Snubber Specifications Specification Value
Housing Material 303 Stainless Steel
Filter Disc 316 Stainless Steel
Max Pressure Rating 15,000 PSI (1,034 bar)
Max Pore Opening 0.0025 in
Flow at 1 PSI (69 mbar) Differential Pressure 3.0 ft<font FACE="Arial,Arial" SIZE="1 in>3/hr (0.085m/hr)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Maretron

UPC: 873804002965

Model Number: PT-SNUB-01

Weight: 1
