Lowrance Fuel Flow Sensor w/10' Cable & T-Connector [000-11517-001]

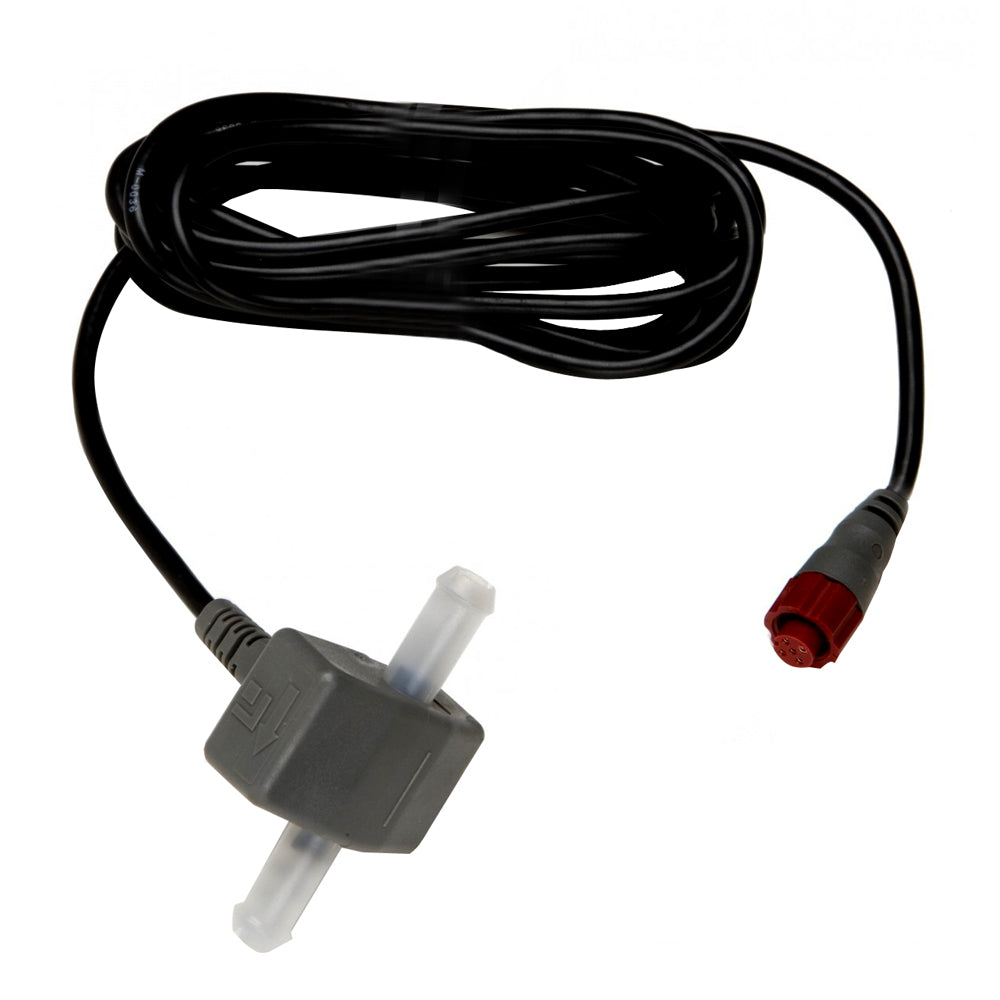

Fuel Flow Sensor with 10' cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

• Fuel Flow

• Tank Fuel Used

• Trip Fuel Used

• Seasonal Fuel Used

Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes

Specifications:

• Type: Misc
• Box Dimensions: 2"H x 4"W x 10"L WT: 0.6 lbs
• UPC: 9420024129852
