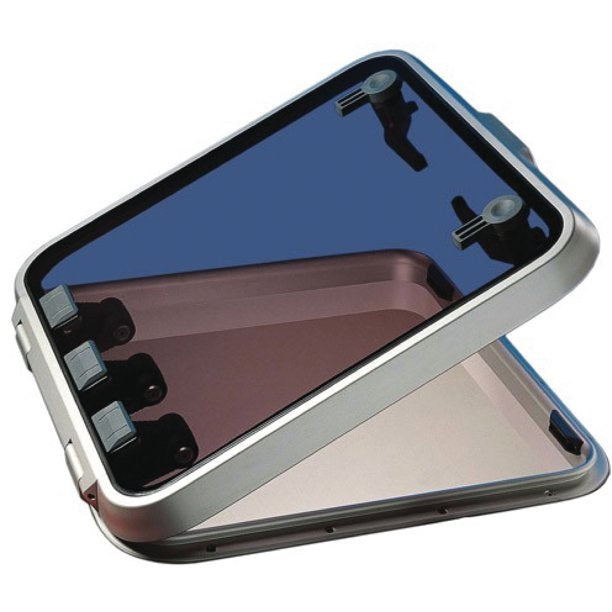

Lewmar Size 70 Ocean Series Hatch Flange Base

Lewmar Size 70 Ocean Series Hatch Flange Base

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section...
Vendor: Lewmar
SKU: wt-LEW39670070
Availability: In stock
$1,165.27
$1,961.95
$1,165.27
Subtotal: $1,165.27
Description
Description
x
  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4 in).
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
1 in Flange Smoke Grey 23.8 1/2

Dimensions

Length X (in)
Width Y (in) Height Z (in) Radii R (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Length Flat X1 (in) Cut-Out Width Flat Y1 (in) Cut-Out Radii Flat R1 (in)
27 5/16 27 5/16 1 11/16 3 3/16 19 3/16 24 1/2 24 1/2 1 11/16


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lewmar

UPC: 743683113086

Model Number: 39670070

Weight: 26
