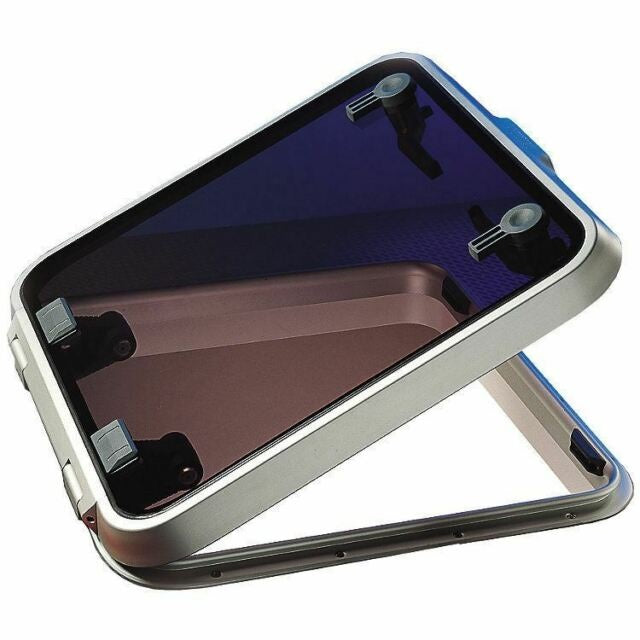

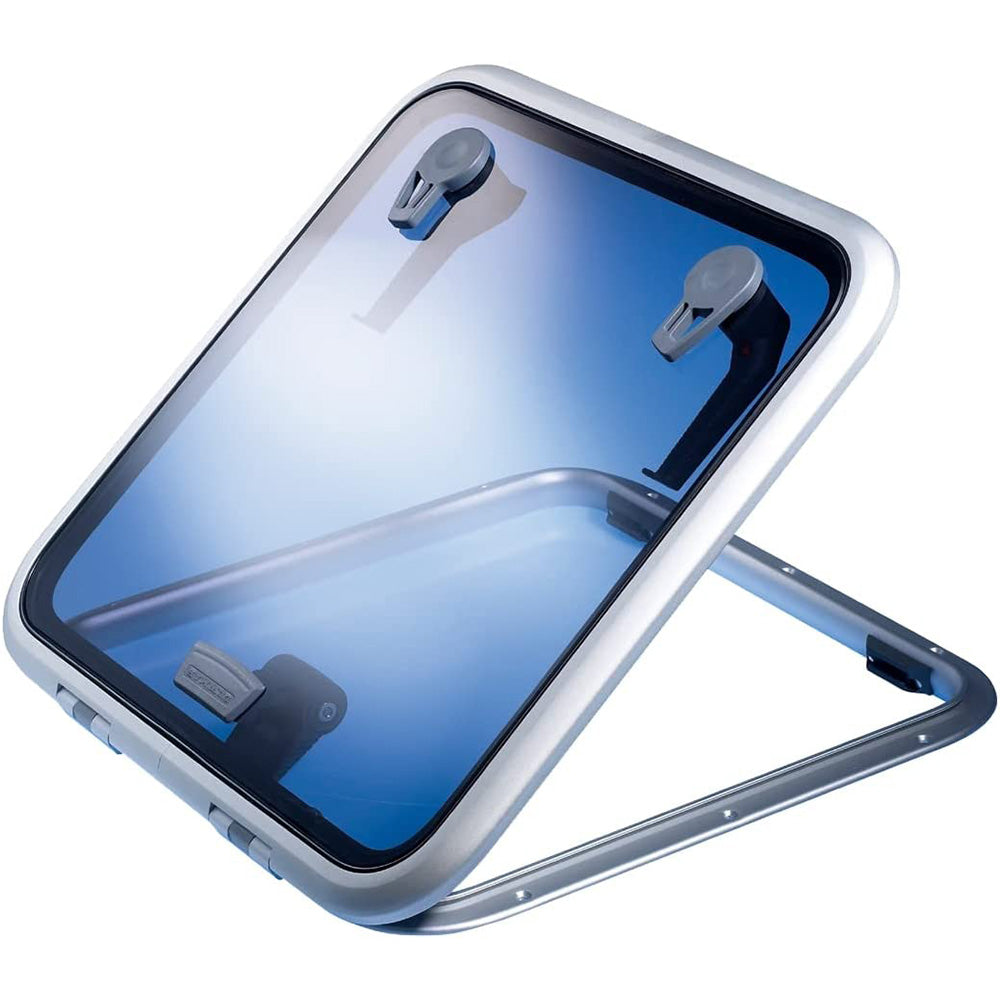

Lewmar Size 60 Ocean Series Hatch Flat Base
Lewmar Size 60 Ocean Series Hatch Flat Base

Lewmar Size 60 Ocean Series Hatch Flat Base

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section...
Vendor: Lewmar
SKU: wt-LEW39660050
Availability: In stock
$870.34
$1,465.95
$870.34
Subtotal: $870.34
Description
Description
x
  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4 in).
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
  • Flat base hatches cannot be used with Trim kits or Roller shades
Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Flat Base Smoke Grey 17.6 1/2

Dimensions

Length X (in)
Width Y (in) Height Z (in) Radii R (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Length Flat X1 (in) Cut-Out Width Flat Y1 (in) Cut-Out Radii Flat R1 (in)
22 5/8 22 5/8 1 11/16 3 3/16 14 7/16 19 3/4 19 3/4 1 9/16


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lewmar

UPC: 743683111051

Model Number: 39660050

Weight: 20
