Description

Description

x

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Grey	5.5	5/16

Dimensions

Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Cut-Out Length X1 (in)	Cut-Out Width Y1 (in)	Cut-Out Radii R1 (in)
9 11/16	19 5/16	1	2 7/8	6 15/16	16 9/16	1 11/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4 in). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

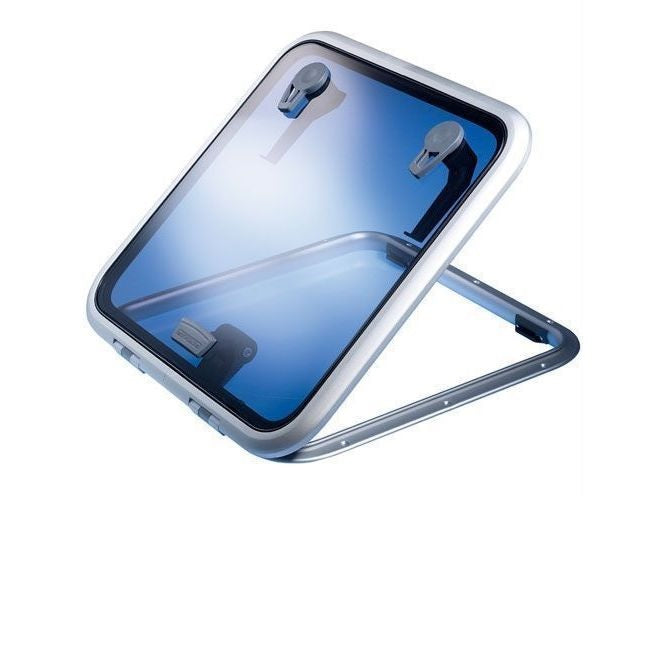

Brand: Lewmar

UPC: 743683107146

Model Number: 39941030

Weight: 7
