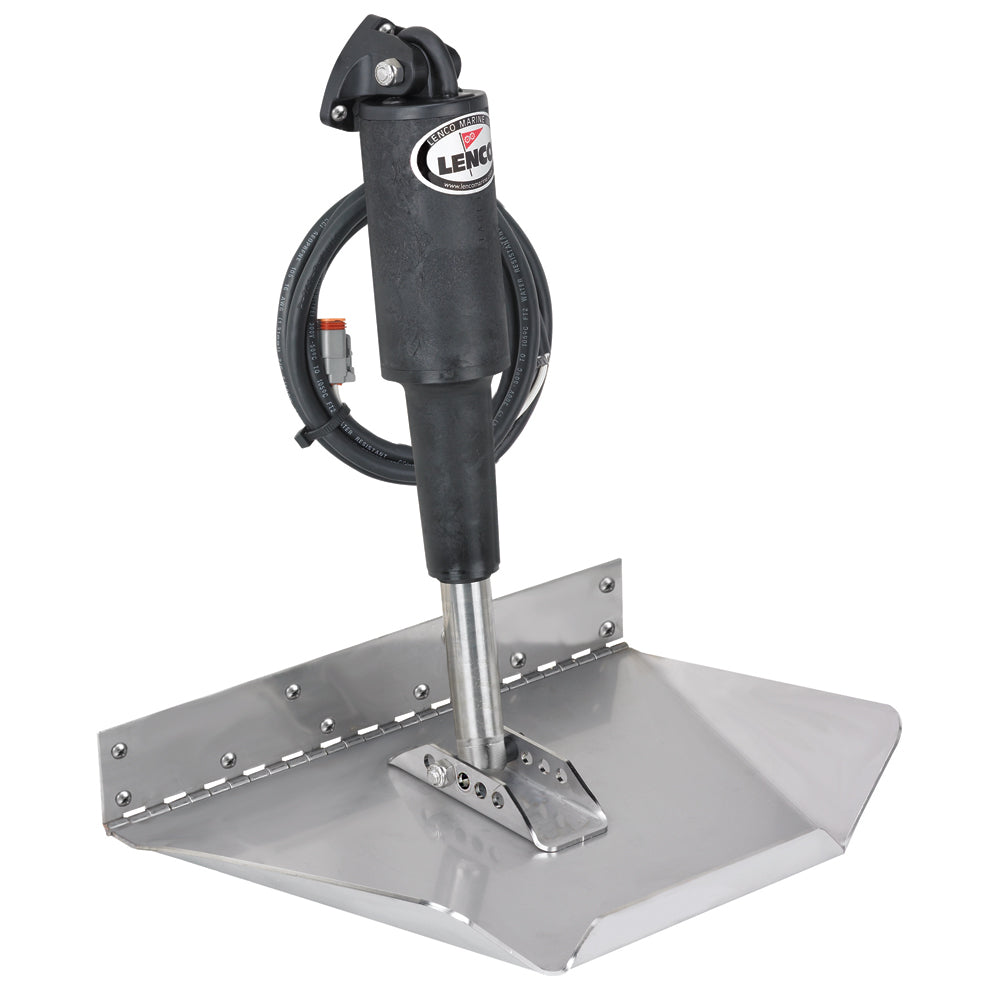

Lenco 9" x 14" Airboat Trim Tab Kit w/o Switch [15112-101]

Airboat Trim Tab Kits
12-Gauge Blades / 12-Volt Actuators

Lenco Airboat Electric Trim Tab Kit was designed exclusively for airboats. Engineered with a short Extreme Duty Actuator and a unique mount that allows maximum plate movement and safe upward position when running in shallow water and on land. This system eliminates porposing and helps to create a smoother ride.

Blade is 12 gauge - 304 SS with 5/8" flared trailing edge and 1" Custom Hinge with 1/8" diameter hinge pin. Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections.

Kit Contents

• 1 each of 12-gauge 304 stainless steel trim tab plane

• 1 each of #15055-001 XD actuator with 6' lead and Deutsch plug

• 1 each of #30133-002 14' actuator extension wiring harness

• 1 each of #15085-001 (116) upper mounting bracket with gland seal

• 1 each of the Lenco owner's/installation manual

• All necessary stainless steel mounting hardware

• Trim Tab Kit: Airboat

• Blades: 12 Gauge Stainless Steel

• Finish: Smooth

• Switch Kit: Sold Separately

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat

• Made in: Stuart, Florida U.S.A.

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

  Specifications:

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 7"H x 13"W x 25"L WT: 11.3 lbs
  • UPC: 874847006637

  Brochure (pdf)
