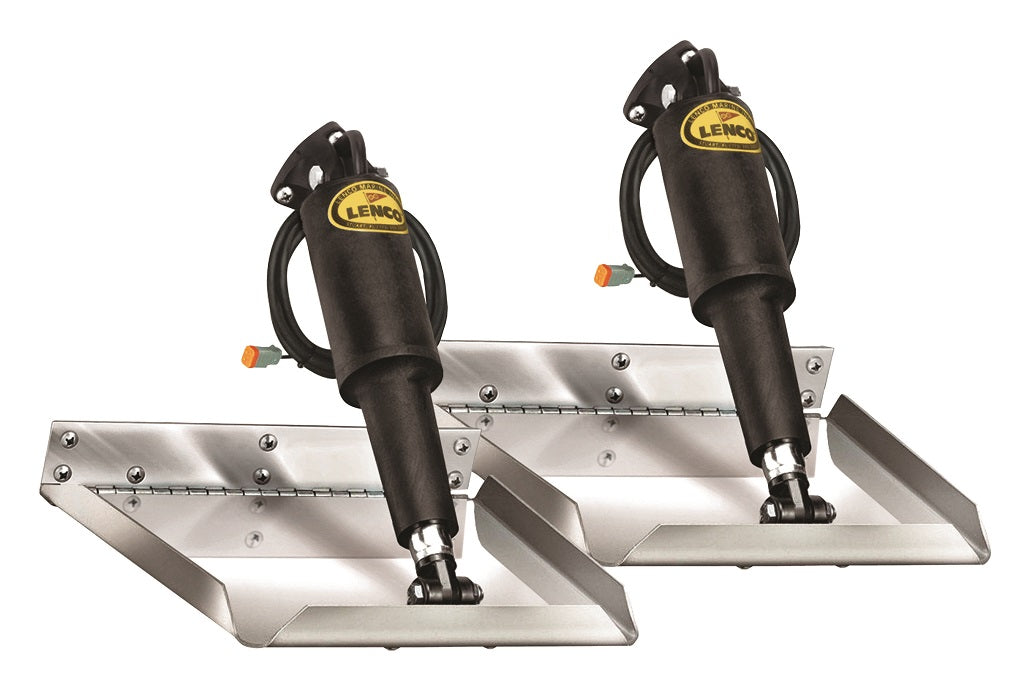

Lenco 12inx9in Edge Mount Trim Tab Kit 12v Electro Polished

Lenco 12x9" Edge Mount Trim Tab Kit 12v Electro Polished

All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12 in (30.5 cm) blades giving them a 3 in (7.6 cm) lower mounting height. Boat Lengths 14 feet (4.3 m) to 30 feet (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1 in (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

• (2) 12-gauge stainless steel Electro-Polished blades
• (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses - 20 feet (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner's/installation manual
• Stainless steel mounting hardware
"

Brand: LENCO

UPC: 874847006798

Model Number: 15115-101

Weight: 17
