Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9 [XKASL9X9]

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9 [XKASL9X9]

XKA Stainless Steel Trim Tab Kit with One-Touch Control  - 9 x 9 The Lectrotab stainless steel trim...
Vendor: Lectrotab
SKU: 96270
Availability: In stock
Product type: Trim Tabs
$1,019.15
$1,199.00
$1,019.15
Subtotal: $1,019.15
Description
Description
x

XKA Stainless Steel Trim Tab Kit with One-Touch Control  - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

  • Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
  • Boat Length - 14' to 19' (4 to 6 M)
  • Trim Tab Material - 12 gauge, 304 Stainless Steel
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
  • Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
  • Rocker Switch Operating Voltage - 12 or 24 V

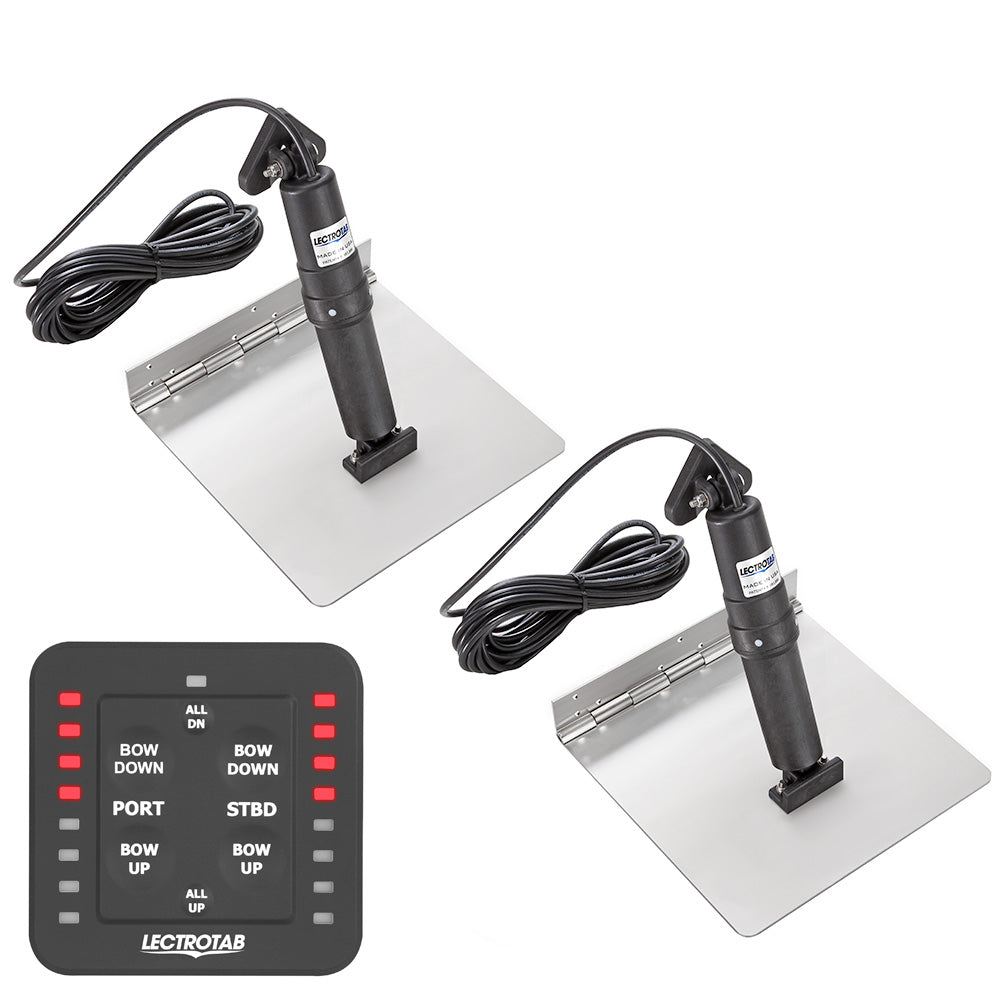

In the Box:

  • One (1) One-Touch Control
  • Two (2) Stainless Steel tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 2"H x 5"W x 6"L WT: 15.35 lbs

Owner's Manual (pdf)
Brochure (pdf)
