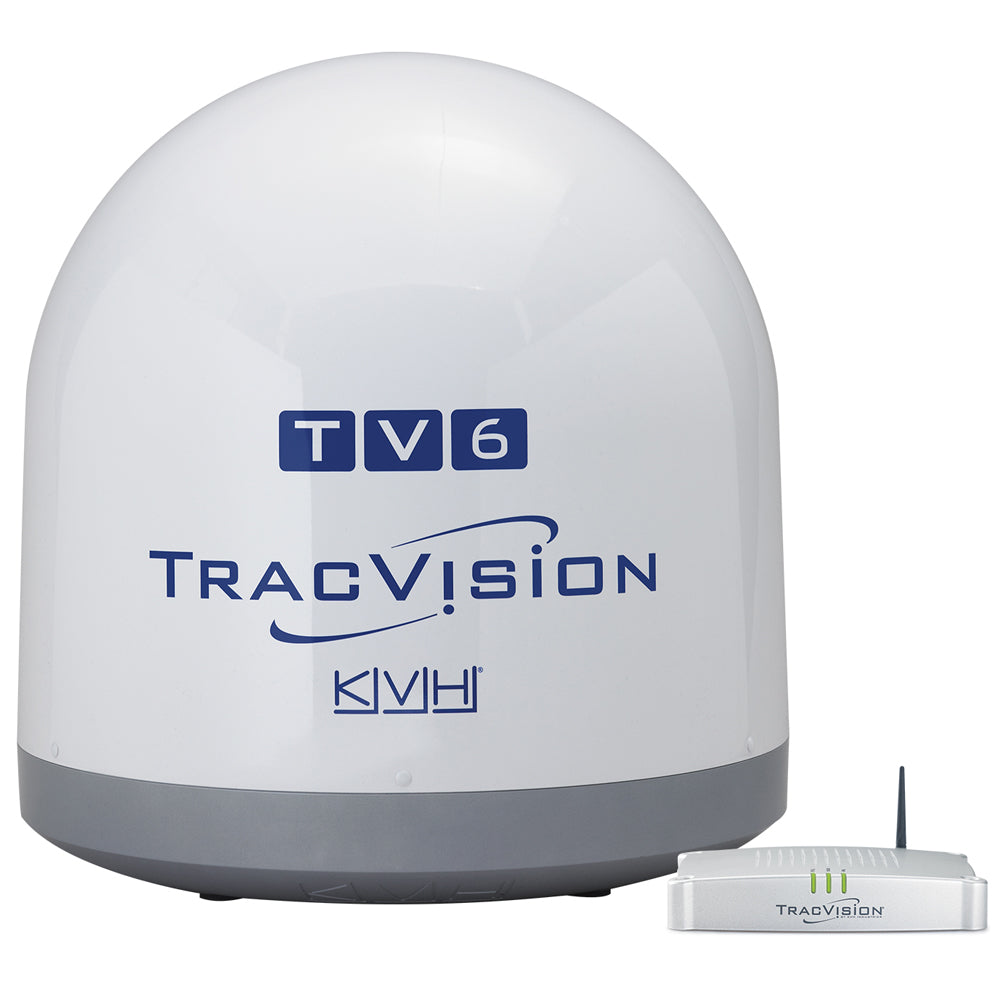

KVH TracVision TV6 - w/Circular LNB for North America [01-0369-07]

TracVision TV6

Enjoy Your Favorite Television Programming - Everywhere You Cruise

Advanced Technology from the Leader in Marine Satellite TV

KVH, the leader in marine satellite television for 20 years, has integrated the latest advancements into the TracVision TV6, a versatile system that supports DIRECTV® U.S., DIRECTV Latin America, DISH Network®, Bell TV, and circular and linear Ku-band services worldwide:

• TracVision TV-Hub, a sleek IP-enabled belowdecks unit with easy user interface that provides system information from any Wi-Fi mobile device or computer
• Exclusive RingFire™ antenna technology for stronger signals, wider geographic coverage, and better reception
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas

Highlights

• Ultra high-efficiency, 60cm (24") diameter antenna features proprietary RingFire technology for stronger signals, wider geographic coverage, and better reception

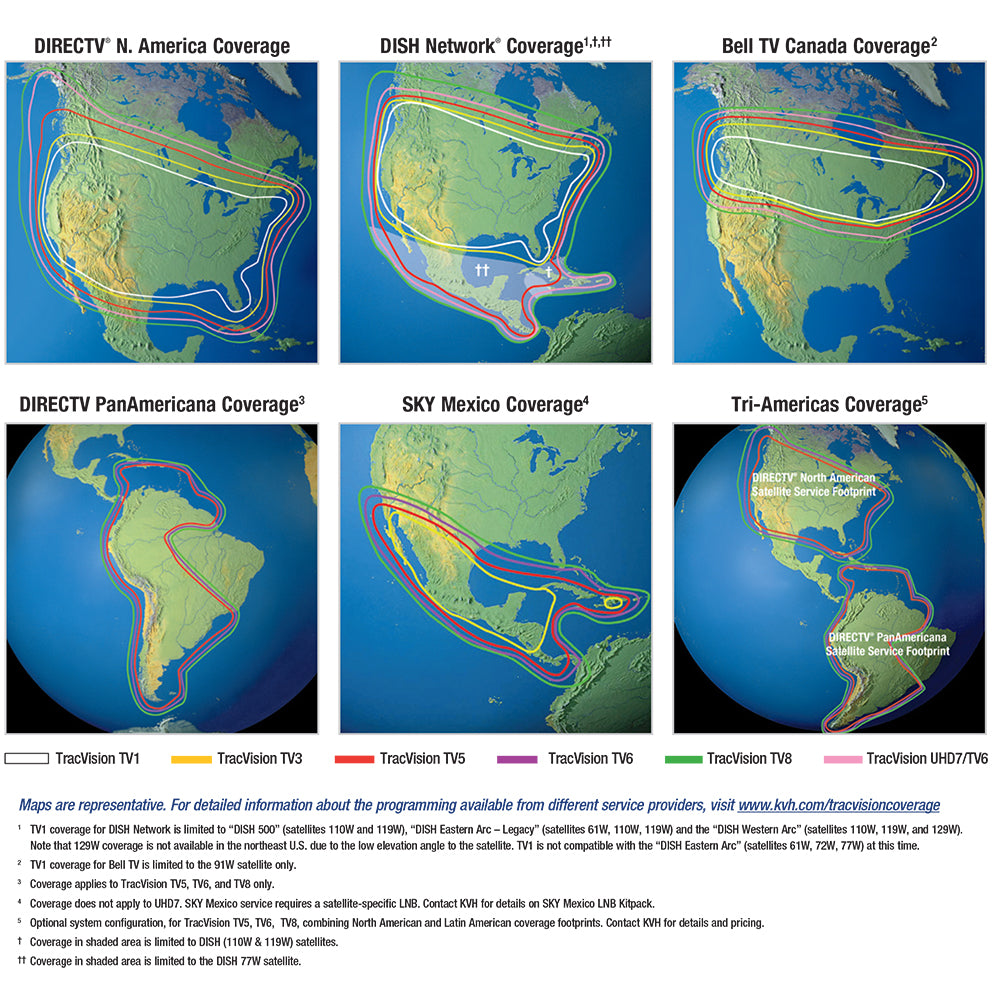

• Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide
• Supports multiple receiver installations
• Linear Universal Quad LNB configuration offers built-in GPS and autoskew
• Tri-Americas LNB option for seamless TV throughout the Americas
• Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
• HDTV compatible (Ku-band services only)
• Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to 8 DIRECTV receivers
• Single coaxial cable for power, data, and video enables easy installations and retrofits
• DVB-S2 compatible
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
• Built-in worldwide satellite library
• IP AutoSwitch option for multiple receiver installations - for simple auto-switching on Dish Pro and DiSEqC-compatible services
• World-class warranty coverage and support

Exclusive Technology

TracVision TV-Hub

The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit:

• IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
• Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use
• Built-in SWM-compatible technology supports DIRECTV programming
• Built-in DISH Pro output supports DISH Network and Bell TV service
• Built-in DiSEqC protocol supports linear TV services around the world
• Two output ports provide the flexibility to use legacy receivers and expand SWM capability
• Status indicators quickly convey information about antenna function and power
• 10-30 VDC input provides power to the TV-Hub, which in turn provides power to the antenna
• NMEA 0183/2000 input for heading and GPS enable fastest satellite acquisition

Specifications:

• Dome Weight (lbs): 55 lbs
• Service Coverage: DirecTV, Dish
• Voltage - Input Range (Volts): 10-30v
• Antenna Dish Diameter: 24
• Box Dimensions: 31"H x 35"W x 36"L WT: 65 lbs
• UPC: 028327011820
