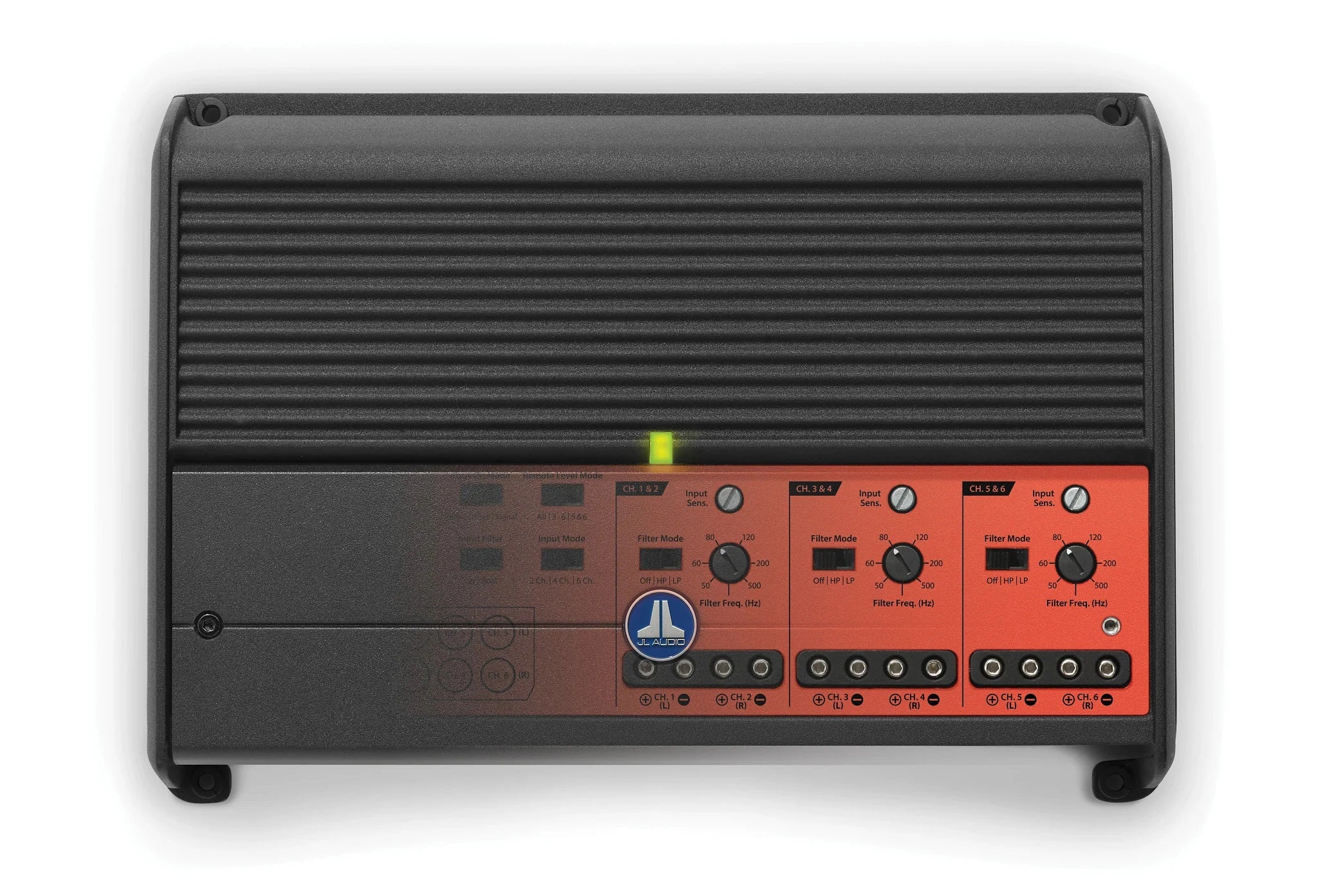

JL Audio XDM600/6-24V 6 Ch. Class D, Full-Range Car/Marine Amplifier, 600 W, for 24V Systems
Model: XDM600/6-24VFor 24V systems only: 6-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 6 @ 2 Ohm / 75 W x 6 @ 4 Ohm - 28.8V
The incredibly flexible XDM600/6-24V packs a serious full-range wallop and delivers a stunning 100 watts to each of its six channels into 2 ohms (28.8V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexDTM high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM600/6-24V is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
With the XDM600/6-24V, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75 W x 6 @ 4 ?, or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 ? for your front satellites and 75 W x 2 @ 4 ? for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2.
The XDM600/6-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 volt may result in damage to the product and will void the warranty.
Specifications| 75 W RMS x 6 | |
| @ 2 Ohms | 100 W RMS x 6 |
| Bridged @ 4 Ohms | 200 W RMS x 3 |
| Rated Continuous (RMS) Power @ 25 V | |
| @ 4 Ohm | 60 W RMS x 6 |
| @ 2 Ohms | 90 W RMS x 6 |
| bridged @ 4 Ohms | 180 W RMS x 3 |
| General Specifications | |
| Frequency Response | 12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ohm | >150 / 50 Hz |
| Damping Factor @ 2 Ohms | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuseTM) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Brand: JL Audio
UPC: 699440986885
Model Number: 010-03120-00
Weight: 14.35
