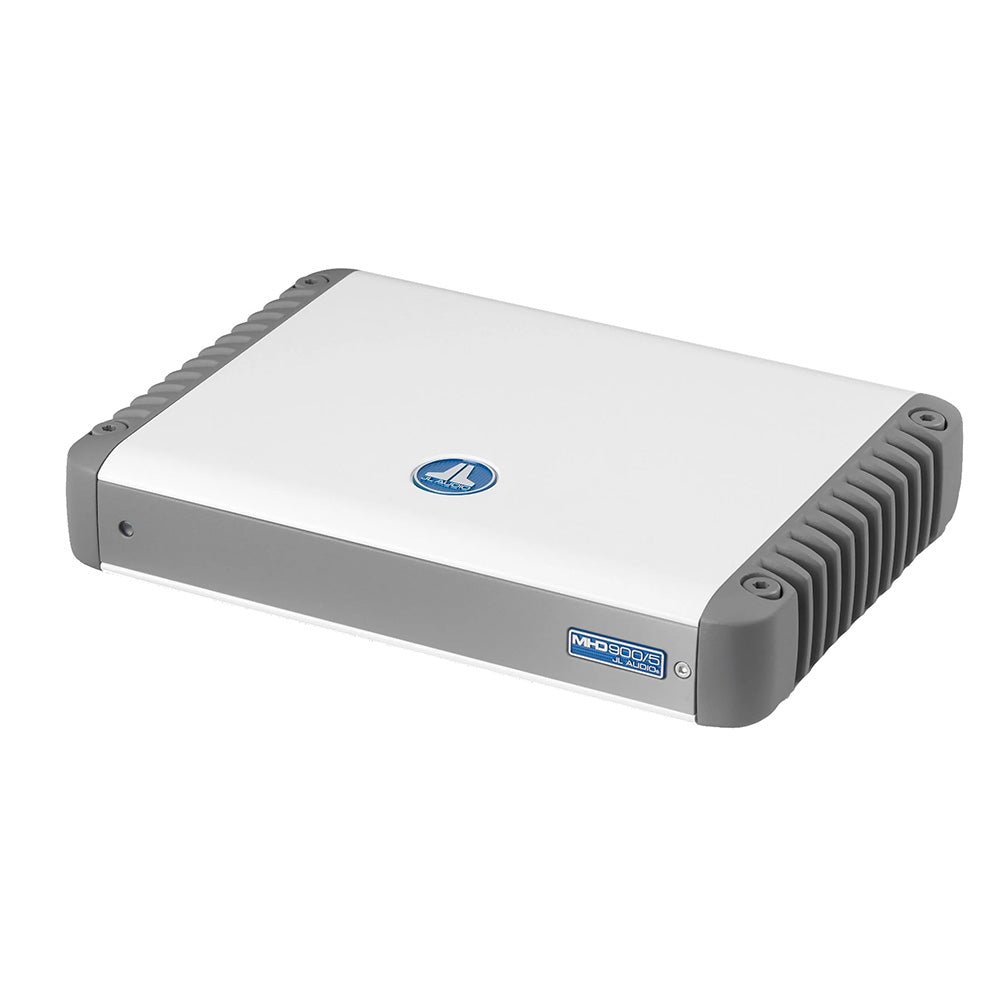

JL Audio MHD Series 900w 5 Channel 24v Full-Range Amplifier - MHD900/5-24v [010-03321-00]

MHD Series 900w 5 Channel 24v Full-Range Amplifier - MHD900/5-24v

For 24v Systems Only

100 W x 4 + 500 W x 1

ULTRACOMPACT AND ULTRAPOWERFUL

Combining our Single Cycle Control™ and R.I.P.S.™ power supply technologies, MHD amplifiers deliver world-class, full-range fidelity and high-power output from an incredibly small package.

Features

• High-fidelity Class-D design delivers superb sonics
• Intelligently optimized for all the power - all the time
• Full suite of studio-grade signal processing on board
• Unique design adjusts operation to avoid thermal events
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

Single Cycle Control

Ground breaking technology applies output correction more than 400,000 times per second to deliver exceptional audio quality with reduced current draw and heat.

R.I.P.S. Technology

Regulated, Intelligent Power Supply is a tightly controlled design that maintains full power output from 1.5 to 4 ohms per channel and at any supply voltage from 11 to 14.5 volts.

Studio-Grade Signal Processing

Selectable 12 dB/octave (Butterworth) or steep 24 dB/octave (Linkwitz-Riley) filters with calibrated potentiometer to best integrate with subwoofers and component systems.

Differential-Balanced Inputs

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

Advanced Rollback Protection

Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.

Built for the Elements

An all-aluminum, powder-coated housing with marine-grade hardware inhibits corrosion, and a watertight security cover protects all controls from the harshest of seasons.

Powerfully Neat

All MHD models share the same compact dimensions, making them far easier to place.

Realsink™ Chassis

The heat sink design requires no fans and permits stacking without losing cooling ability.

Designed To Fit

Removable power and speaker plugs aid installations in tight spaces.

In The Box

• MHD amplifier
• Power input plug
• Speaker connection plug(s)
• Four mounting feet
• 2.5 mm Allen wrench
• 4 mm Allen wrench
• Four machine screws
• JL Audio badge

Specifications

• Channels: 5
• Physical Dimensions (Height): 1.93"
• Physical Dimensions (Width): 10.74"
• Physical Dimensions (Depth): 7.85"
• Weight: 6.85 lbs
• Warranty: 3-Year
• Operating Voltage: 22-29 VDC

Audio

• Amplifier Class: Class D
• Rated Continuous (RMS) Power: Main: 100 W x 4/Sub: 500 x 1
• Fuse Rating: 30 A
• Recommended Fuse Types: AFS, AGU or MaxiFuse™
• Min. Copper Power/Ground Wire Gauge: 4 AWG wire

Specifications:

• Channels - Available: 5
• Watts: 900w
• Box Dimensions: 4"H x 10"W x 14"L WT: 8.7 lbs
• UPC: 699440982290
