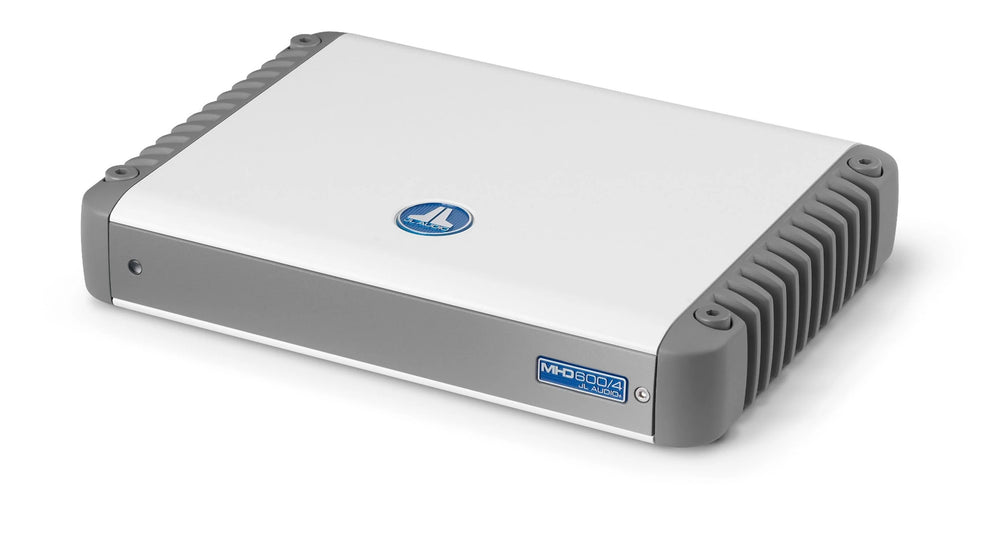

JL Audio MHD Marine Amplifier 4-Channel Full-Range 600 Watts 12v
98224
Model: MHD600/44-Channel Class D Marine Full-Range Amplifier, 150 W x 4 @ 1.5-4 ohms
This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
USA Limited Warranty: Two (2) years from the original date of purchase
Specifications| 150 W RMS x 4 | |
| @ 3 ohms | 150 W RMS x 4 |
| @ 2 ohms | 150 W RMS x 4 |
| @ 1.5 ohms | 150 W RMS x 4 |
| Bridged @ 8 ohms | 300 W RMS x 2 |
| Bridged @ 4 ohms | 300 W RMS x 2 |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 ohms | 150 W RMS x 4 |
| @ 3 ohms | 150 W RMS x 4 |
| @ 2 ohms | 150 W RMS x 4 |
| @ 1.5 ohms | 150 W RMS x 4 |
| Bridged @ 8 ohms | 300 W RMS x 2 |
| Bridged @ 4 ohms | 300 W RMS x 2 |
| General Specifications | |
| Frequency Response | 6 Hz - 30 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >300 / 50 Hz |
| Damping Factor @ 2 ohms | >150 / 50 Hz |
| THD+N @ Rated Power | <0.03% @ 4 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuseTM) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | 2 or All Channels |
| Channel Input Mode Switch | Yes (2/4 ch.) |
| Pass-Through Preamp Output | Buffered |
| Source Channel Selection for PreOuts | Yes |
| Physical Specifications | |
| Height | 1.93 in / 49 mm |
| Width | 10.74 in / 273 mm |
| Depth | 7.85 in / 199 mm |
Brand: JL Audio
UPC: 699440982245
Model Number: 010-03319-00
Weight: 8.4
