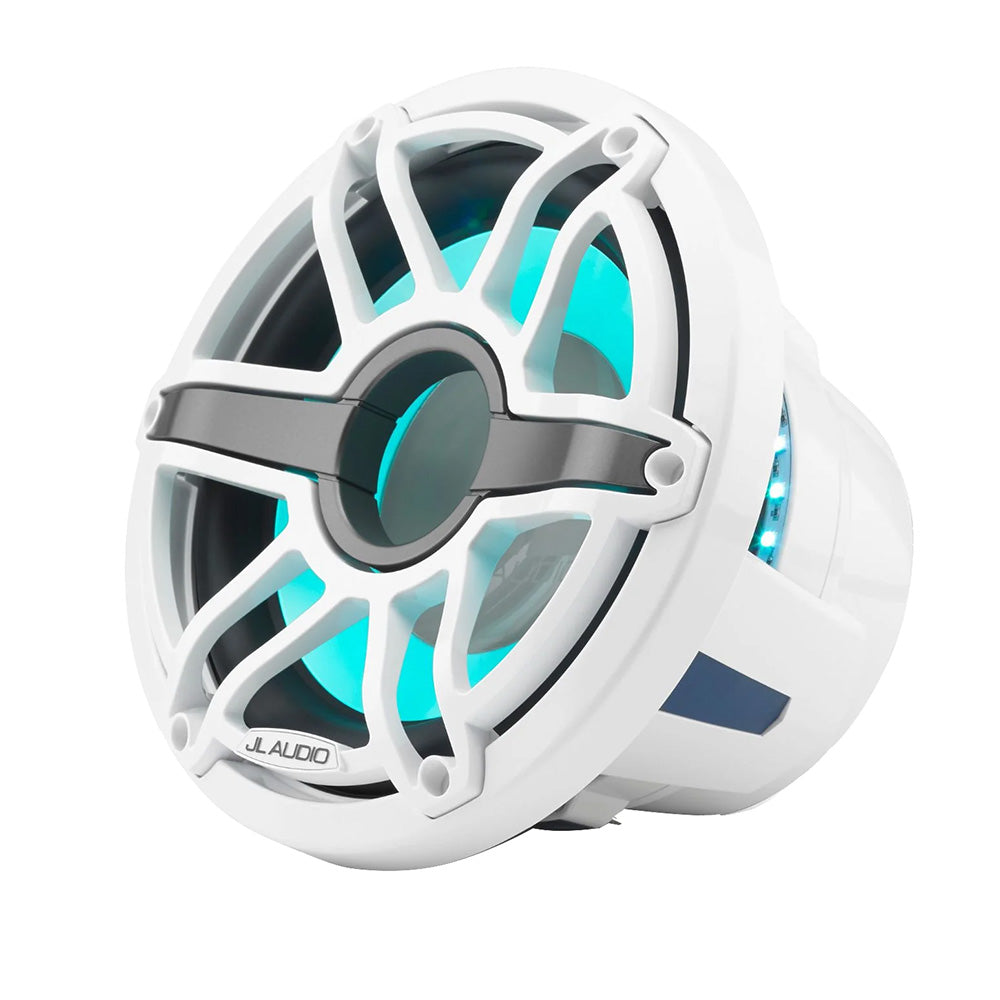

JL Audio M6 10" Marine Infinite-Baffle Subwoofer w/Gloss White Sport Grille Transflective LED Lighting - M6-10IB-S-GwGw-i-4 [010-03085-00]

M6 10" Marine Infinite-Baffle Subwoofer with Gloss White Sport Grille & Transflective™ LED Lighting - M6-10IB-S-GwGw-i-4

MAXIMUM PERFORMANCE

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

Features

• Delivers powerful deep bass in open-air applications
• Grille and trim ring are easily removable for painting
• Transflective™ RGB LED lighting
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

World-Class Performance

This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

Model Specific

Optimized to perform in compact enclosures

Powerfully Efficient

M6 marine subwoofers are designed to benefit from operation with quality amplification.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Transflective™ RGB LED Lighting

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

In The Box

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers

Specifications

• Size: 10"
• Color: White Sport
• Physical Dimensions (Diameter): 10.75"
• Physical Dimensions (Depth): 7.56"
• Weight: 12.60 lbs
• Speaker Type: Infinite Baffle
• Continuous Power Handling (RMS): 250w
• Sensitivity (SPL @ 1w/1m): 86.1 dB
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power (RMS): 75-250 w
• LED Lighting: Yes - Transflective™
• LED Supply Voltage: 10-14.4 VDC
• LED Loat Current @ 14.4 VDC (Max): 594 mA
• Cone Material: Injection-molded, mica-filled polypropylene
• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors
• LED Connection: Flying Lead with 4-conductor 20 AWG wire

Mounting Dimensions

• Mounting Depth Clearance: 5.90"
• Frontal Grille Protrusion: 1.66"
• Mounting Hole: 8.875"
• Bolt Hole Circle: 9.70"

Specifications:

• Cutout Size: 8.875"
• QTY: Single
• Watts RMS: 250w
• Size: 10"
• Box Dimensions: 9"H x 11"W x 12"L WT: 14.7 lbs
• UPC: 699440936361
