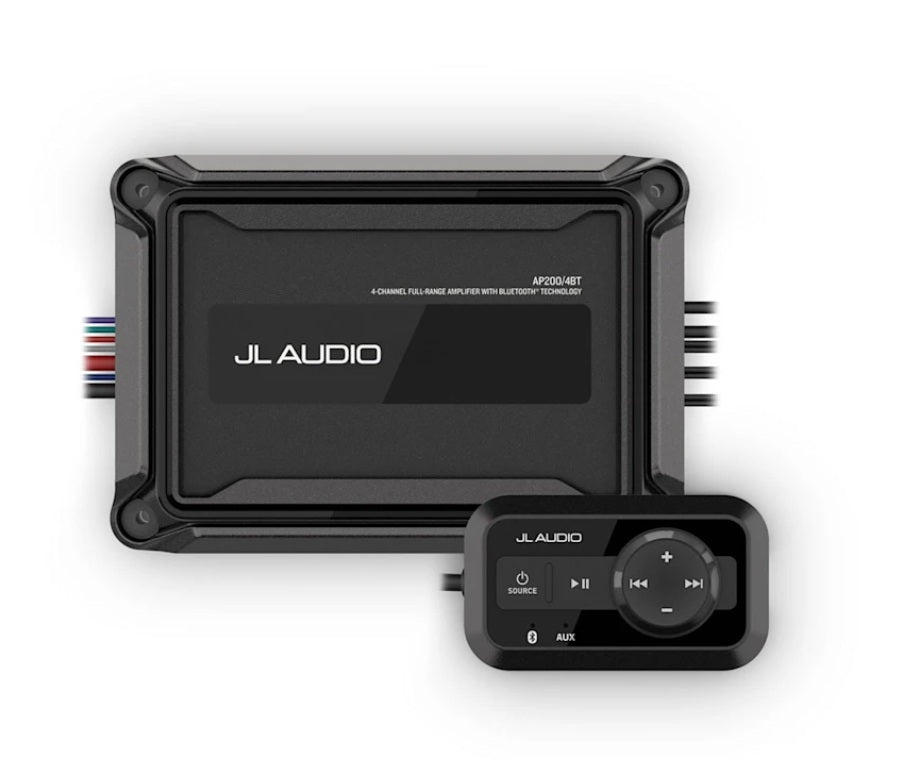

JL Audio AP200/BT Amplifier with Bluetooth and Remote
Model: 010-03431-00POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.
Specifications| General | |
| Channels | 4 Channel |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 7.28" (185 mm) |
| Physical dimensions (Depth) | 4.90" (125 mm) |
| Operating voltage | 9-16 VDC |
| Water and dust rating | IP67 |
| Operating temperature range | 4° to 149° F (-20° to 65° C) |
| Warranty | 3 years |
| Audio | |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) | 40 W x 4/100 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) | 50 W x 4 |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Greater than 70 dB |
| Frequency response (+0, -1dB) | 20 Hz-20 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Current consumption (Standby) | Less than 1mA |
| Current consumption (Idle) | Less than 700-750mA |
| Fuse rating | 35A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |
Brand: JL Audio
UPC: 729218924549
Model Number: 010-03431-00
Weight: 4.8
