Garmin P66 600W Transom Mount 50/200kHz - 8 Pin [010-10192-21]

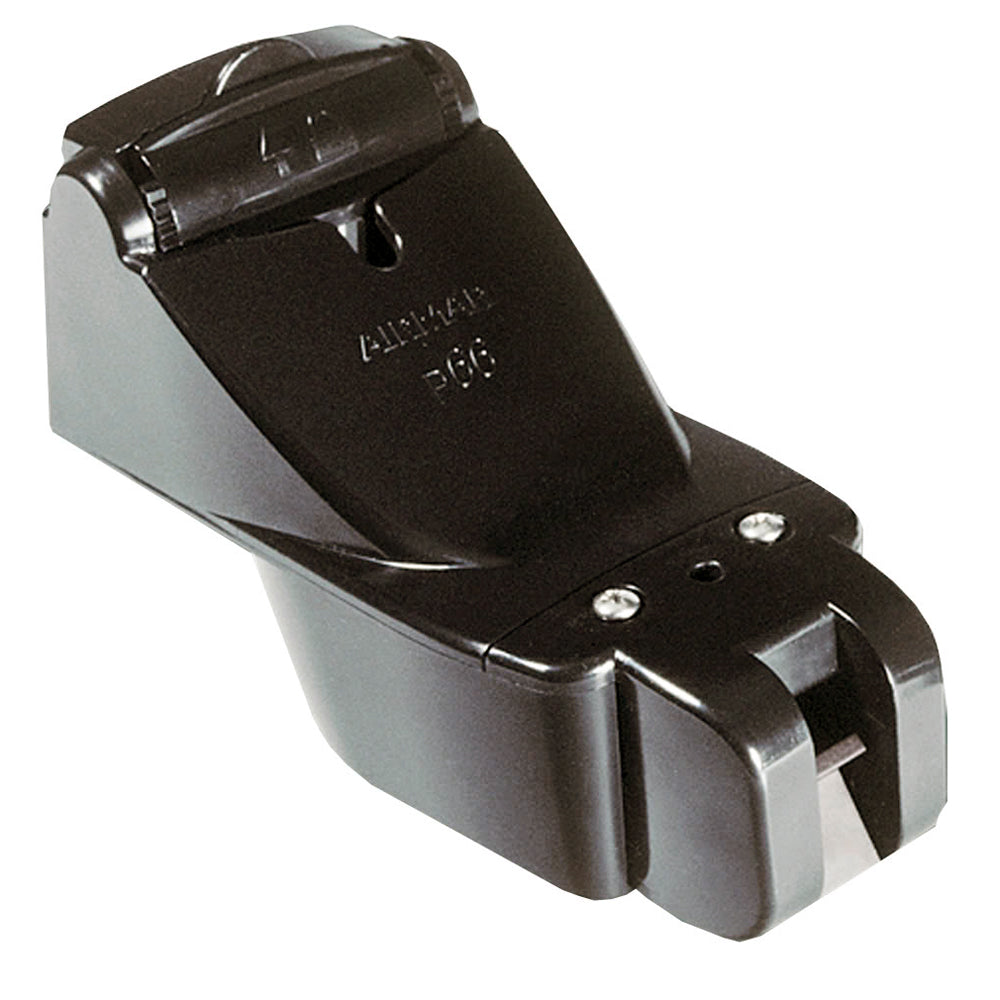

Airmar P66 200/50kHz Plastic Transom Mount Transducer (8-pin)
010-10192-21

This plastic transducer is the only offshore transom mount to provide depth, speed and temperature in 1 package.

The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 11 degrees; and mounts on a 2 to 20 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Speed Included: Yes
• Pins: 8
• Mounting Style: Transom
• Cable Length (Feet): 25'
• Chirp: No
• Imaging: Standard
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 10"L WT: 2.35 lbs
• UPC: 801769000276
