Garmin ECHOMAP UHD2 Keyed 5" cv Ice Fishing Bundle w/ECHOMAP UHD2 53cv Dual Beam-IF Transducer [010-02590-35]

ECHOMAP™ UHD2 Keyed 5" cv Ice Fishing Bundle with ECHOMAP™ UHD2 53cv & Dual Beam-IF Transducer

Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

Features:

• Bright 5 in. sunlight-readable display
• Included dual beam-IF transducer
• Built-in flasher
• Garmin Navionics+™ maps with 23,000+ lakes
• Rugged, portable carrying case

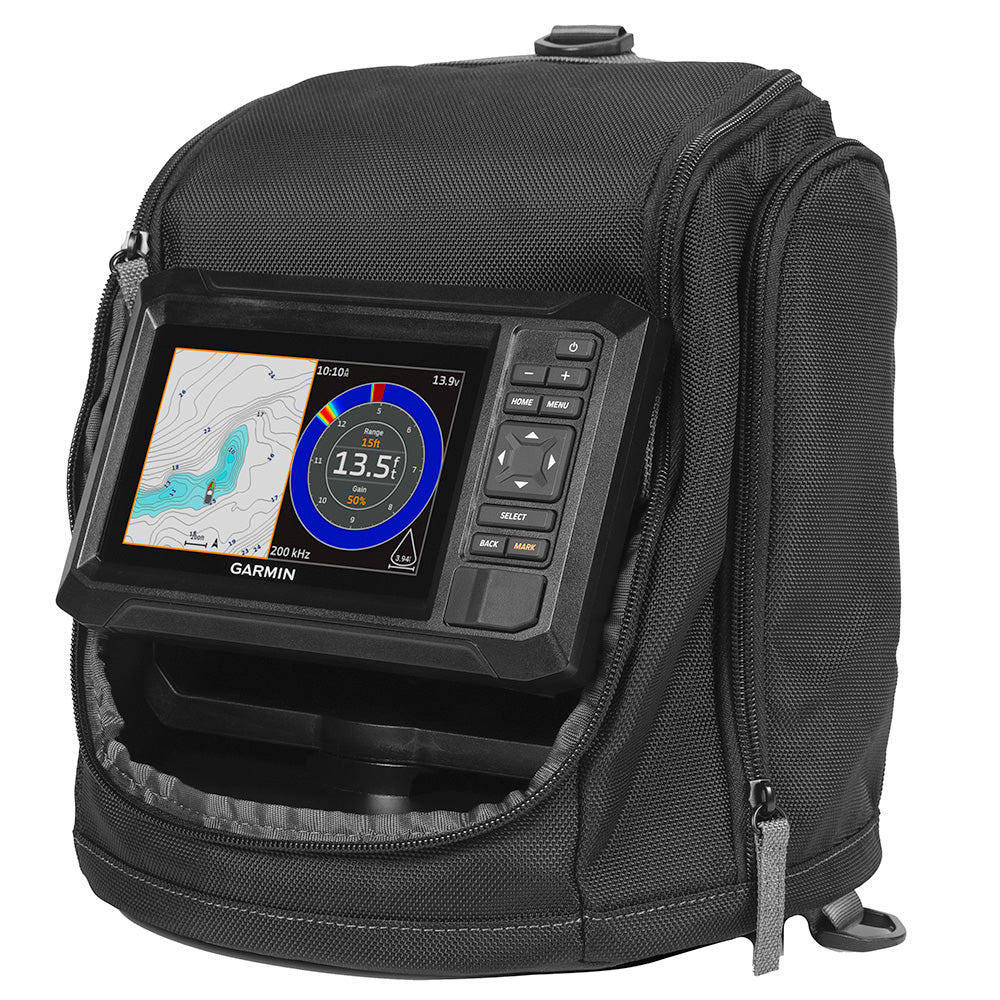

ECHOMAP UHD2 Combo

This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.

Ice Fishing Transducer

This bundle includes a high wide dual beam-IF ice fishing transducer with selectable beamwidth (either 15 or 45 degrees) and provides crisp, clear fish arches with excellent target separation.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Supports Scanning Sonar

The 5-inch ECHOMAP UHD2 also supports ClearVü™ scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).

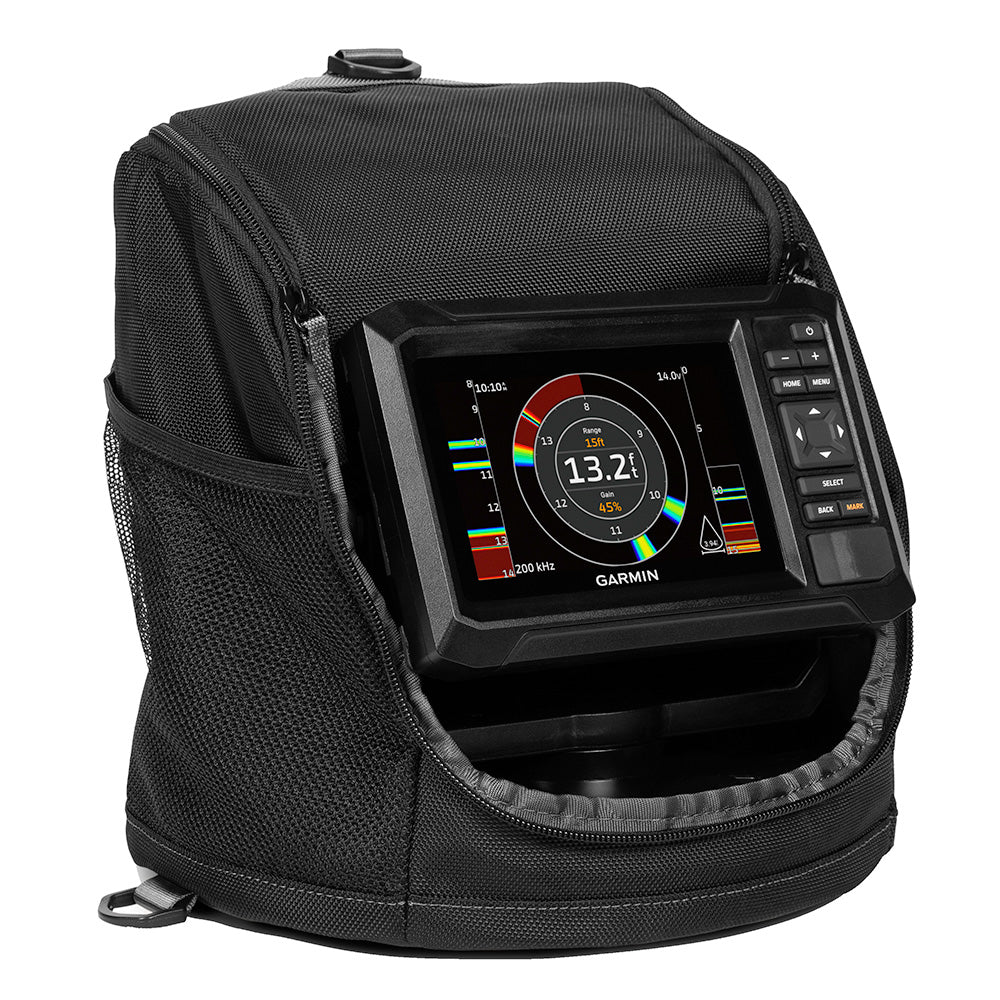

Carrying Case

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

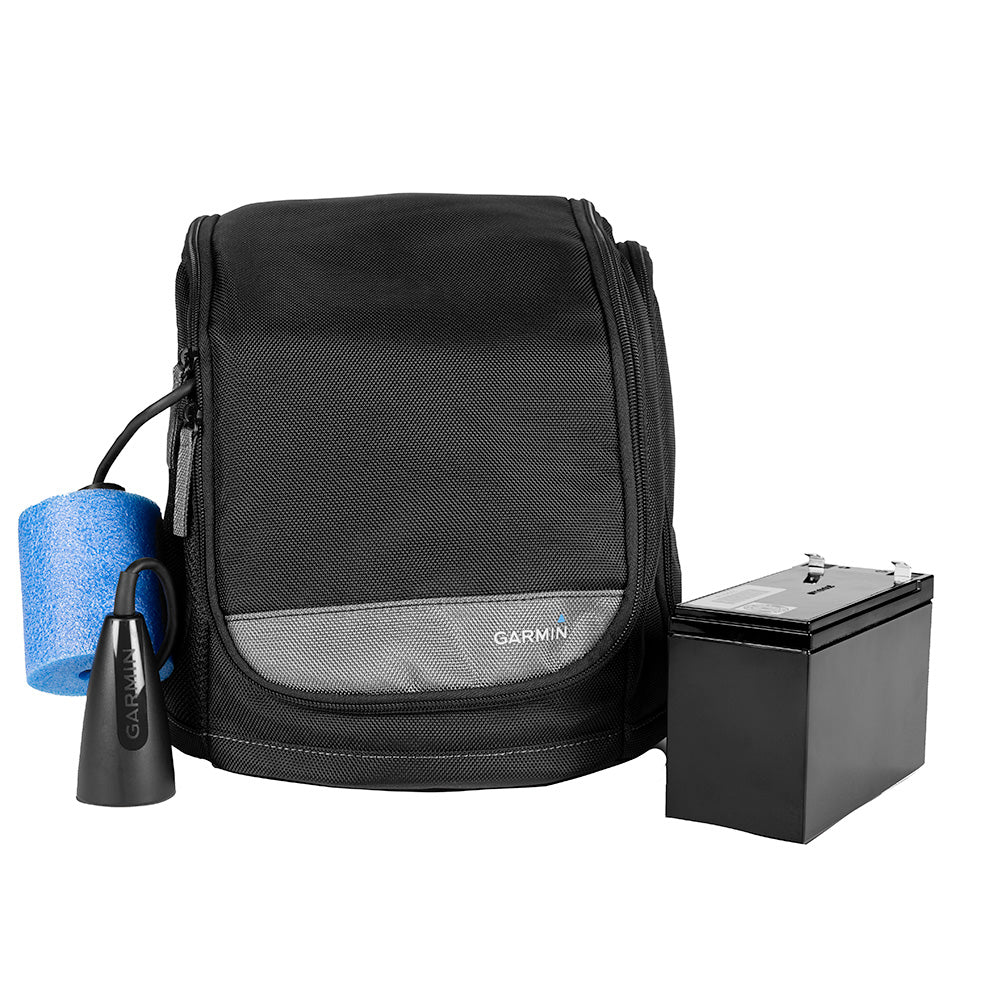

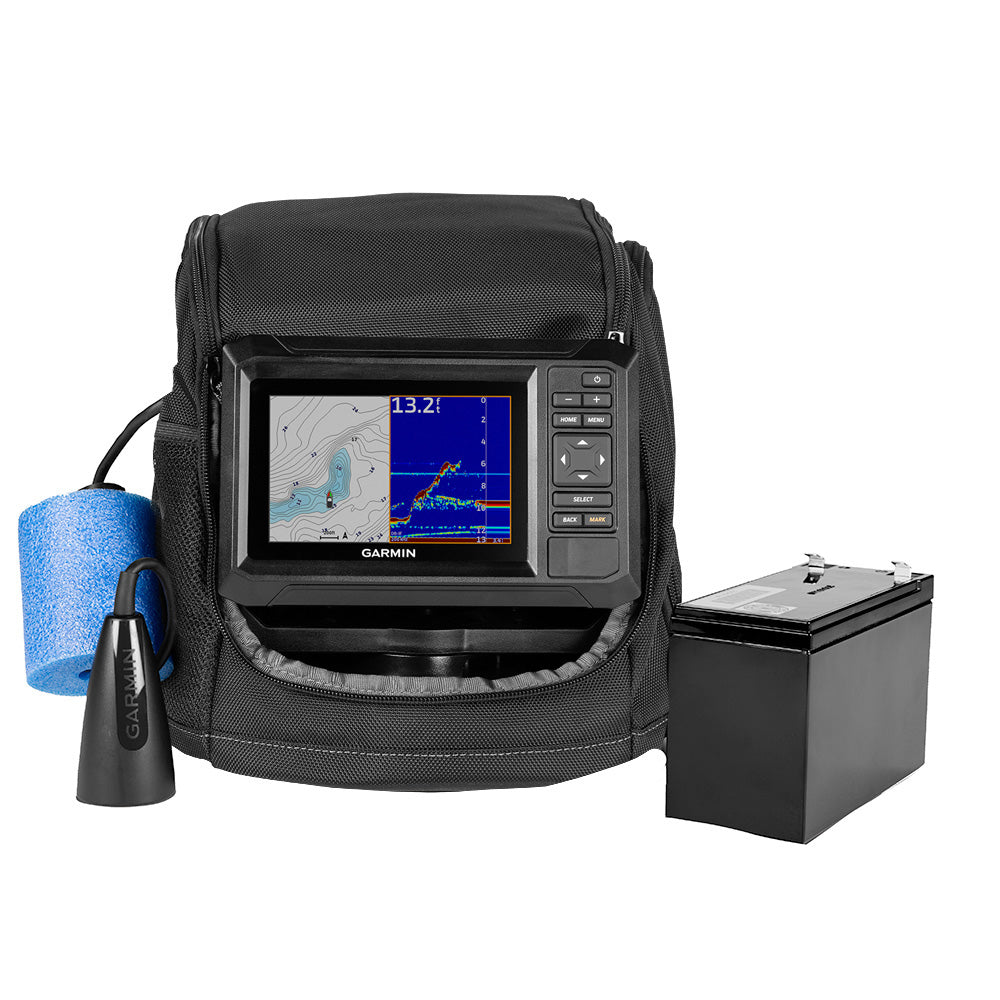

In the Box:

• ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
• Dual Beam-IF transducer
• Tilt/swivel mount
• Portable bag
• Base/handle
• Foam float
• Power cable
• Rechargeable battery
• Battery charger
• Documentation

General Specifications:

• Dimensions: 7.4 x 4.8 x 2.4 in. / 18.8 x 12.2 x 6.2 cm
• Input: Keyed
• Display Size: 4.3 x 2.6 in. / 10.9 x 6.6 cm
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA, IPS
• Weight: 9.5 lbs / 4.3 kg
• Waterproof: IPX7

Maps & Memory:

• Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Ice Fishing Details:

• Battery Type, Size: SLA, 7Ah
• Bag Size: Small
• Included Transducer: DB-IF
• Transducer Holding Feature: Foam float

Sensors:

• Has Built-in Receiver: Yes
• Receiver: 5 Hz
• NMEA 2000 Compatible: Yes
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Supports Waas: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Garmin Navionics+ (Inland): Yes (see Additional)
• Optional Map Support:
• Garmin Navionics+: Yes
• Garmin Navionics+ VIision+™: Yes
• TOPO: Yes
• Standrad Mapping: Yes
• Garmin Quickdraw Tours: Yes

Chartplotter Features:

• ActiveCaptain® Compatable: Yes

Electrical Features:

• Power Input: 9 to 18 Vdc

Sonar Features & Specifications:

• Displays Sonar: Yes
• Power Output: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü™: Built-in 260/455/800/1000/1200 kHz

Connections:

• 4-Pin Transducer Ports: 1
• Garmin Wi-Fi Network (Local Connection): Yes

Additional:

• Garmin Navionics+ Inland & Coastal: 55cv Canada
• Garmin Navionics + (Inland): 53cv U.S. Lakes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Included Transducer: DB-IF
• Screen Size: 5"
• Transducer Included: Yes
