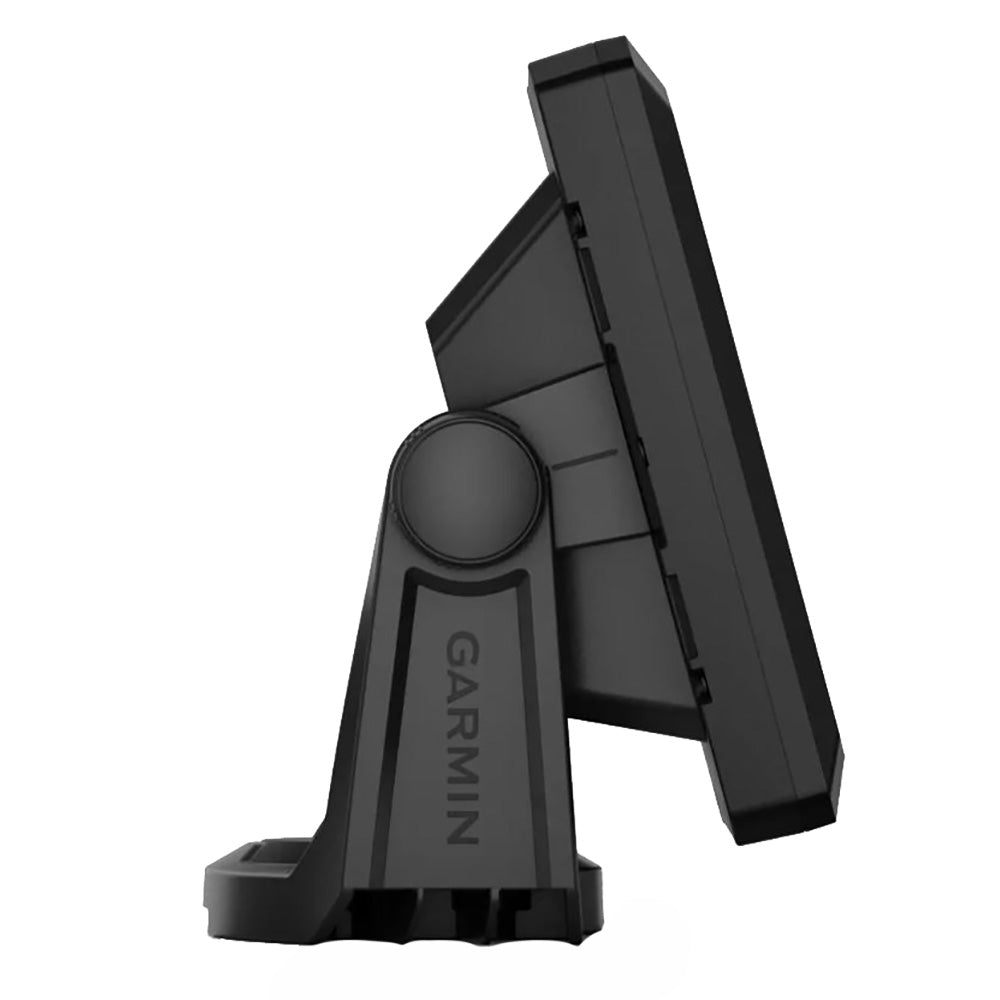

Garmin ECHOMAP UHD2 72cv w/o Transducer [010-02593-00]

ECHOMAP™ UHD2 72cv without Transducer

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.

Features:

• 7” display size
• The bright keyed display is made for convenience
• Get double the views¹ with Garmin CHIRP traditional and ClearVü scanning sonars
• What’s under the water looks even better with high-contrast vivid color palettes
• Wi-Fi connectivity² between compatible chartplotters makes it easy to share info
• Enjoy No. 1 in mapping with Garmin’s LakeVü g3 and BlueChart® maps with Navionics® data

Sonar Support

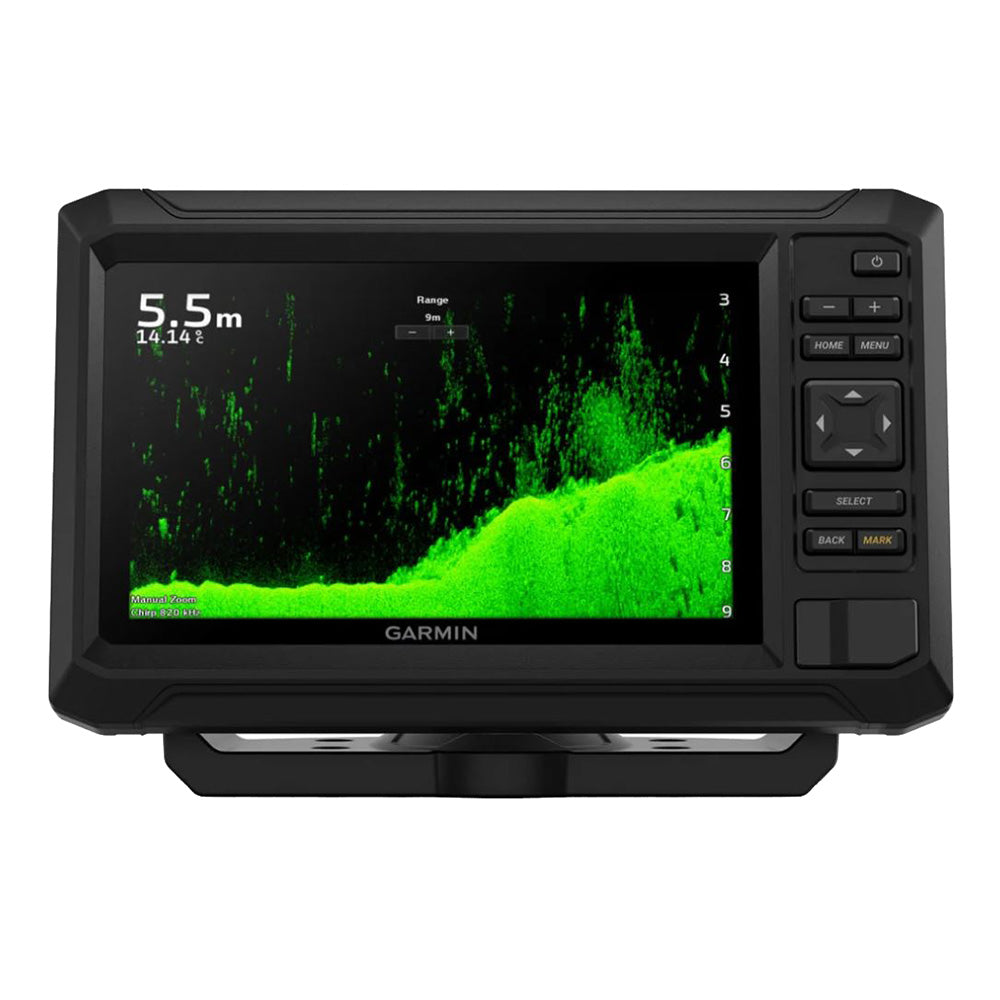

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

Vivid Color Palettes

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bundle the Transducer

The ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.

Preloaded Charts

Know the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.

Wireless Networking

If users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.

ActiveCaptain® App

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data, and more.

In the Box:

• ECHOMAP™ UHD2 72cv
• Power/data cable
• Tilt mount
• Flush mount
• Hardware
• Documentation

Specifications:

General:

• Dimension: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
• Weight: 1.5 lbs (0.7 kg)
• Waterproof: IPX7
• Display Type: WVGA, TN
• Display Size: 6.1" x 3.4" (15.5 x 8.7 cm)
• Display Resolution: 800 x 480 pixels
• Mounting Options: Bail or flush
• Input: Keyed

Maps & Memory:

• Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
• Waypoints: 5,000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• Galileo: Yes
• Has Built-In Receiver: Yes
• Receiver: 5 Hz
• Supports WAAS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Garmin Navionics+ (Coastal): Yes
• Garmin Navionics+ (Inland): Yes
• Tide Tables: Yes

Optional Map Support:

• BlueChart g3: Yes
• BlueChart g3 Vision: Yes
• LakeVü g3: Yes
• LakeVü g3 Ultra: Yes
• Garmin Navionics+: Yes
• Garmin Navionics Vision+: Yes
• TOPO U.S. 100K: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• ActiveCaptain® Compatible: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 1.0 A
• Maximum Current Draw at 12 VDC: 1.5 A
• Maximum Power Usage at 10 VDC: 18 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz

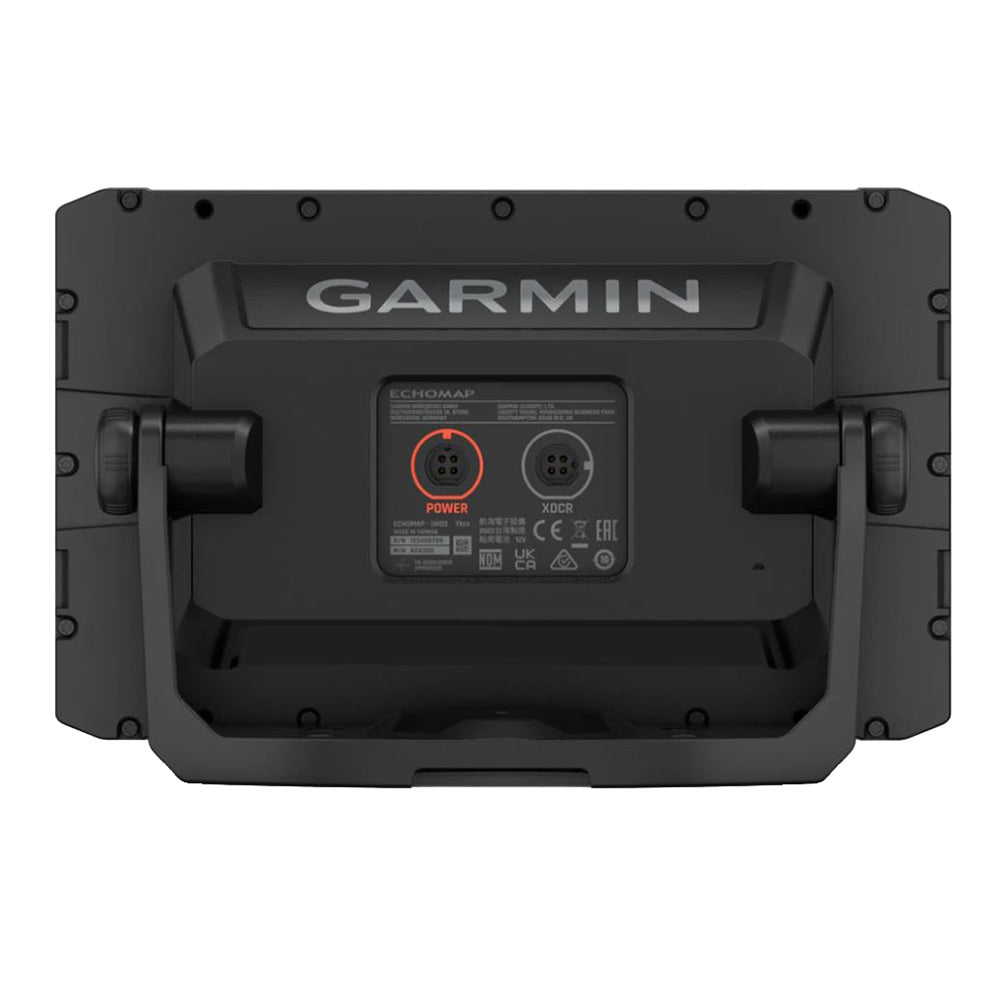

Connections:

• 4-Pin Transducer Ports: 1
• Garmin Wi-Fi Network (Local Connection): Yes

¹Transducer required

²Requires the ActiveCaptain app on a compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters

Specifications:

• Included Transducer: GT20-TM transducer
• Screen Size: 7"
• Touchscreen: No
• Transducer Included: Yes
• Box Dimensions: 7"H x 8"W x 12"L WT: 3.5 lbs
• UPC: 753759284640
