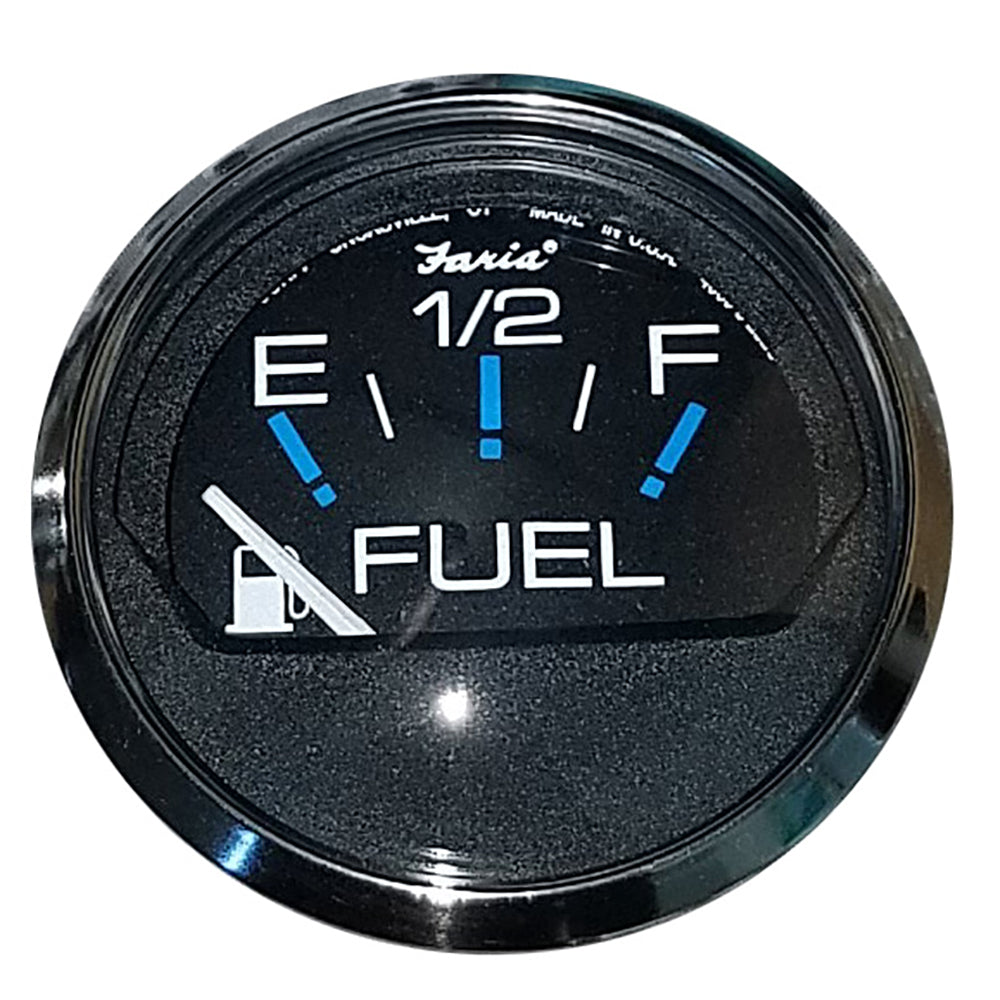

Faria Chesapeake Black 2" Fuel Level Gauge (E-1/2-F) [13701]

Chesapeake Black 2" Fuel Level Gauge (E-1/2-F)

Perimeter-lighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• Perimeter lighted back light
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N GP9368

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Gauge Type: Fuel Level
• Series: Chesapeake Black
• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 2"
• Box Set: No
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
• UPC: 759266137011
