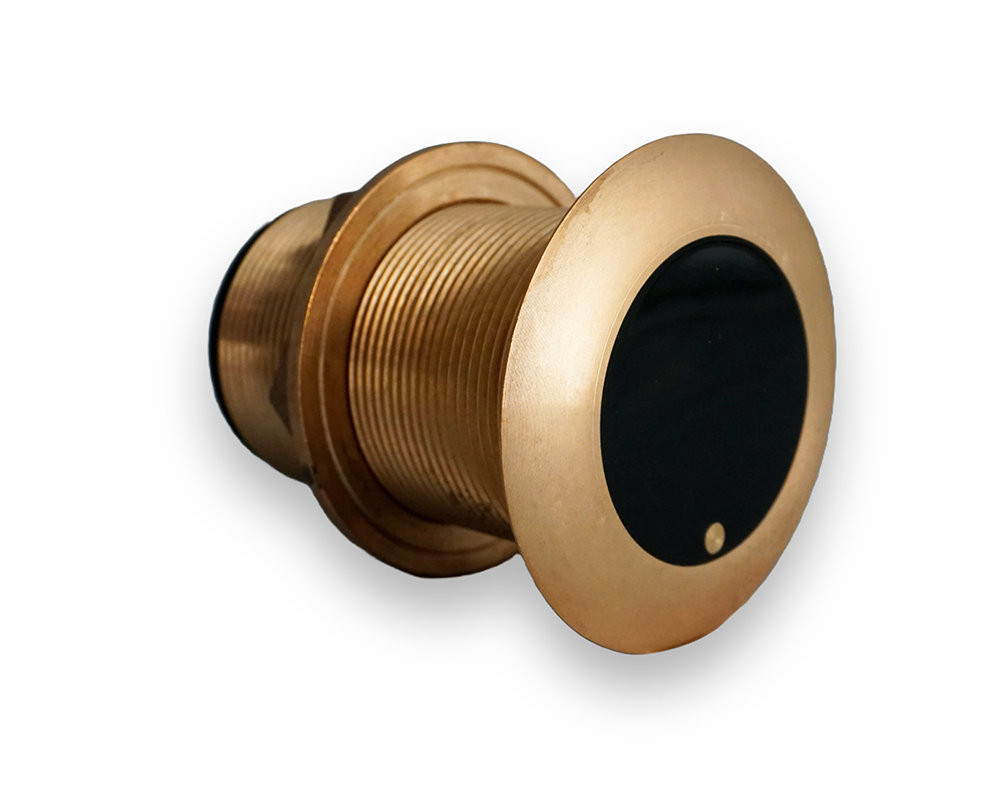

BRZ LP TH CW DUAL 50/200 600W 12TLT

Thru-Hull Mount With 12 Degree Tilted Element; Low Profile; 1200 Foot Maximum Depth At 50 kHz/ 700 Foot Maximum Depth At 200 kHz; 50/ 200 kHz Dual Frequency; CW Sonar Type; 600 Watt Power; 27 Foot Cable; Bronze; 42 Degree/ 11 Degree Beamwidth At -3 dB; 8 To 15 Degree Deadrise; 2.38 Inch Hole Diameter; 3.6 Inch Diameter x 4.33 Inch Height Dimension; For Depth And Temperature; With Echonautics Connector

Brand: SI-TEX

UPC: 010407340241

Model Number: BT70D600CW-12

Weight: 3.6000

Length: 4.3300

Height: 3.4000

Width: 3.6000
