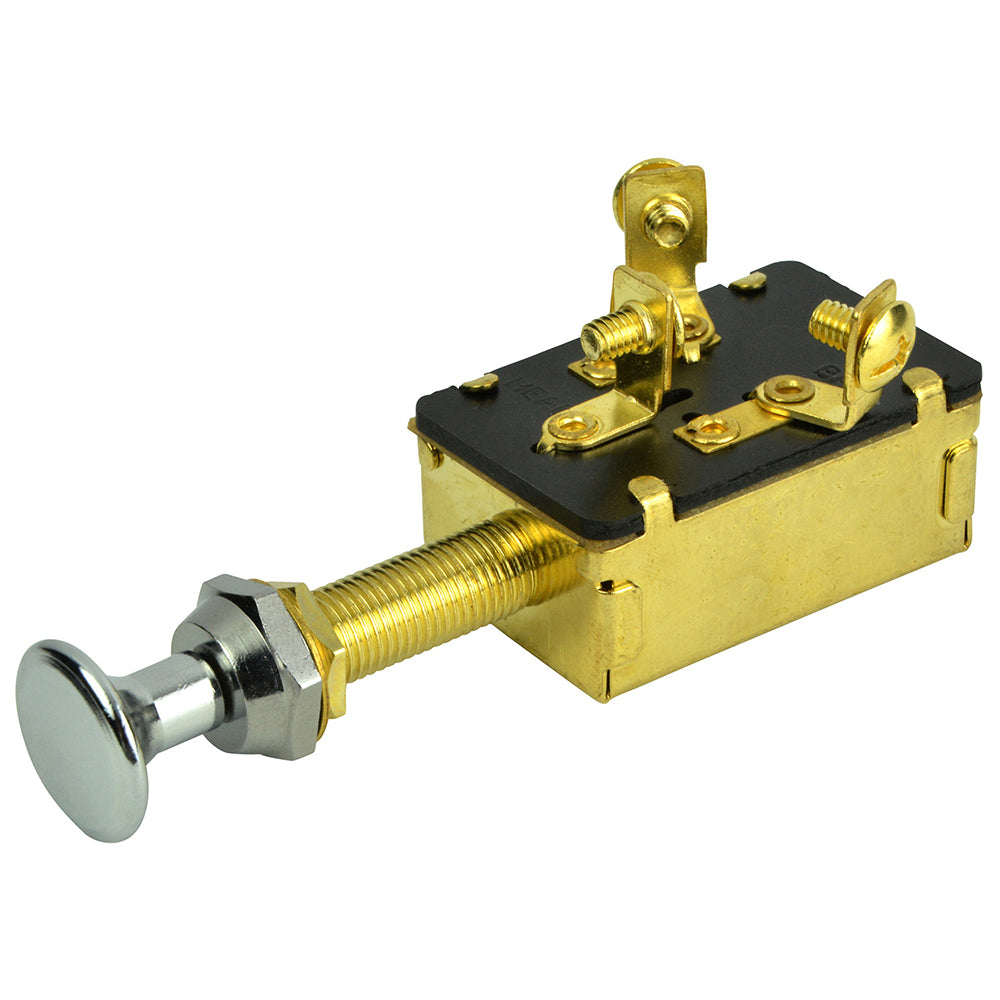

BEP 3-Position SPDT Push-Pull Switch - OFF/ON1/ON1 2 [1001301]

3-Position SPDT Push-Pull Switch - OFF/ON1/ON1 & 2

Single pole, double throw switch turns on position 1 or position 1 and 2.

Features:

• Heavy-duty, noncorrosive construction with moisture-repellent insulators
• Brass case, stem, terminals and mounting hardware
• All knobs are screw-on type
• Nominal voltage is 6-36V DC.
• Rated for 10A at 12V DC
• #8-36 screw terminals
• Fits panels up to 1" thick
• Same as Cole Hersee part number M-476

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Throw/Pole: SPDT
• Action: ON-ON-OFF
• Box Dimensions: 2"H x 3"W x 6"L WT: 0.25 lbs
• UPC: 870216045955
