Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230]

Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230]

Size 2 35mm Plain Bearing Pulley Block Double with SwivelThe Barton Size 2 Plain Bearing Block has...
Vendor: Barton Marine
SKU: 111764
Availability: In stock
Product type: Blocks
$42.02
$46.69
$42.02
Subtotal: $42.02
Description
Description
x

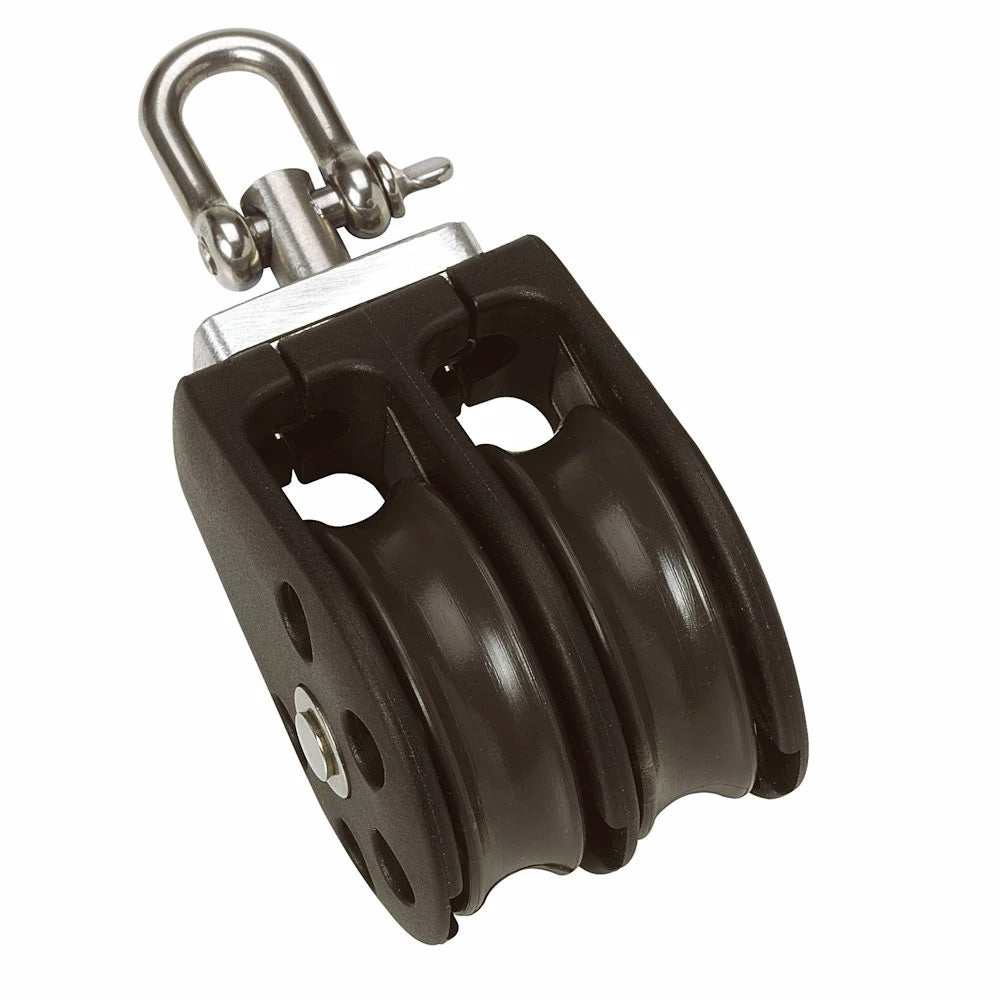

Size 2 35mm Plain Bearing Pulley Block Double with Swivel

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

  • Weight: 87g
  • Dimensions: 83 × 39 × 38 mm
  • Size: 2 (35MM)
  • Block Type: Fixed Eye
  • No. of Sheaves: Double
  • Bearing Type: Plain
  • Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
  • Max rope diameter: 8mm (5/16")
  • SWL: 370kg (815lbs)
  • Break load: 740kg (1630lbs)
  • Max rolling load (ball bearing blocks): 260kg (573lbs)

Quick Guide (pdf)
