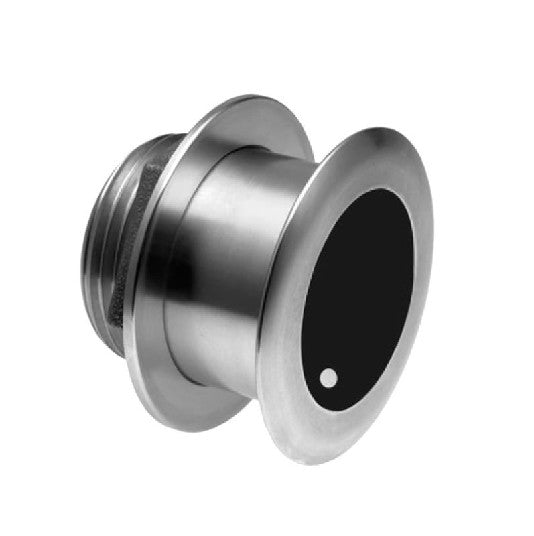

Airmar SS175C-12-M 12d Tilt Medium CHIRP with Garmin 8-Pin

Airmar SS175C-12-M 12d Tilt

Medium CHIRP with Garmin 8-Pin

• Depth and water-temperature sensor
• 1 kW with a maximum depth of 457 m (1500 feet)
• Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth
• 50 kHz of total bandwidth from one transducer
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation
• Recommended boat size: Up to 11 m (36 feet)
• Stainless steel housing is compatible with all hull types and materials
• Also available in a bronze housing (B175M)
• Exclusive Xducer ID(R) technology

Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.

Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Brand: Airmar

Model Number: SS175C-12-M-8G

Weight: 12
