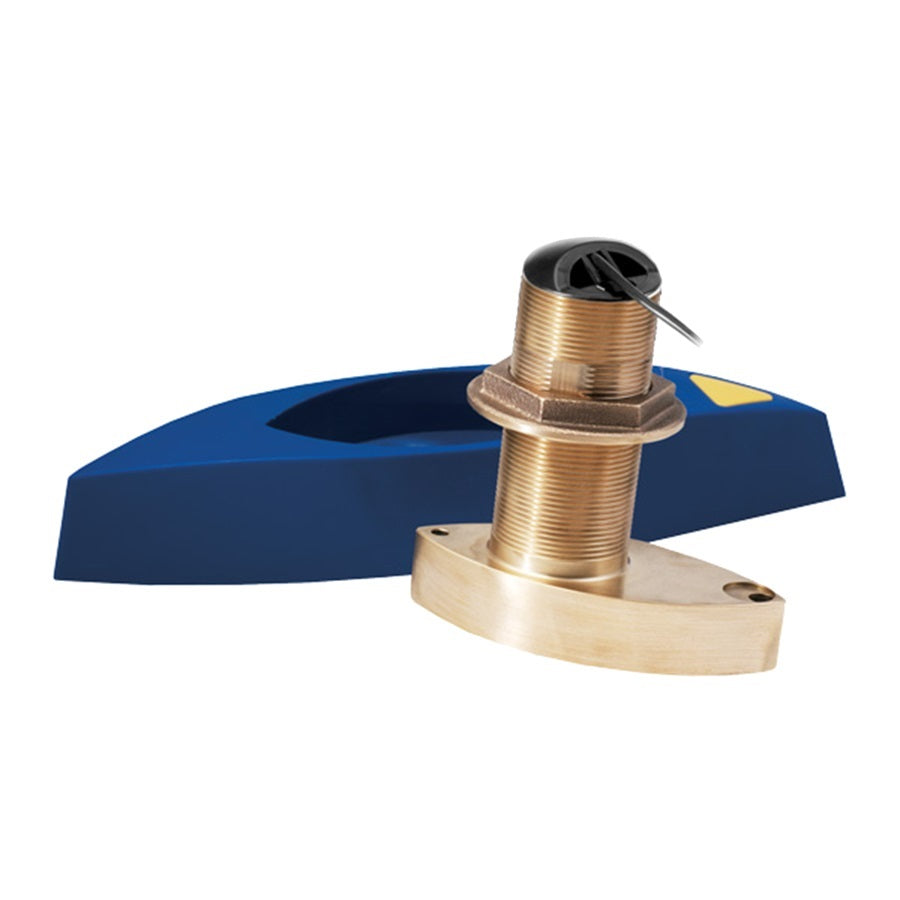

Airmar B785C Bronze Transducer Medium CHIRP With Navico 9-Pin

Airmar B785C Triducer Medium CHIRP with Navico 9-Pin Mix-N-Match Cable

• Depth & fast-responDepth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24 deg to 16 deg beamwidth
• Maximum depth of 274 m (900 feet)
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID(R) technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B785C-M-MM Triducer
• Fairing Block
• Anti-rotation Bolt
• MMC-9N cable
"

Brand: Airmar

Model Number: B785C-M-9N

Weight: 9
