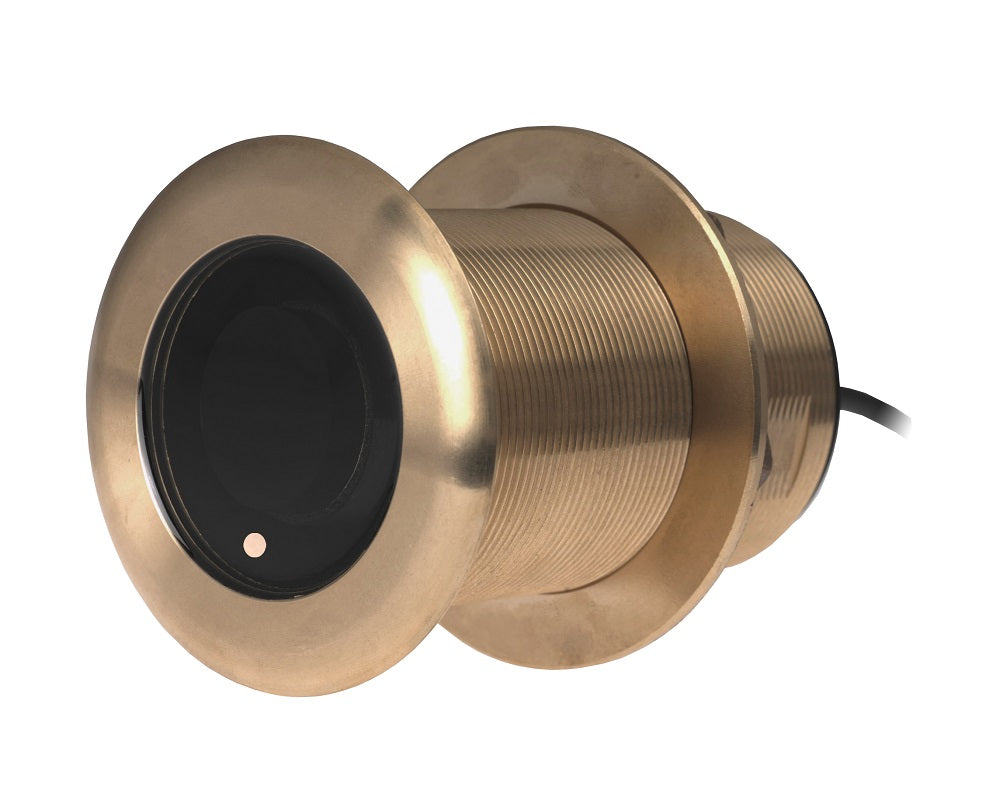

Airmar B75C-12-M 12d Tilt Medium CHIRP Raymarine 11-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Brand: Airmar

Model Number: B75C-12-M-11R

Weight: 6.95
