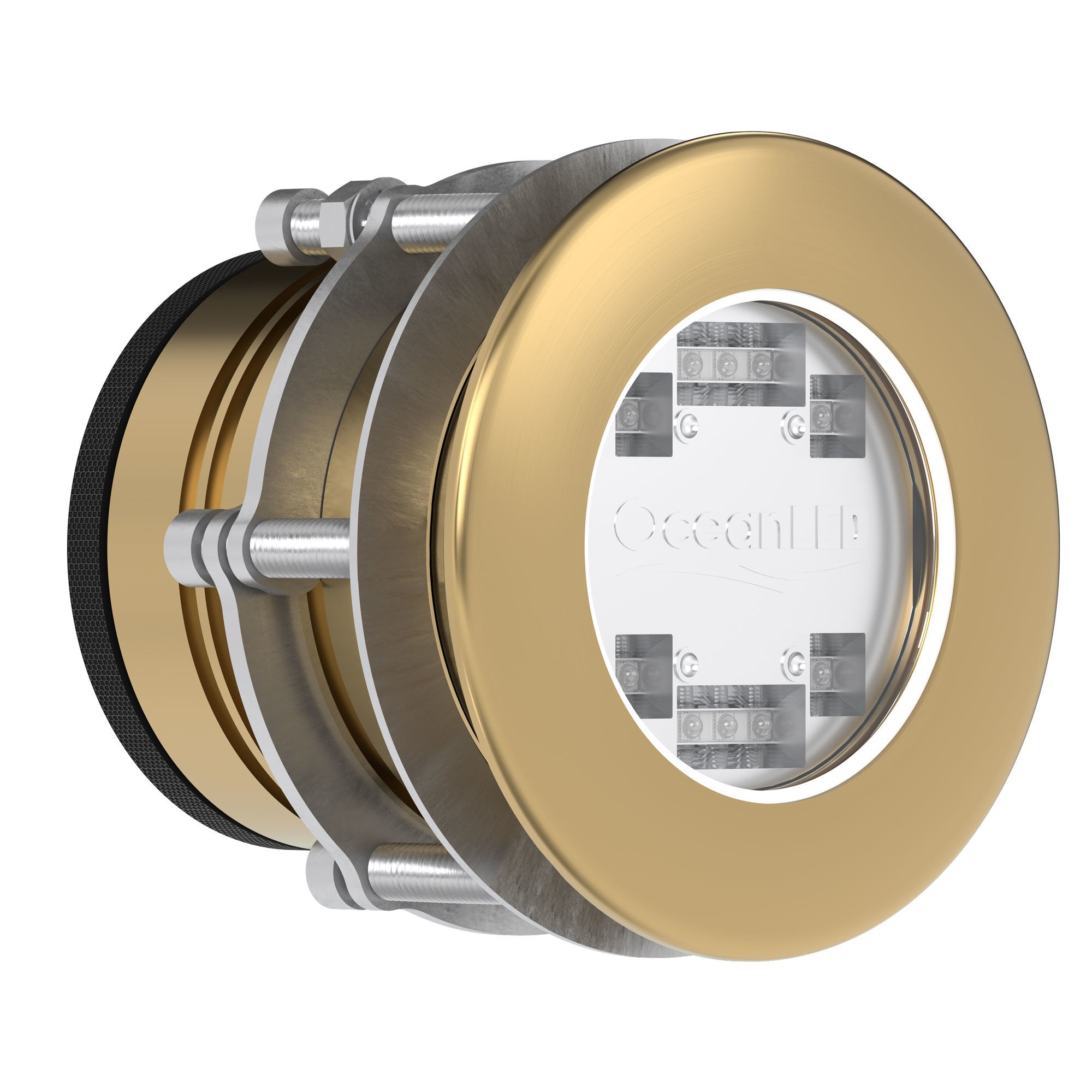

OceanLED Explore E3 XFM
Model: E3009WThe Explore E3 has the most advanced optics available on the market.
The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.
All aspects of the design including the clamping kit make installation quicker and simpler.
The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.
Specifications| Lumens (Single Colour) | 10,000 19,000 |
| Fixture Lumens (Single Colour) | 5,000* |
| Min-Max Operating voltage DC | 9-32V DC |
| Current / Amp draw Single Colour (12V DC / 24V DC) | 5.5A / 2.4A |
| Min-Max Operating voltage AC (Optional) | 100V - 240V AC |
| Current / Amp draw Single Colour (110V AC / 230V AC) | 620mA / 290mA |
| Driver type | Internal |
| Total weight | 1.2kg (2.65lbs) |
| Total Diameter (Including Flange) | 105mm (4.13") |
| Diameter Of Body | 80mm (3.15") |
| Profile Of Fixture | 4mm (0.16") |
| Length | 97mm (3..8") |
| Minimum Space Required Inside The Hull | 170mm (6.55") |
| Hole Cut-Out | 83mm (3.25") |
| Material (Mounting Tube) | AB2 Aluminium Bronze |
| Material (Light Body) | Aluminium |
| Boat size | 0-10m |
| Transom / Hull spacing | 0.5-1.2m (2-4’) |
| Installation depth below waterline | 25-30cm (10-12") |
Brand: Ocean LED
UPC: 5051803007630
Model Number: E3009W
