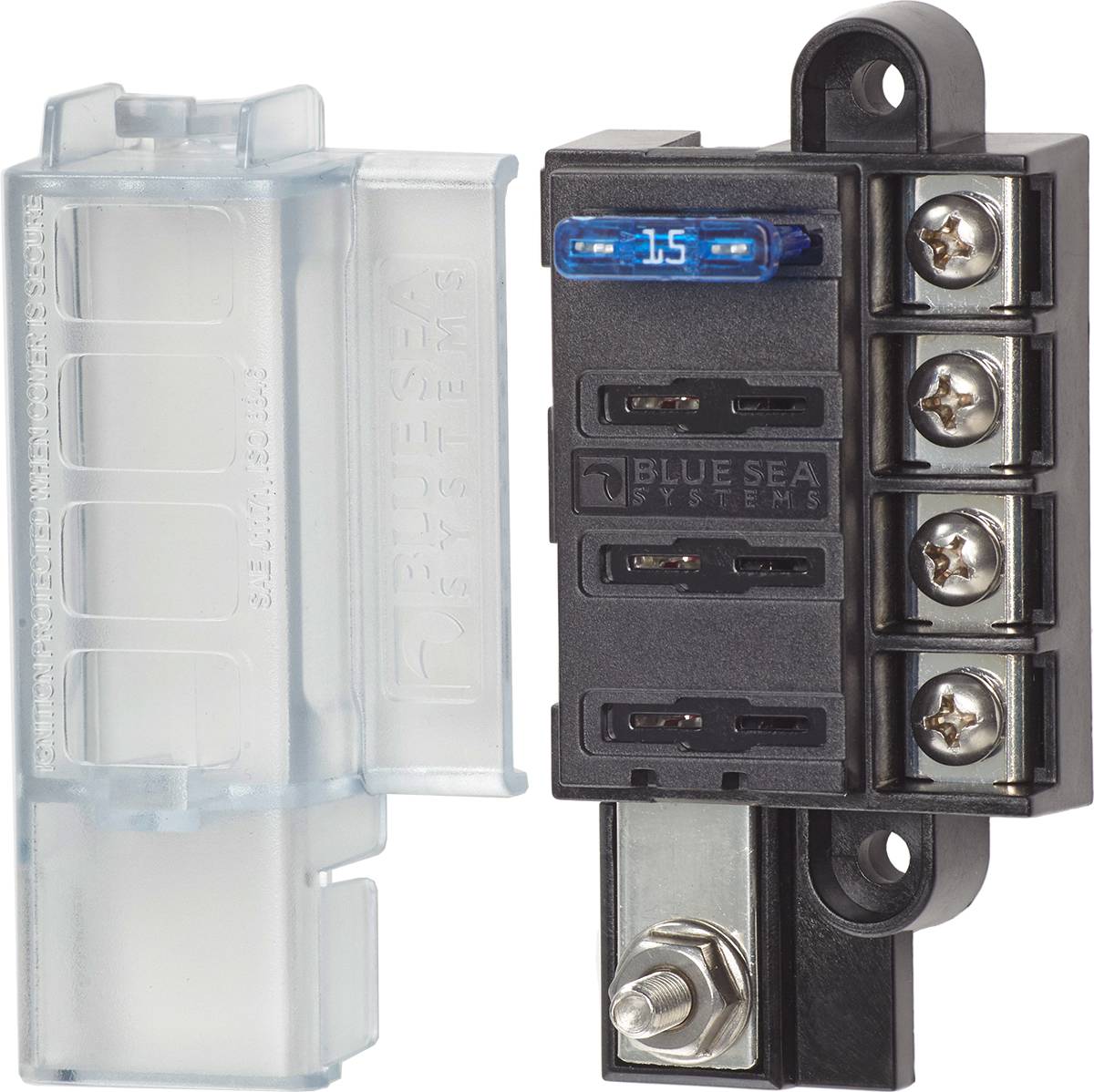

Blue Sea 5045 4-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea 5045 4-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea Systems ST Blade Compact Fuse Blocks - 4 CircuitsModel: 5045-BSS Ignition protected when cover is...
Vendor: Blue Sea Systems
SKU: wt-BSS5045
Availability: In stock
$24.61
$37.99
$24.61
Subtotal: $24.61
Description
Description
x

Blue Sea Systems ST Blade Compact Fuse Blocks - 4 Circuits

Model: 5045-BSS
  • Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately
Specifications
Circuits 4
Maximum Amperage 100A per block
30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Terminal Stud Torque 24 in-lb (2.71 Nm)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Scews with captive star lock washer
Terminal Stud Size #10-32


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085050450

Model Number: 5045-BSS

Weight: 0.250000
