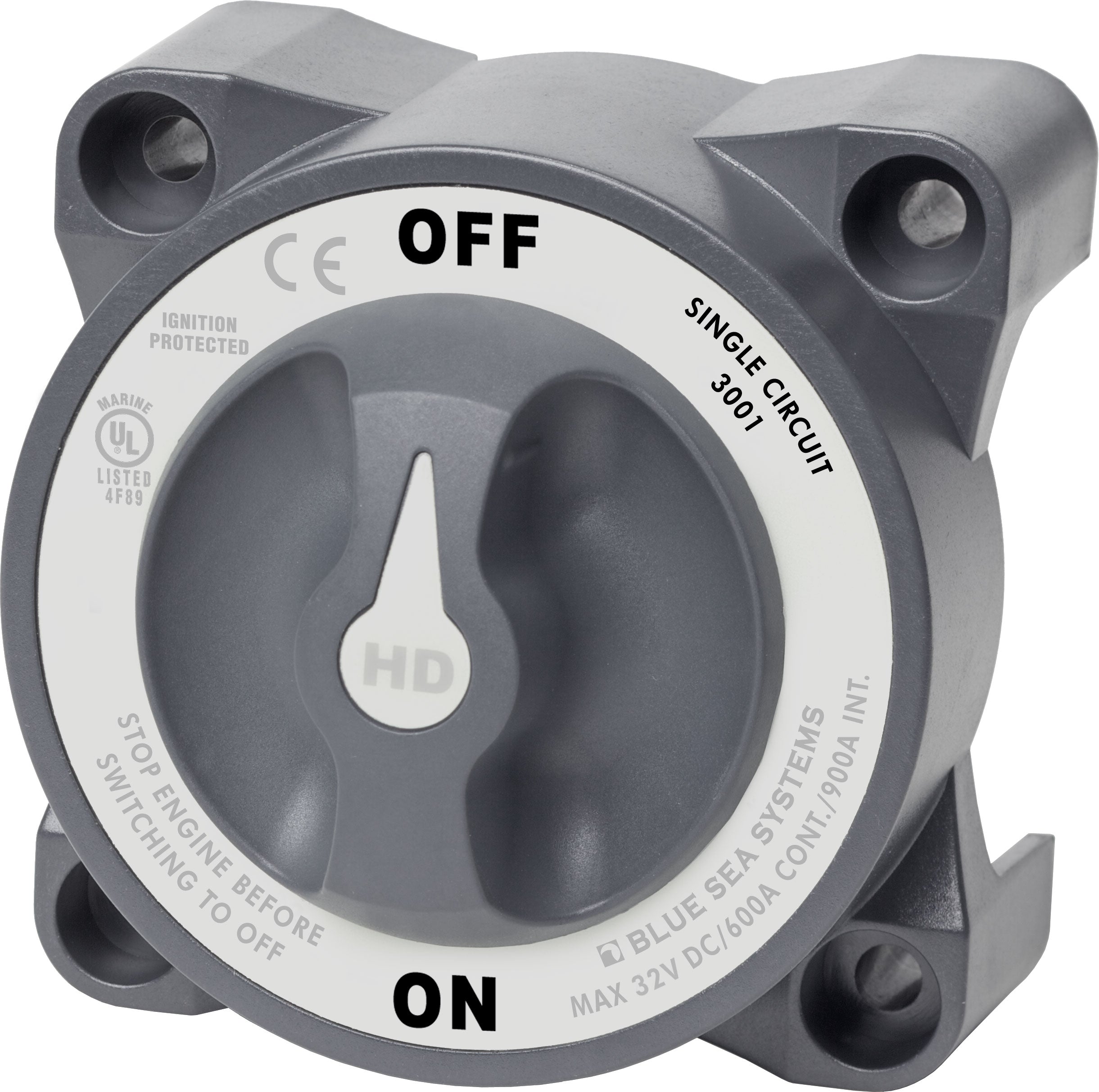

Blue Sea HD-Series Battery Switch On/Off 600A Alternator Field Disconnect

Blue Sea HD-Series Battery Switch On/Off 600A Alternator Field Disconnect

Blue Sea 3000 600A Battery Selector Switch On-Off with Alternator Field DisconnectModel: 3001-BSS Tin-plated copper studs for...
Vendor: Blue Sea Systems
SKU: wt-BSS3001
Availability: In stock
$86.56
$150.99
$86.56
Subtotal: $86.56
Description
Description
x

Blue Sea 3000 600A Battery Selector Switch On-Off with Alternator Field Disconnect

Model: 3001-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 1/2" (M12) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Includes AFD (Alternator Field Disconnect)
Specifications
Switch Type Single Circuit ON-OFF
Color Grey
Switch Positions 2
Battery Combine No
Alternator Field Disconnect Yes
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating 600A
Intermittent Rating 900A (5 min)
Cranking Rating 30 sec 1750A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables
Cable Size to Meet Ratings 4/0 AWG (120mm )
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 1/2" (M12)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085030018

Model Number: 3001-BSS

Weight: 8.630000
