Simrad SS75M 12DEG 80-130KHZ 9-PIN Thru Hull

Simrad SS75M 12 Degree Tilt

• CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
• Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
• CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
• Provides extremely accurate data.
• The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
• The low profile housing minimizes drag with just 5mm extending outside of the hull.
• Easily connect to NSSevo3

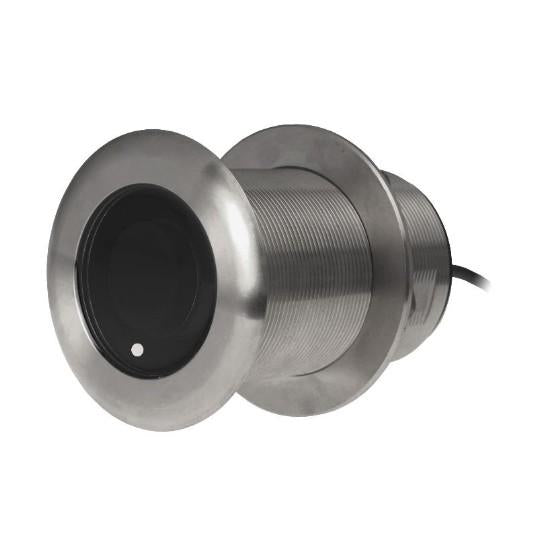

The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Brand: Simrad

UPC: 9420024162644

Model Number: 000-13909-001

Weight: 6.81

Length: 8

Height: 5

Width: 11
