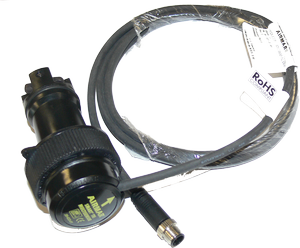

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.Model: 000-15735-001 5 Hz speed output (5X...
Vendor: Simrad
SKU: wt-SIM00015735001
Availability: In stock
£311.92
£311.92
£311.92
Subtotal: £311.92
Description
Description
x

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.

Model: 000-15735-001
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic Window Urethane
Hull Deadrise Up to 22°
Data Update Rate Depth 1X/second
Data Update Rate Speed 5X/second
Attitude Accuracy +/— 1° nominal after sensor calibration
Depth Frequency 235 kHz
Minimum Depth Range 0.5 m (1.6')
Maximum Depth Range Up to 100 m (330')—NMEA 2000®
Speed Range Up to 45 knots
Pressure Rating 3 m (10')
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC—per NMEA 2000
Supply Current <200 mA—per NMEA 2000®
Wireless Protocol Bluetooth Low Energy (BLE)
Wireless Range Up to 30 feet depending on mount location
Standard Cable Length 6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy +/-0.5°C (+/-1.8°F)
Temperature Sensor Range -10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN) 3

What's in the Box:
  • DST-810 Insert
  • Plastic Housing


    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Brand: Simrad

    UPC: 9420064117895

    Model Number: 000-15735-001

    Weight: 2.6400

    Length: 10.0000

    Height: 3.7400

    Width: 7.7500
