Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

Spring Loaded/Lined Slide/Aluminum for 1" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum...
Vendor: Schaefer Marine
SKU: 74718
Availability: In stock
Product type: Blocks
£152.45
£205.89
£152.45
Subtotal: £152.45
Description
Description
x

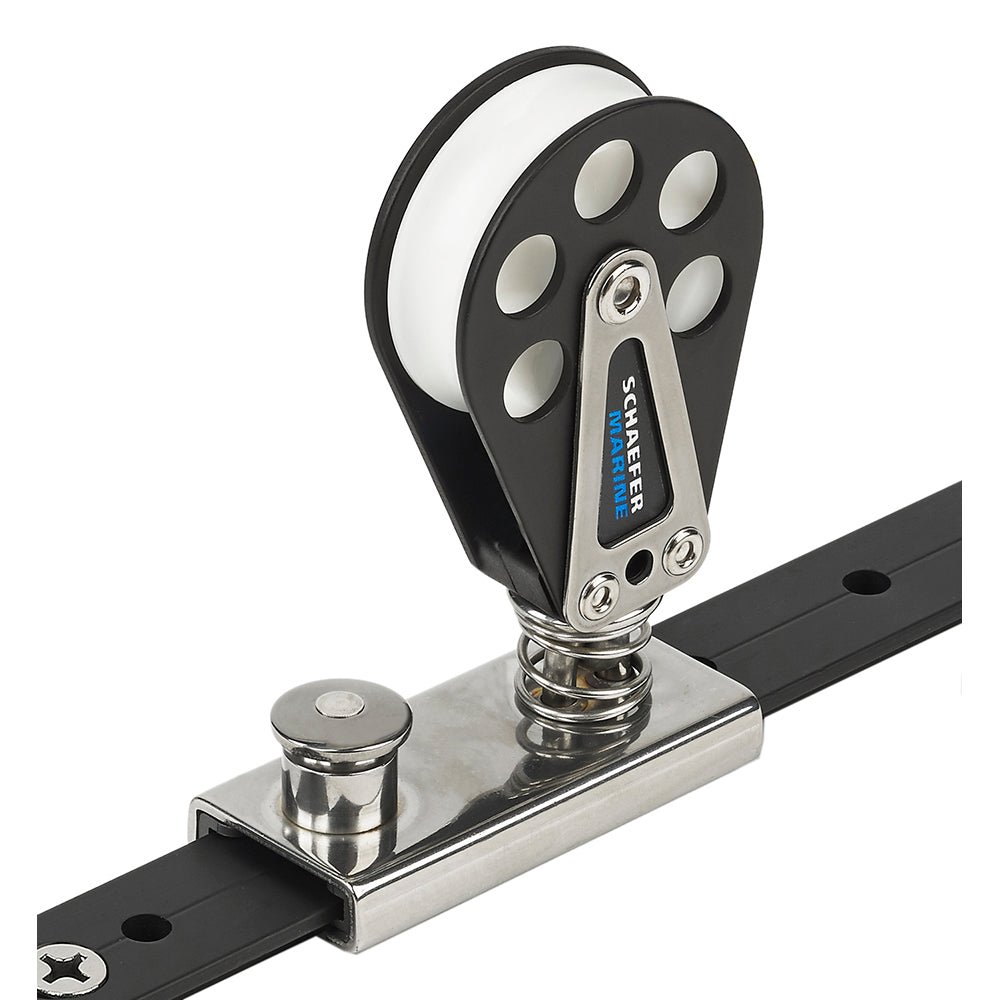

Spring Loaded/Lined Slide/Aluminum for 1" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1" x 1/8" (25 mm x 3 mm)
  • Max. Boat Length- 27' (8m)
  • Max. Boat Weight- 5000 lbs. (2270 kgs)
  • Sail Area- 315 sq. ft (29 m2)
  • Sheave Diameter 2" (51 mm)
  • Max Line 7/16" (11 mm)
  • Length 3" (76 mm)
  • Width 1-1/4" (31 mm)
  • Height 4-5/32" (105 mm)
  • Bearing Height 2-7/32" (56 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 7.0 oz. (198 g)
