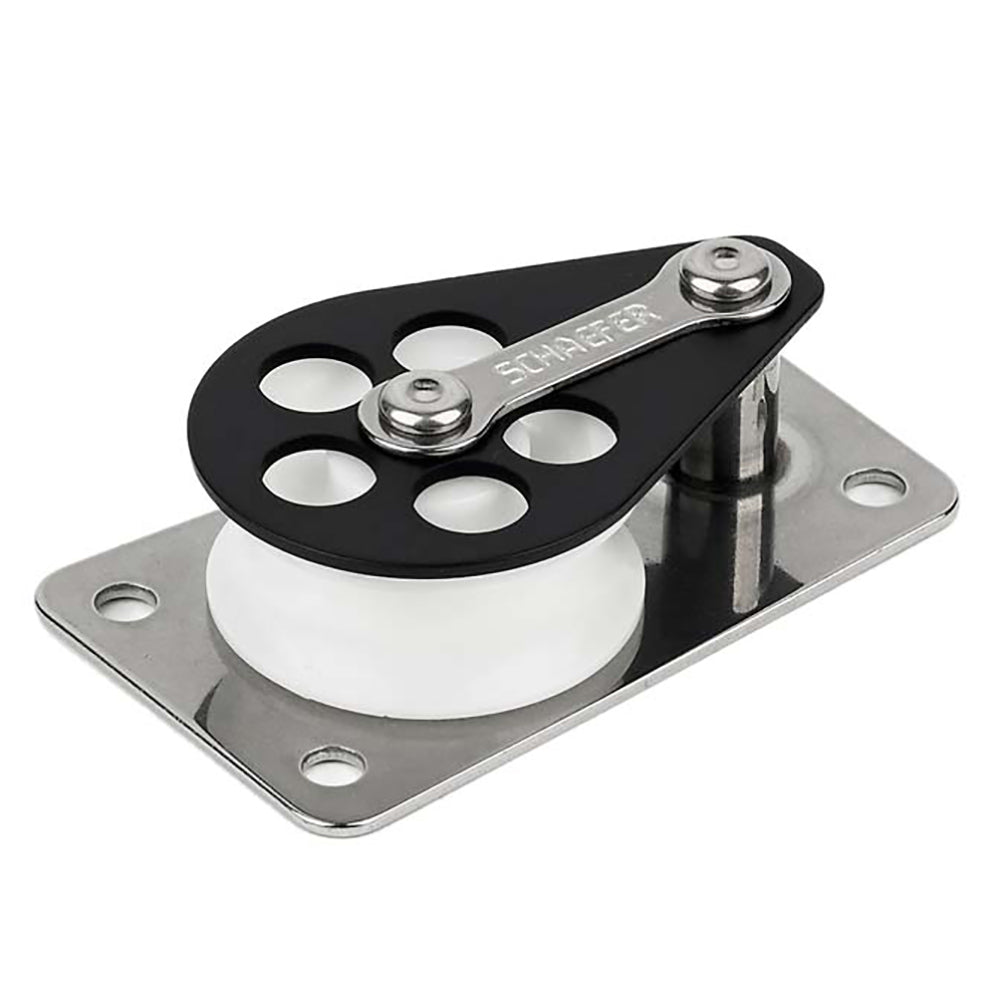

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave [303-09]

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave [303-09]

Series 3 Flat Base/Alum Cheek/Delrin SheaveDelrin™ plain bearing sheave ensures smooth operation and high safe working load....
Vendor: Schaefer Marine
SKU: 74707
Availability: In stock
Product type: Blocks
£53.38
£68.47
£53.38
Subtotal: £53.38
Description
Description
x

Series 3 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.

Specifications:

  • Sheave Dia. 1-7/16" (37 mm)
  • Max Line 7/16" (11 m)
  • Length 2-7/8" (73 mm)
  • Width 1-3/4" (44 mm)
  • Height 3/4" (19 mm)
  • Fasteners (4) #10- RH (5 mm)
  • C/C 2-3/8" (60 mm)
  • SWL 1000 lbs. (450 kg)
  • Weight Alum. 2.5 oz. (71 g)
