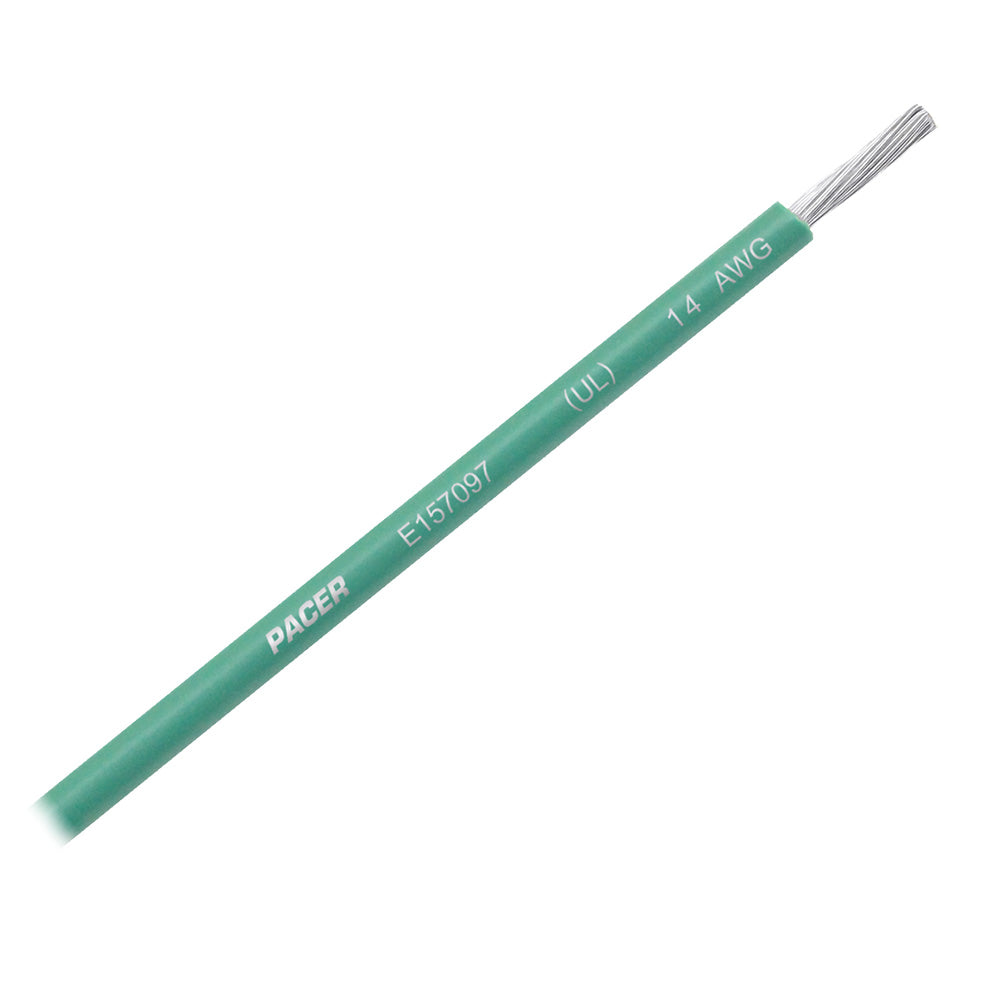

Pacer Green 14 AWG Primary Wire - 25' [WUL14GN-25]

Green 14 AWG Primary Wire - 25'

Pacer's 14 AWG marine wire is built to handle harsh marine environments. It is manufactured to meet and exceed extremely stringent specifications. This 14 AWG marine wire is constructed in-house in Sarasota FL, USA to guarantee the highest level of quality. This cable is built from Type III class K tinned copper. It offers excellent flexibility and durability. The tinned copper conductors are meant to resist corrosion which adds to the longevity of the wire.

What type of insulation is used? Well, when the copper is tinned, the next step is to insulate it with a flexible yet durable PVC jacket. This insulation protects the wire and makes it resistant to a variety of hazards. These hazards include; alkali, abrasion, acid, gas, oil, flame, and moisture. What compliances and standards does Pacer's Wire meet? This marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.

Features:

• Stranded, tinned copper conductors
• Highly flexible color-coded insulation

Compliances:

• UL Standard 1426 BC-5W2
• ABYC: E-11.15
• UL: MTW
• Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems
• Temperature Rating: 105 °C Dry, 75 °C Wet

Characteristics:

• Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Applications:

• Point-to-point wiring
• Internal wiring of panels and motors

Specifications:

• AWG: 14
• Length: 25 ft.
• Color: Green
• Cond. Stranding: 41/0.0100
• Nom. Insulation: 0.032
• Nom. O.D.: 0.145
• Nom. Circular Mils: 4100
• Approximate LB/M: 22.0

Specifications:

• Color: Green
• Gauge: 14 AWG
• Length (Feet): 25'
• Box Dimensions: 2"H x 4"W x 4"L WT: 0.61 lbs
• UPC: 840248212656
