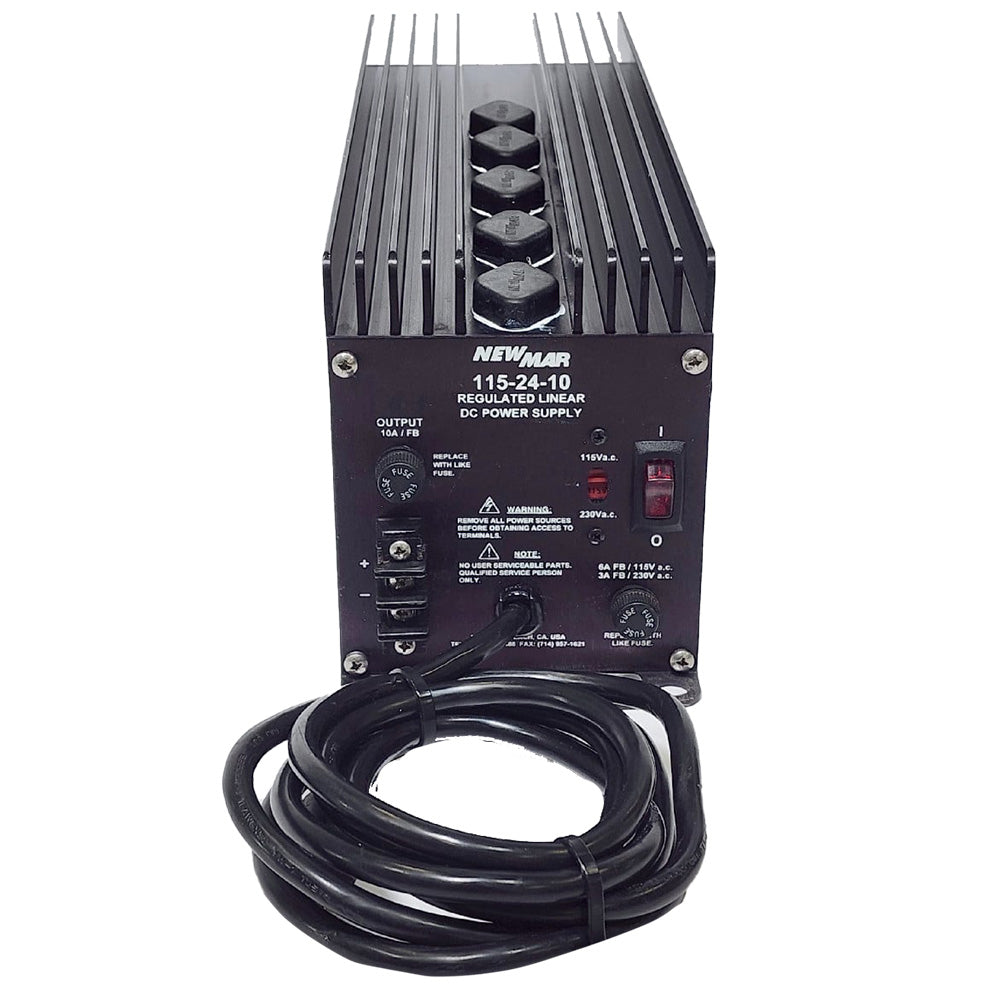

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

• Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
• Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
• The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
• Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
• Thermally activated cooling fan on “CD” units

Specifications:

• Nominal Input/VAC: 115/230
• Maximum Input Current @115: 5.5
• Maximum Input Current @230: 2.5
• Output Amperage (Intermittent): 10
• Output Amperage (Continuous): 4
• Weight: 20 lbs. / 9.1 kg

Case Size:

H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

Standard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperature

Duty Cycle:

• Intermittent: 20 minutes max on time, 20% duty
• Continuous: 24 hours/day 100% Duty

Options:

• Modify for use as a battery charger
• The output voltage is adjusted (see Output Voltage for range)
• Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

• 24.5 VDC (Internally adjustable 21-27.5 VDC)
• Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
• 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

• Powder-coated aluminum heat sink case
• Front panel terminal block
• Heavy-duty mounting flange
• Conformal-coated PC board
