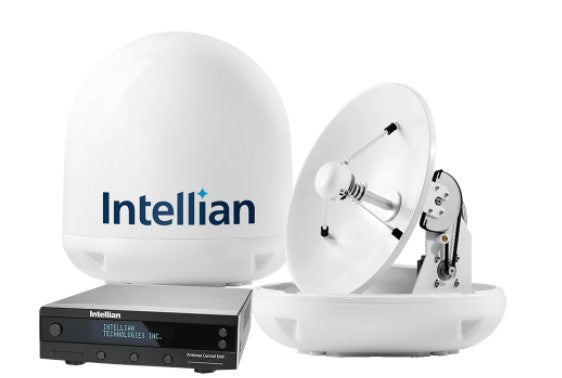

INTELLIAN I4 US SYSTEM 18" W/ALL AMERICAS LNB

i4 US System w/17.7" Reflector & All Americas LNB

With its rugged, reliable and durable design, the Intellian i4 provides the most outstanding performance to stay locked in. It connects boaters to the premium satellite TV entertainment they want while vessels are cruising at high speed or in rough sea conditions. The i4's stylish and polished dome design makes it perfect for boats over 50 feet.

With its patent pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i4 can achieve the most precise tracking performance and highest signal reception without the need of a fragile or superfluous motion sensor. An embedded GPS system can speed up satellite search and acquisition time.

The revolutionary design feature of the i4 is that it has the intelligent built-in HD and TriSat modules in its control unit. This offers boaters High Definition satellite TV broadcasts from leading satellite TV service providers without any extra conversion tools and cable wiring. Using Dish Network or Bell TV in Canada, the standard i4 enables HD channel viewing, with DirecTV SD programing is available. For DirecTV HD consider the Intellian s6HD. Combined with the new built in WiFi enables simple one-touch upgrades using the Aptus App.

With the Intellian MIM Switch (M2-TD02) sold separately, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. For easy and flexible installation and operation, the i4 supports standard dual and quad IRD connections with its single cable design between the antenna and the antenna control unit (ACU). This simple and powerful system is manufactured in compliance with the most rigorous quality verification of ISO 9001:2001.

Features:

Fully Automated System

• Automatic satellite search and identification function
• 2-axis step motor for controlling the antenna pedestal

High Quality Antenna

• 45 cm diameter of parabola-type antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal
• LHCP/RHCP or Horizontal/Vertical polarization
• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm
• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High speed identification employing DVB decoder
• QPSK demodulator lock for DSS signal

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

New Antenna Control Unit

• Easy satellite information change and update via WiFi using the Aptus App
• Easy antenna status check and automatic diagnosis
• Easy antenna control using Aptus graphical control App
• Reliable power supply to the antenna and to the MIM module
• Embedded HD module and TriSat function
• Industry leading 3-year parts and workmanship guarantee with a
  2-year labor warranty for all antenna systems, ensuring peace of mind with
  your hardware investment

All Satellite Systems include the following parts as standard:

• Antenna & Radome 17.7" (45 cm) Reflector & North Americas LNB
• ACU (Antenna Control Unit) with WiFi connection for upgrades
• Built-in HD Module for Ku-Band HD (when available)
• Built-in GPS and NMEA 0183 GPS interface
• Built-in Pre-programmed Global satellite library
• Aptus App, downloadable
• Installation & Operation Manual
• Installation Template
• Quick Installation Guide
• Cable Kit:
  • 49ft (15 m) x 1EA Antenna-ACU RG6 Coaxial Cables
  • 10ft (3 m) x 1EA ACU-IRD RG6 Coaxial Cables
  • 33ft (10 m) x 1EA DC ACU Power Cable
  • 6ft (1.8 m) x 1EA PC Serial Cable

 Mfg. # B4-409AA
