Description
xBlack Box Transceiver - Icom Quality. Small Footprint.

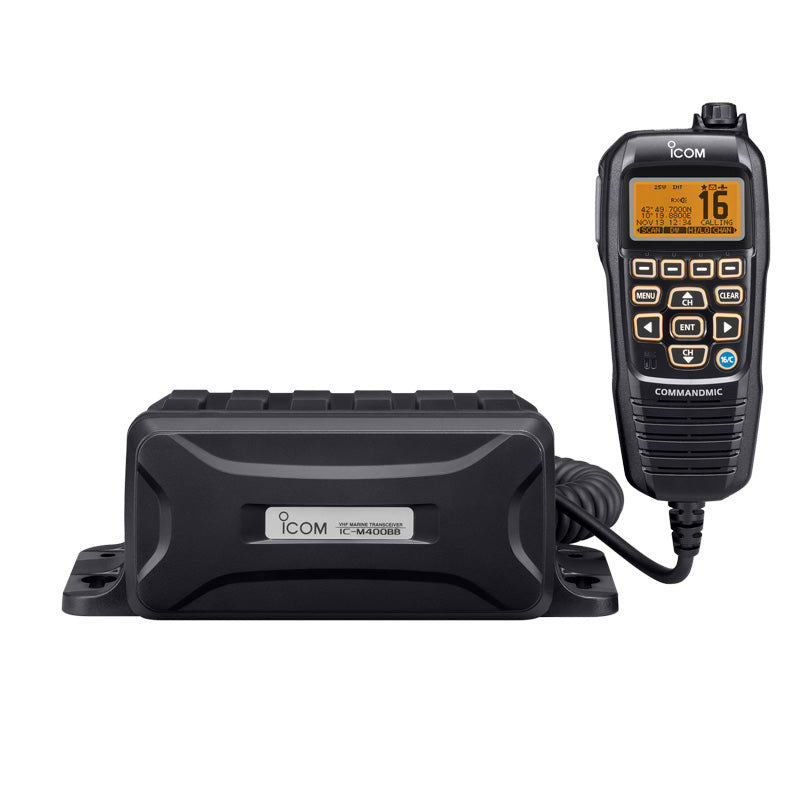

Space-saving, two-piece configurationThe IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMICIV™, HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.
New intuitive user interfaceThe new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.
Active noise cancellingThe built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Loud Audio, Public Address and FoghornThe IC-M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
Built-in Class D DSCThe built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.
Common NMEA InterfaceWhen connected to an external GPS receiver, current position and time are shown on the COMMANDMICTM display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
AIS Target Call with MA-500TRWhen connected to the optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.
Additional features include- MarineCommander™ compatible
- AquaQuake™ water draining function
- IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1m depth for 30 minutes)
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
| General | |
|---|---|
| Frequency Range Tx Rx Ch. 70 |
156.025-157.425MHz 156.050-163.275MHz 156.525MHz |
| Usable channel groups | INT, USA, CAN and WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8V DC nominal (11.7-15.9V DC) |
| Current drain (at 7.4V DC) Tx (at 25W output) Rx (Max. audio) |
5.5A Max. 3.5A Max. |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω (SO-239) |
| Dimensions (W H D) IC-M400BB HM-195B/SW |
216 79 125mm; 8.5 3.11 4.92 in 67.5 144.5 37mm; 2.66 5.69 1.46 in |
| Weight (approx.) IC-M400BB HM-195B/SW |
830g; 1.83 lb 400g; 14.1 oz |
| NMEA in/out formats | RMC, GGA, GNS, GLL, DSC, DSE |
| Transmitter | |
|---|---|
| Output power (Hi/Low) | 25W, 1W (High, low) |
| Max. frequency deviation | ± 5.0 kHz |
| Frequency tolerance | ±10ppm |
| Spurious emissions | Less than -70dBc (at 25W) |
| Receiver | |
|---|---|
| Sensitivity Main Ch. 70 |
0.22μV typical (at 12dB SINAD) -5dBμ emf typ. (1% BER) |
| Squelch sensitivity | Less than 0.32μV |
| Adjacent Channel Selectivity Main Ch. 70 |
More than 70dB More than 73dBμ emf (1% BER) |
| Spurious response Main Ch. 70 |
More than 70dB More than 73dBμ emf (1% BER) |
| Intermodulation Main Ch. 70 |
More than 70dB More than 68dBμ emf (1% BER) |
| Hum and noise ratio | More than 40dB |
| Audio output power Internal speaker |
More than 2W (HM-195B/SW) More than 10W (RX Speaker) |
Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).
Applicable IP Rating
| Ingress Protection Standard (IC-M400BB and HM-195B/SW) | |
| Water | IPX7 (Waterproof protection |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Brand: Icom
UPC: 731797036049
Model Number: M400BB
Weight: 5.0000
Length: 10.0000
Height: 8.0000
Width: 8.0000
