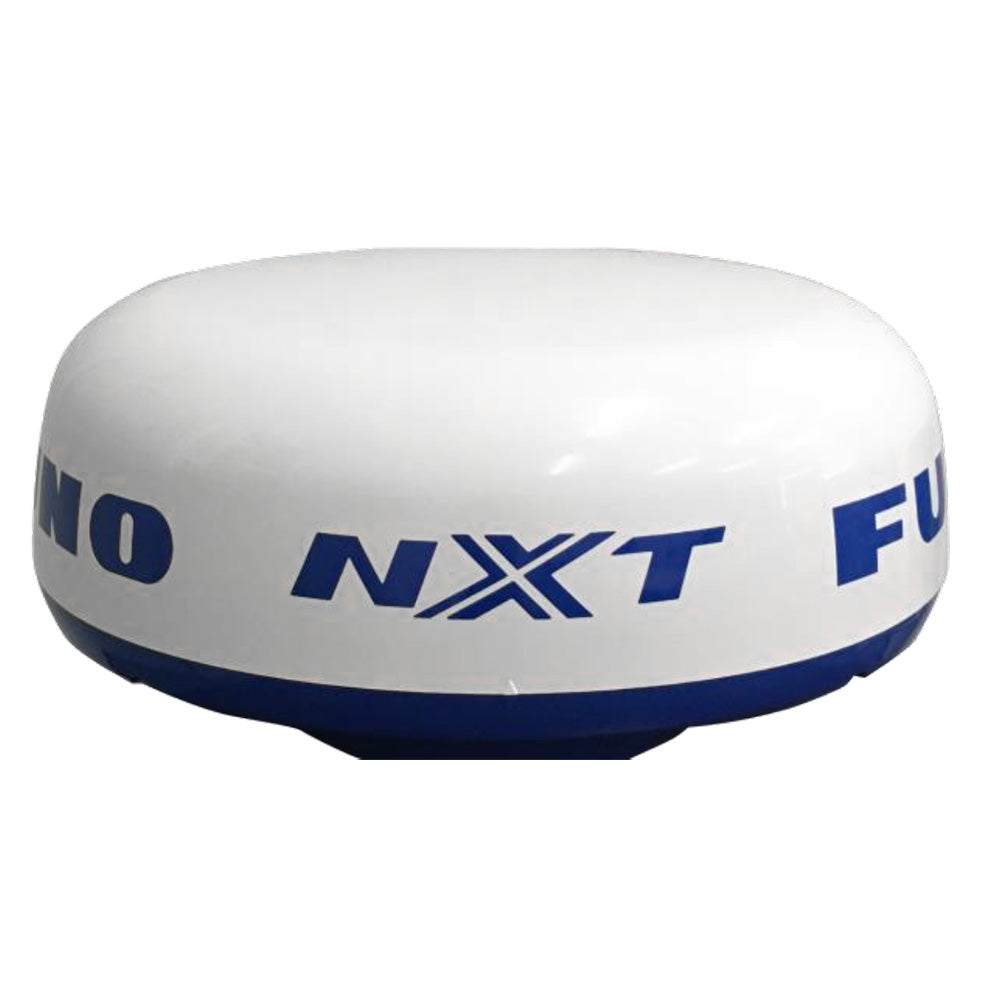

Furuno DRS2DNXT 19" Solid-State Doppler Radar w/Target Analyzer Fast Target Tracking f/NavNet TZtouch, TZtouch2 TZtouch3 [DRS2DNXT]

DRS2DNXT 19" Solid-State Doppler Radar with Target Analyzer & Fast Target Tracking for NavNet TZtouch, TZtouch2 & TZtouch3 - LESS CABLE

The NXT Step with Doppler Radar Technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™, and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

Target Analyzer Function Utilizing Doppler Technology

NXT was the first Radar in the world to use the Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independently of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessels' course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

RezBoost™ Beam Sharpening

For the first time, Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2-degree beam width can be achieved.

Specifications"

• Antenna Size: 19"
• Antenna Type: Radome
• Band: X-Band
• Beam Width: 5.2 Degrees
• Power Usage: 12-24 VDC
• Power Output: 25W
• Range: 48nm

SIGNAL/POWER CABLE IS AN ACCESSORY

Specifications:

• Array Size (Inches): 24"
• Power - Output: 25w
• Range - Max (Miles): 48nm
• Box Dimensions: 11"H x 21"W x 21"L WT: 20 lbs
• UPC: 611679396693
