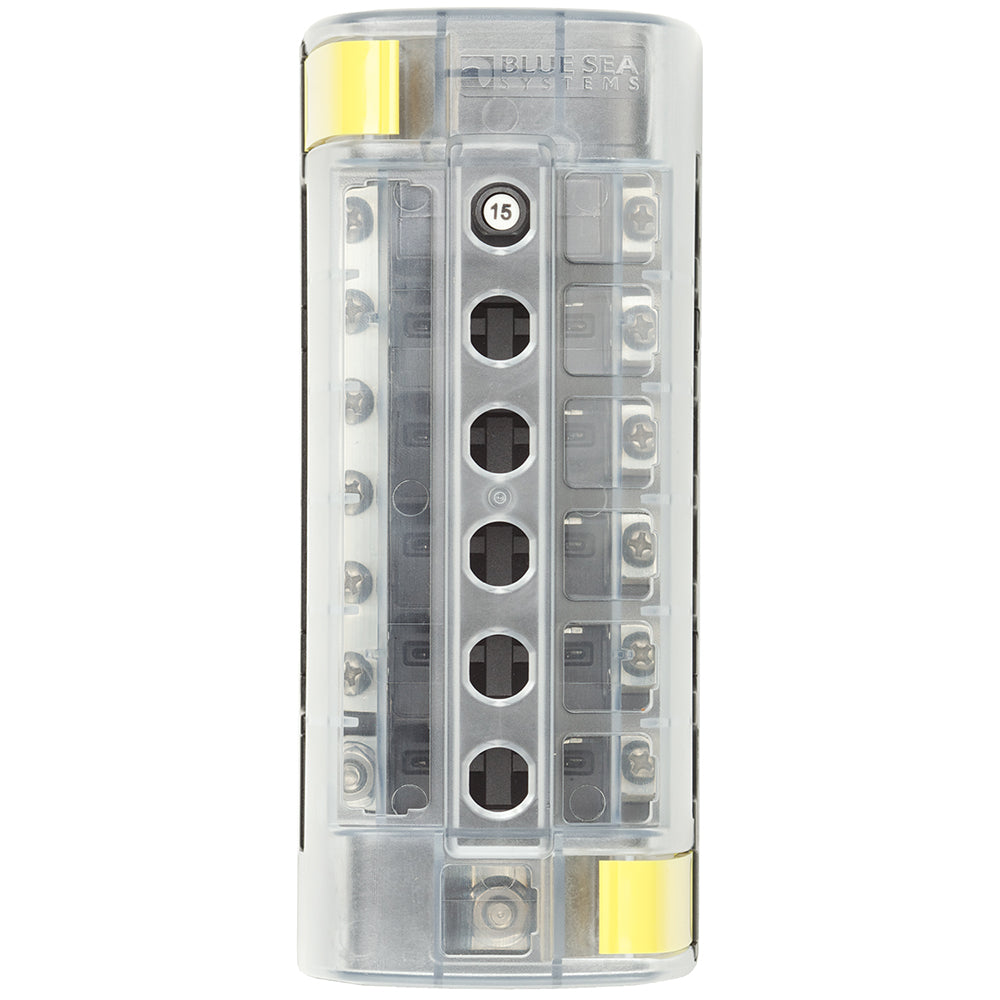

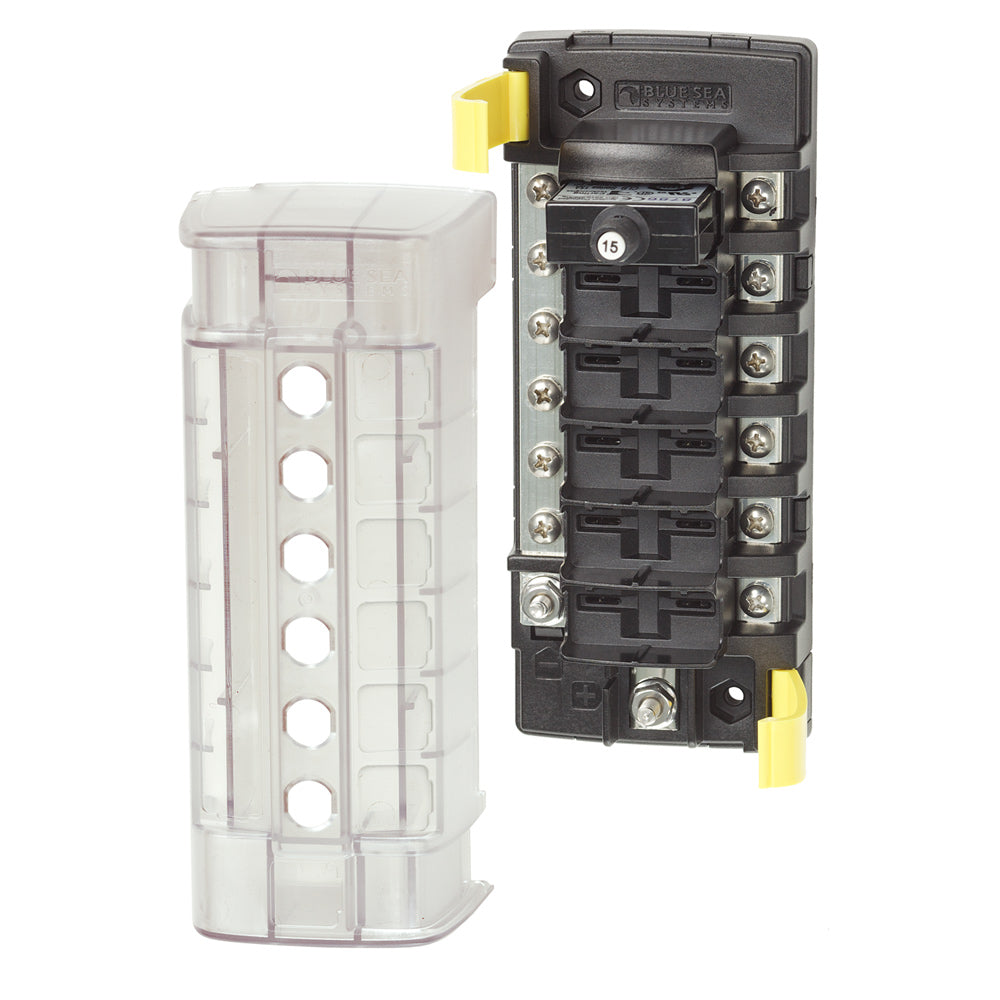

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]

ST CLB Circuit Breaker Block - 6 Position w/Negative BusFeatures Quick connect clips allow circuit breakers to...
Vendor: Blue Sea Systems
SKU: 51811
Availability: In stock
Product type: Circuit Breakers
£52.61
£71.40
£52.61
Subtotal: £52.61
Description
Description
x

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

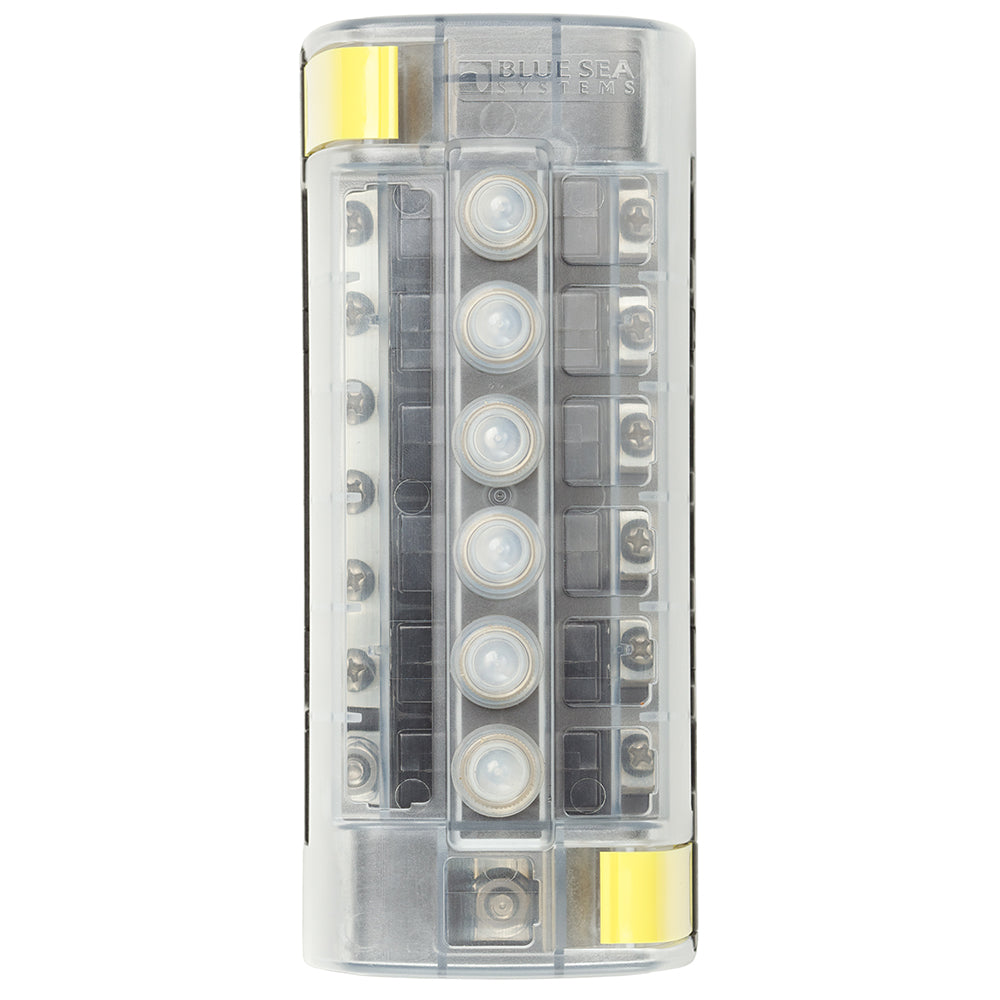

  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 100/32a
  • Box Dimensions: 3"H x 5"W x 11"L WT: 0.9 lbs
  • UPC: 632085050528

Brochure (pdf)
