Airmar B265C-LM Bronze TH Low Medium CHIRP Raymarine 11-Pin Y-Cable

Airmar B265C-LM Bronze TH Low Medium CHIRP Raymarine 11-Pin Y-Cable

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: B265C-LM-11R Depth and fast-response...
Vendor: Airmar
SKU: wt-AIRB265CLM11R
Availability: In stock
£1,666.52
£1,834.00
£1,666.52
Subtotal: £1,666.52
Description
Description
x

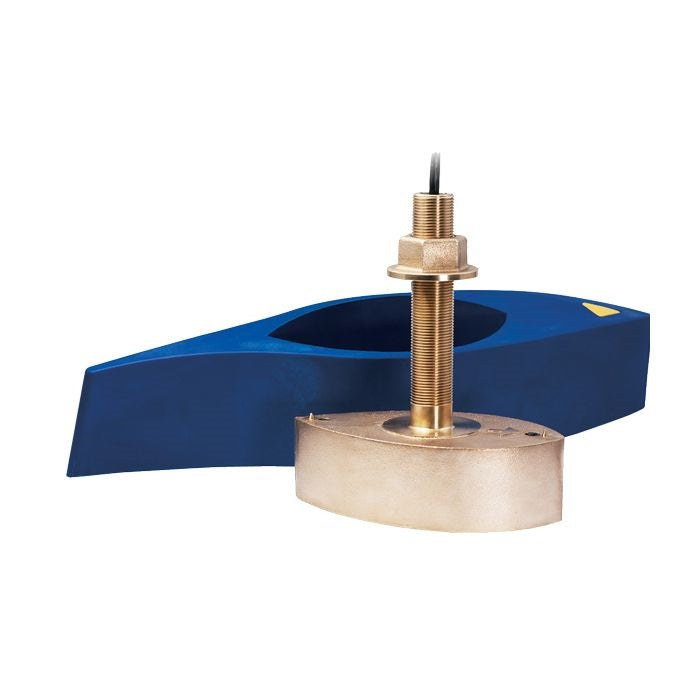

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B265C-LM-11R
  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep to mid-depth performance
  • Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
  • Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
  • 73 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
  • Bronze housing with High-performance Fairing for optimal high-speed performance
  • Patented Xducer ID(R) technology
  • Hull Type: Fiberglass or wood
  • Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications
Cable-Length
10 m (33 feet)
Single or Dual Frequency CHIRP-Ready Dual-Band
Frequency Band Low-Medium
Housing Material Bronze
Low Frequency 42-65 kHz
Low Frequency Beamwidth 25 deg-16 deg
Medium Frequency 85-135 kHz
Medium Frequency Beamwidth 16 deg-11 deg
Max Deadrise Up to 20 deg with fairing
Max Deadrise Angle 20 deg
Max Depth Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Mounting Style Thru-Hull with Fairing
Power Rating 1 kW
Transducer Functions Depth, Temperature
Usable Shaft Length 121 mm (4.75)

What's in the Box:
  • B265C-LM-MM Transducer
  • High Speed fairing Block
  • High Speed Fairing Block Bolt Kit
  • MMC-11RLDB Cable
    • "

Brand: Airmar

Model Number: B265C-LM-11R

Weight: 24.9
