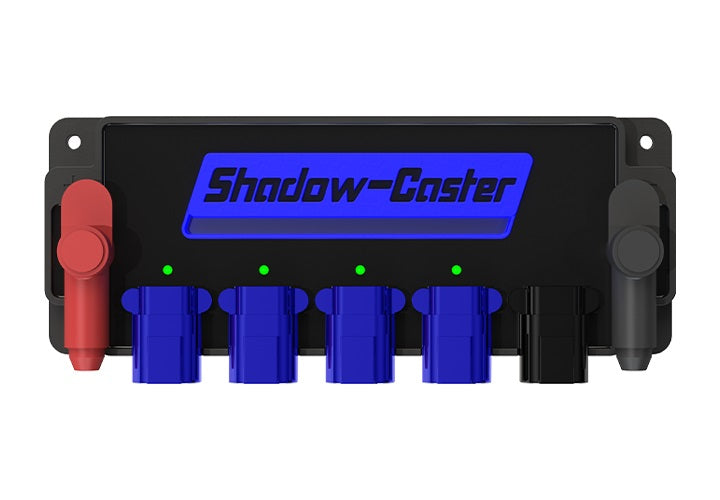

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

• Compact remote power control box
• Green and red LED indicates the status of each output channel
• Individual digital overcurrent protection for each channel
• Compatible with Shadow-Caster™ single and multi-color lights
• Recommended when installing two or more underwater lights
• Can be used with a helm mounted switch or with no switch when using a compatible Shadow-NET™ controller
• Blue LED Backlight indicates power state
• Compatible with 12 or 24V systems
• Up to 10 amps per channel
• 5/16" power lugs
• IP67 washdown rated enclosure

The SCM-PD4CH is a 4-position power distribution module that provides a convenient way to connect and power to four Shadow-Caster™ underwater lights. Digital overcurrent protection for each output insures safe operation of multiple lights and provides an easy way to manage the current needs of multiple light installations. The SCM-PD4CH is housed in a compact IP67 enclosure box that is ideal for mounting in bilge and wet locations.

• 4 channel power control box
• Mounting hardware 4 #8 PH SS x.5"
• Prewired mating connectors
• Standard 3 year warranty


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Shadow Caster

UPC: 850024342583

Model Number: SCM-PDCH4

Weight: 3.000000
