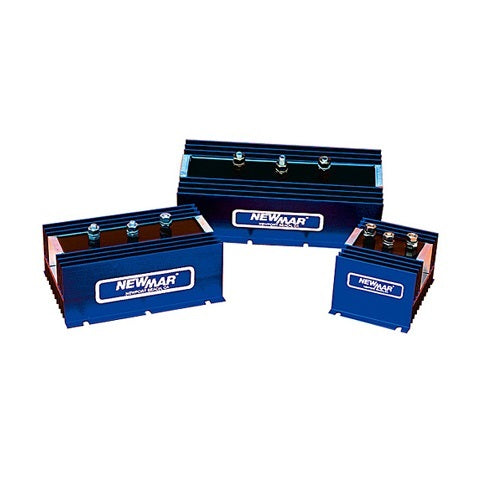

Newmar 1-3-70A Isolator 1AIT 3BATT 70AMP

Newmar 1-3-70A Isolator 1AIT 3BATT 70AMP

These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge...
Vendor: Newmar
SKU: wt-NEW1370A
Availability: Out Of Stock
£174.51
£210.67
£174.51
Subtotal: £174.51
Description
Description
x
These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or "dumping" of one battery into another. each battery is charged according to its need without overcharging.

Rated for 12-48 volt negative ground DC systems. Feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators.

Features:

  • Heavy duty construction
  • Rated for systems up to 48 volts DC
  • Rust-proof anodized aluminum case
  • Stainless steel mounting hardware provided
  • Protective covers provided for terminals

Performance Specifications

Operating temper ature: -40 to +80°C
Duty cycle: Continuous rating to 50° C Dera te linearly to 70% @ 80° C
Temp. rise: 95° C at full rated current ( mount vertically for optimum cooling)
Voltage drop: At 50% load 0.7V - At full load 0.9V

Mode l Alternator Battery Max Amperage Weight

  		Dimensions
  Sources Bank Input Capacity Lbs Kg L W H
1/3/70 1 3 70 2 0.9 3.25 4.5 3.1 in


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Newmar

Model Number: 495-1370-1

Weight: 3.000000
