Blue Sea BatteryLink Automatic Charging Relay 12/24vDC 120A

Blue Sea BatteryLink Automatic Charging Relay 12/24vDC 120A

Blue Sea Systems BatteryLink™ Automatic Charging Relay - 12V/24V DC 120AModel: 7611-BSS 120 Amp continuous rating 12/24V...
Vendor: Blue Sea Systems
SKU: wt-BSS7611
Availability: In stock
£72.55
£112.01
£72.55
Subtotal: £72.55
Description
Description
x

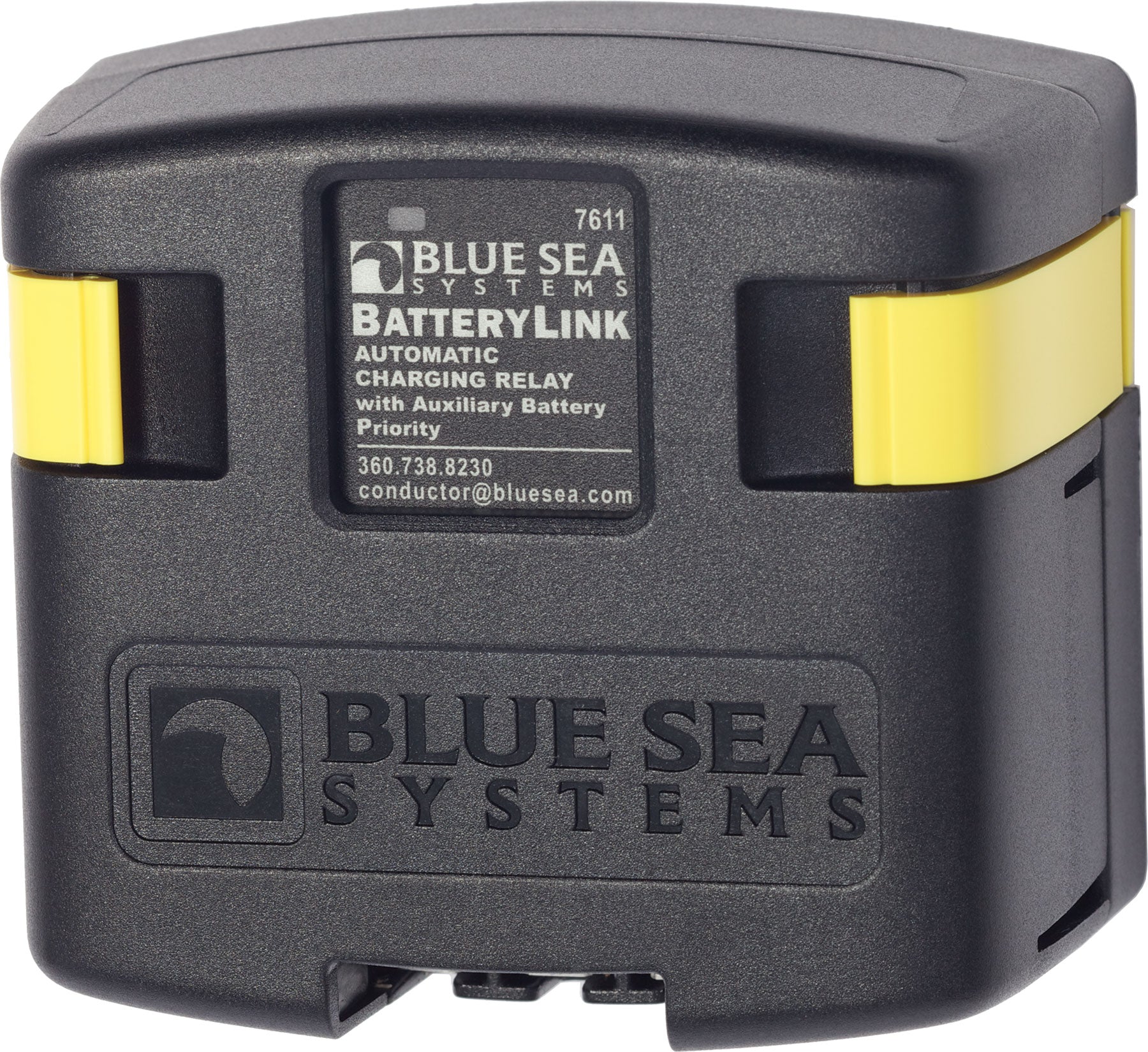

Blue Sea Systems BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A

Model: 7611-BSS
  • 120 Amp continuous rating
  • 12/24V DC auto ranging voltage input
  • Senses charging on two battery banks
  • Side and bottom knockouts for cable connections
  • Clip-on cover insulates terminal connections
  • 7/8" (22 mm) stud length to accept multiple cable terminals
  • Integrated LED indicates ACR status
  • 1/4" .032" male quick connect terminals for ground and optional features
  • Largest battery bank cannot exceed Group 27

Automatically shares single source of charge with Auxiliary Battery

Specifications
Nominal Voltage 12V DC
24V DC
Auxiliary Battery Priority Yes
Amperage Operating Current 175mA @ 12V (Combine) 115mA @ 24V (Combine) 15mA (Open)
Continuous Rating 120A
Intermittent Rating 210A (5 min)
Maximum Cable Size 1/0 AWG
Maximum Torque 140 in-lb (15.82 Nm)
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085076115

Model Number: 7611-BSS

Weight: 1.250000
