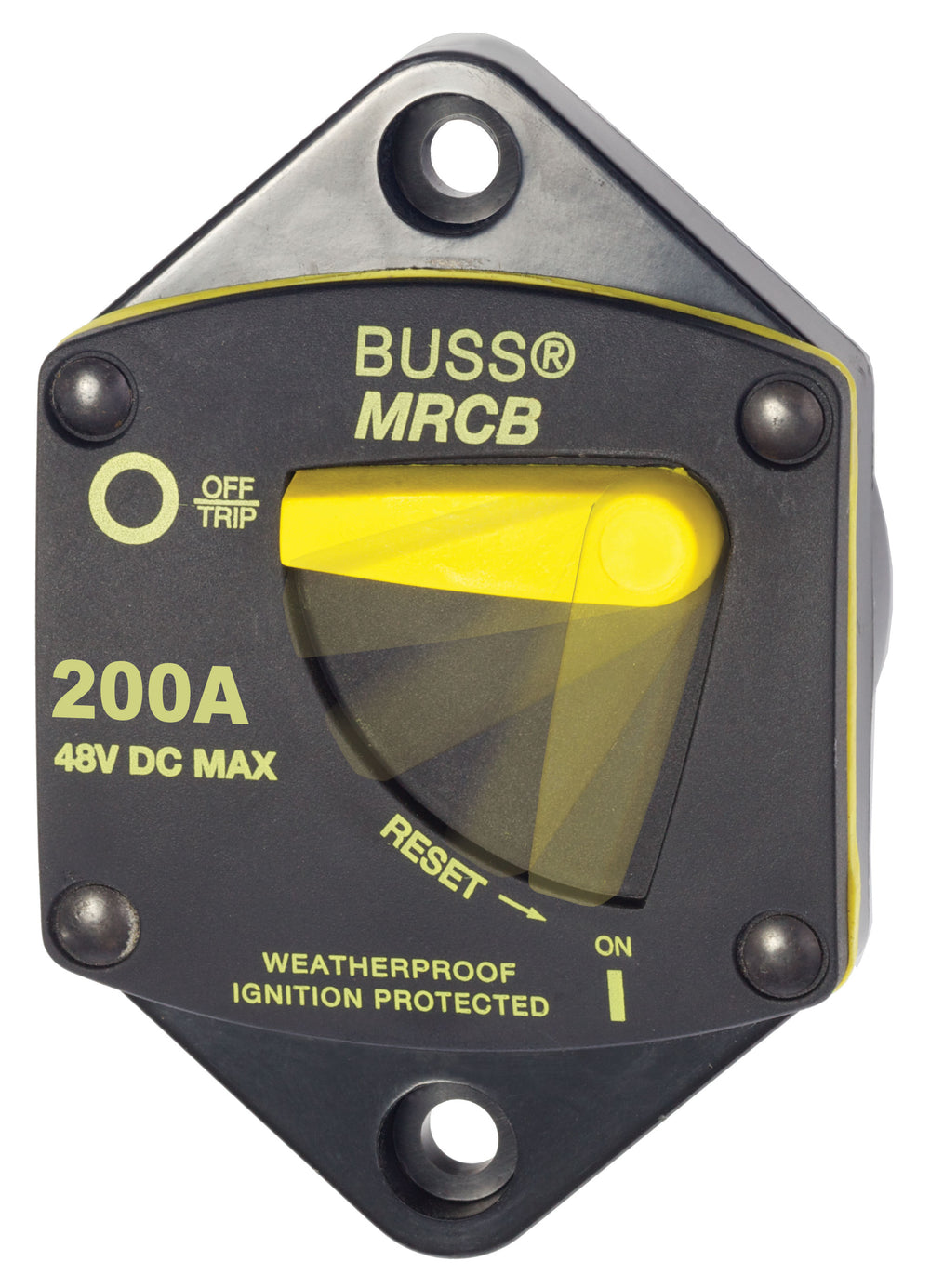

Blue Sea 187-Series 200 Amp Circuit Breaker Panel Mount

Blue Sea 187-Series 200 Amp Circuit Breaker Panel Mount

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into...
Vendor: Blue Sea Systems
SKU: wt-BSS7049
Availability: In stock
£82.20
£126.59
£82.20
Subtotal: £82.20
Description
Description
x

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135A

Model: 7047-BSS
  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats

* Do not use as a switch where high inrush currents are expected.

Specifications
Amperage 135A
Maximum Voltage 48vDC
Mounting Panel Mount
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 75 in-lb (8.47 Nm)
Interrupt Capacity 5000A @ 12V
3000A @ 24V
1500A @ 42V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Case Material Thermoset Polyester
Circuit Breaker Class Type III - switchable/manual reset - trip free
Mounting Hole Accept #10 (M5) Screw
Terminal Stud Size 5/16" - 18


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085070496

Model Number: 7049-BSS

Weight: 0.500000
