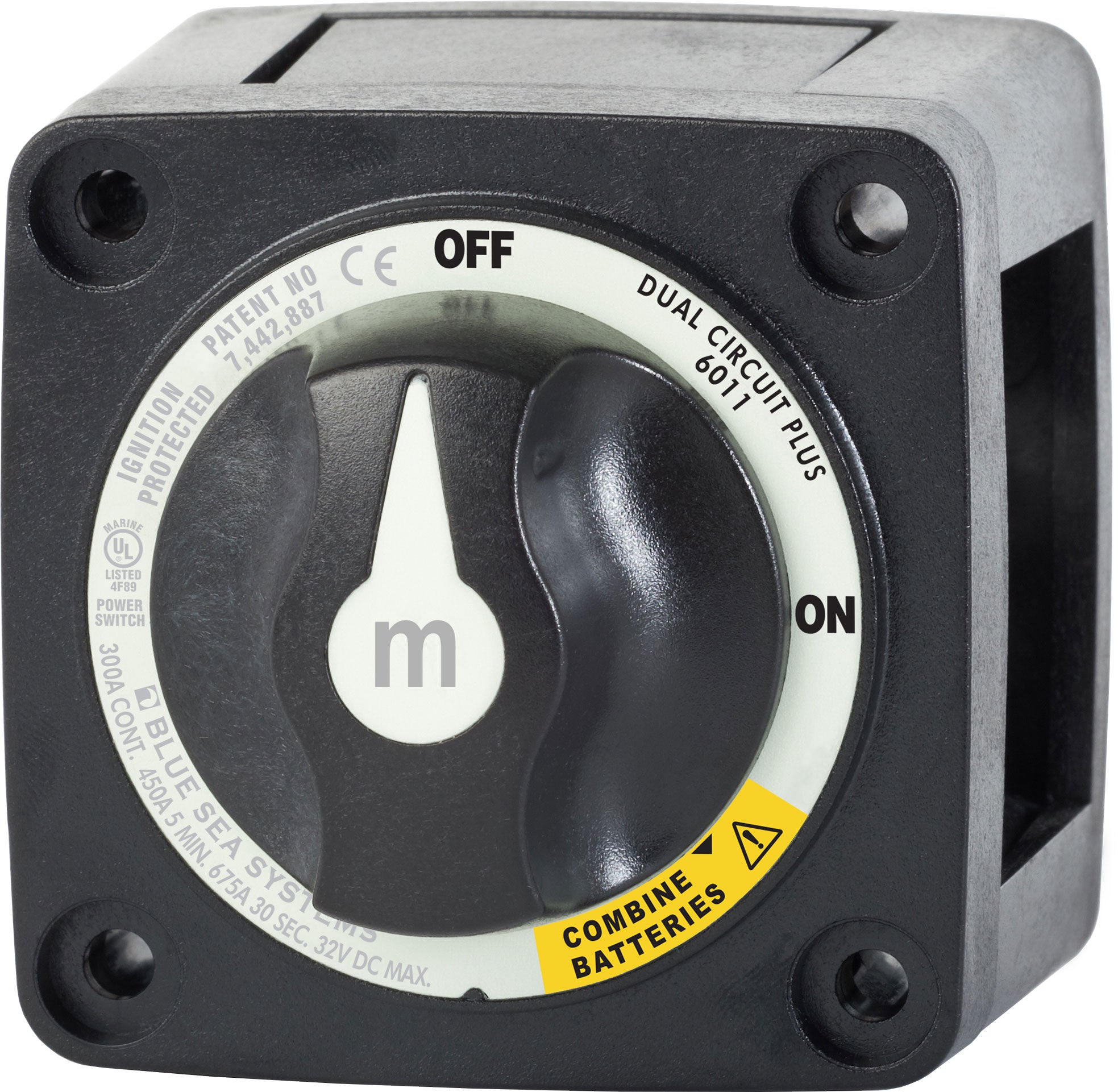

Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch - Black
Model: 6011200-BSSSimultaneously switches two isolated battery banks or combines battery banks to all loads
Specifications| Switch Type | Dual Circuit Plus |
| Color | Black |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
Brand: Blue Sea Systems
UPC: 632085601126
Model Number: 6011200-BSS
Weight: 0.800000
