Blue Sea C-Series ELCI 50A 120/240v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI 50A 120/240v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50AModel: 3104-BSS Provides over current and leakage...
Vendor: Blue Sea Systems
SKU: wt-BSS3104
Availability: Out Of Stock
£429.31
£616.86
£429.31
Subtotal: £429.31
Description
Description
x

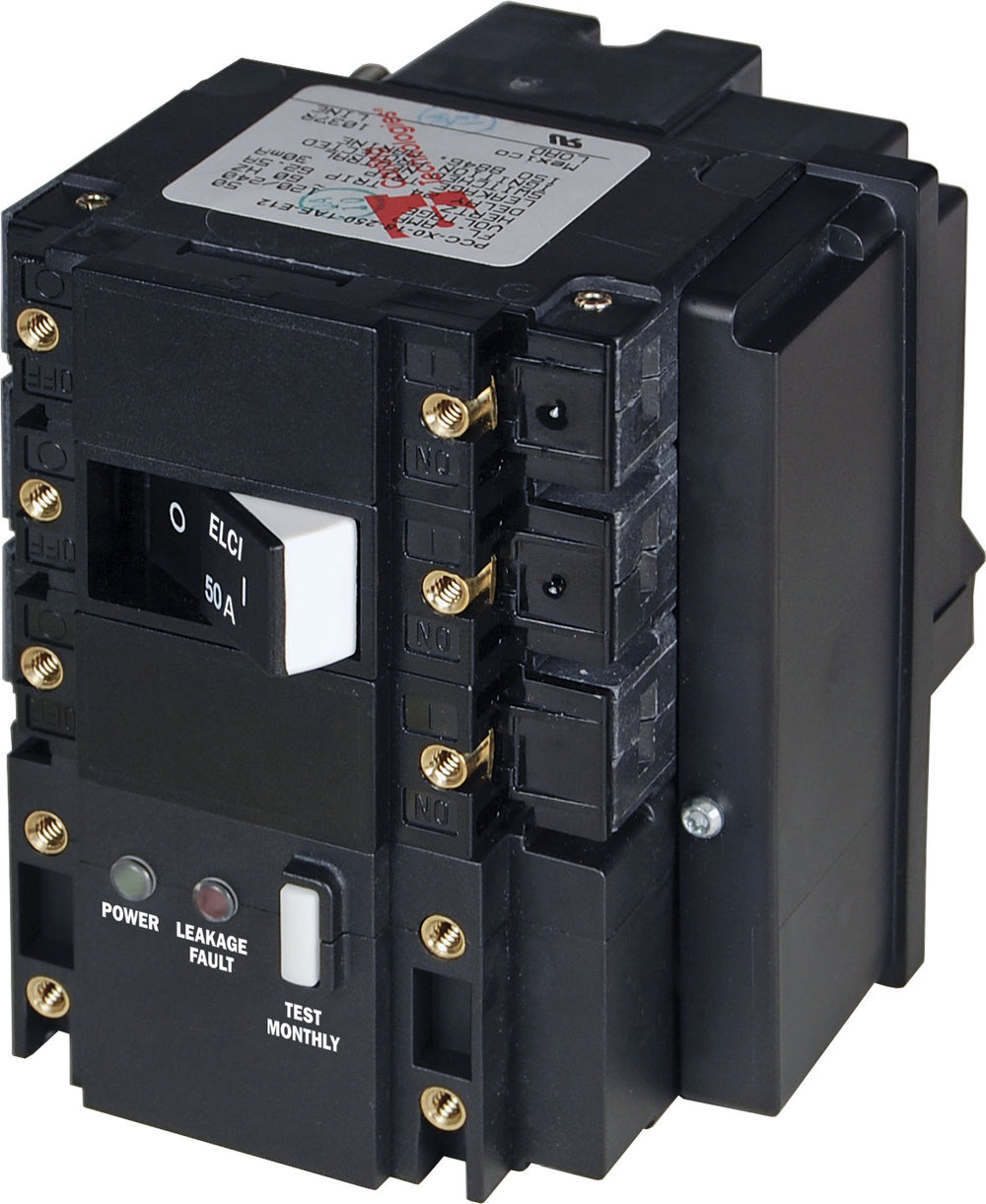

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A

Model: 3104-BSS
  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel
Specifications
Amperage 50A
Actuator Style Flat Rocker
Poles 3
Ignition Protected Yes
Maximum Voltage 120V AC per pole
240V AC per pole
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity 5000A
Minimum Operating Temperature -35° C
Maximum Operating Temperature 66° C
Leakage Trip Amps 30mA
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.85lb (0.39 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085031046

Model Number: 3104-BSS

Weight: 0.850000
