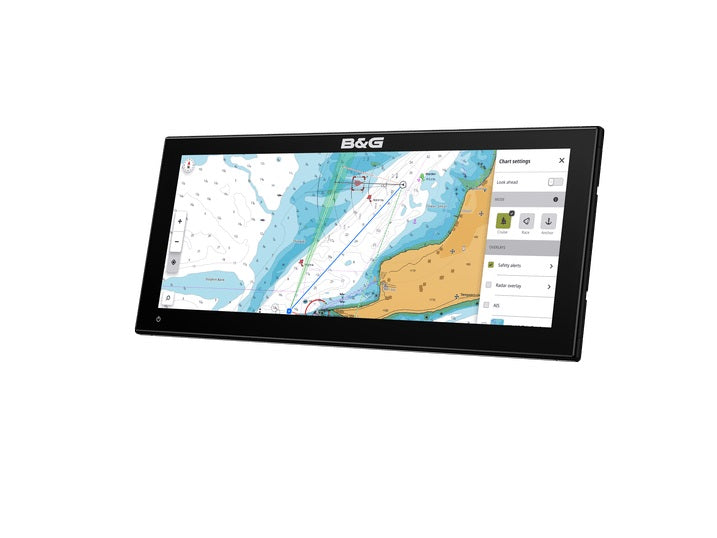

B & G Zeus® S 3015 Ultrawide chartplotter AMER. 15-inch ultrawide SolarMAX™ IPS HD Display. Built-in GPS, WIFI. With C-MAP® DISCOVER™ X chart.
Model: 000-16357-001Zeus S Ultrawide delivers our most streamlined and immersive sailing experience yet. For the first time, see apps as they were meant to be seen — uninterrupted by bezels or dead space.
Zeus S Ultrawide brings perfectly-optimized splits and uninterrupted data flows that are easier to digest — u nlocking more data, more controls, more possibilities. Get ultrawide views of all our award-winning sailing features, such as SailSteer, Laylines, StartLine. And, with a selection of modes, it’s never been easier to find the right tools at the right time.
Zeus® S Ultrawide features simplified datasets for casual cruising, alongside our award-winning sailing features like LayLines and SailSteer™ to help you stay on course.
When it’s time to race, selecting Race Mode puts you instantly in control of powerful tools like StartLine and RacePanel .
A dedicated anchor mode delivers the simplicity and peace of mind needed for a relaxing rest stop, ensuring you don’t run aground at low tide . *Software update required
Charts never looked as good as they do on Zeus S Ultrawide. The latest C-MAP® DISCOVER® X charts are optimized specifically for the platform. The ultrawide display’s high pixel density shows super—sharp resolution like never before — letting you appreciate unprecedented levels of detail. The X-Gen charts also feature C-MAP® Safety Alerts and the X-Chart Manager for simple updates.
Specifications| Display | |
| Size and Type | 15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Resolution | 1920 x 720 px |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Screen Brightness | >1000 nits |
| Backlight Color | White |
| Power | |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Power Consumption max | 25 W (1811 mA at 13.8 V) |
| Protection | Reverse polarity and over voltage (Max 18V) |
| Recommended Fuse Rating | 3A |
| Physical | |
| Dimensions W x H x D with bracket | H: 180. mm (7.10") D:96.5 mm (3.80") |
| Dimensions W x H x D without bracket | W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48") |
| Weight | 1.9 kg (4.2 lbs) |
| MountingType | Rear mount (bracket supplied), Bracket mount (bracket optional) |
| Compass Safe Distance | 50 cm (1.7 ft) |
| Environmental | |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Shock Vibration | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar Compatibility | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100. |
| Ethernet | 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars |
| Weather | Sirius XM (USA Only) |
| USB | 1 port (USB A) Output: 5 V DC, 1.5 A |
| External Storage | 1 MicroSD slot, 1 port (USB A) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| GPS Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS Receiver Channels | 32 Channels |
| GPS Update rate | 10Hz |
| J1939 | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Charts Supported | C-MAP Discover X, C-MAP Reveal X. Third party charts (contact venor for NEON compatible charts) |
| AIS | Receive AIS data over NMEA 2000 |
| Digital Switching | C-Zone |
| Warranty | |
| Warranty Period | 2 Years |
Brand: B & G
UPC: 9420064136551
Model Number: 000-16357-001
Weight: 11.000000
