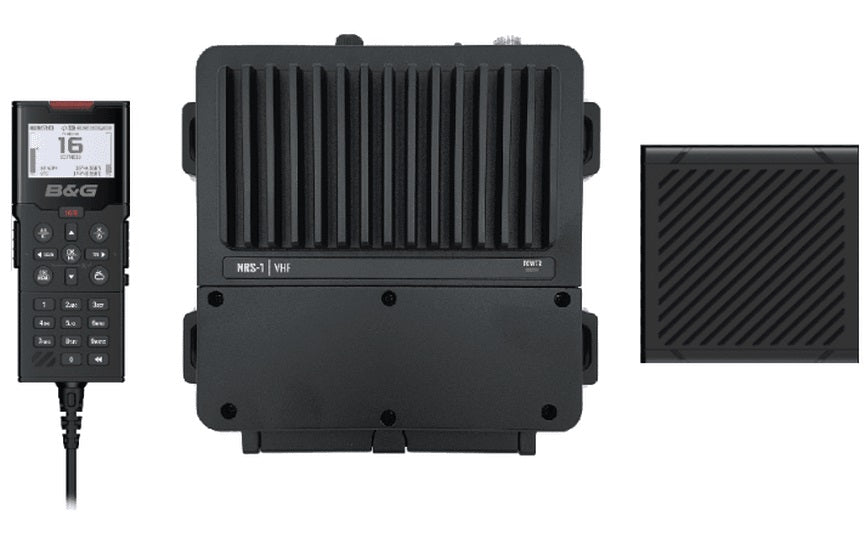

B&G V100 Blackbox VHF Radio System
Model: 000-15644-001Stay safer on the water with the B&G V100 VHF marine radio. With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board.
Includes NRS-1 VHF Blackbox module and one H100 wired handset and one SP100 speaker. Add up to 4 total wired handsets, 4 speakers and 4 wireless H60 handsets.
The V100 comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio’s display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.
Specifications| System Features | Yes |
| Local/Distant control: | Yes |
| Position polling: | Yes |
| Group call: | Yes |
| Call logs: | Yes - 20 individual and 10 distress |
| Channel naming: | Yes |
| Handset naming: | Yes |
| Dual watch / Tri watch: | Yes |
| Favourite channel scan: | Yes |
| All scan: | Yes |
| User programmable MMSI: | Yes |
| User programmable ATIS ID: | Yes |
| MMSI and NAME directory: | Yes - 50 vessel contacts and 20 group contacts |
| Software updates: | Yes, via NMEA 2000 |
| NRS-1 - BLACKBOX | |
| Power supply: | 12 V DC battery system |
| Nominal operating voltage: | + 13.6 V DC |
| Low battery alert: | 10.5 V DC +/- 0.5 V |
| Over voltage protection: | > 15.8 V +/- 0.5 V |
| Current drain (transmit): | ≤ 6 A @ 25 W / 1.5 A @ 1W (12 V DC) |
| Current drain: NRS-1 (standby, 1 FHS): | Less than 400 mA in standby |
| Replacement fuse: | 10 A, mini-blade type |
| Temperature range: | -20 C to +55 C (-4 F to 131 F) |
| VHF antenna connector: | SO-239 (50 ohm) |
| GPS antenna connector: | SMA (female) |
| Wireless connector: | RP-SMA (female) |
| Compass safe distance: | 0.5 m (1.5’) |
| NMEA 0183 input NRS-1 / NRS-2: | RMC, GGA, GLL, GNS |
| NMEA 0183 output NRS-1 / NRS-2: | DSC, DSE, MOB, VDM |
| External Speaker output power: | 4 W @ 4 ohm x 4 outputs |
| External speaker: | 4 ohm, minimum 5 |
| Hailer output power: | 25W @ 4 ohm |
| Hailer speaker: | 4 ohm, minimum 30 W |
| Waterproof: | IPx5 |
| Weight: | 1.46 kg (3.2 lbs) |
| Transciever | |
| Usable channels (country specific): | International, USA, Canada, Weather |
| Channel spacing: | 25 KHz |
| Frequency stability: | ± 5 ppm |
| Frequency control: | PLL |
| DSC mode: | Class D (Global) with dual receiver (individual CH70) |
| Transmitter | |
| Transmitter Frequency range: | 156.025 - 157.425 MHz |
| Output power: | 25 W (23 ± 2) / 1 W (0.8 ± 0.2) |
| Transmitter protection: | Open / short circuit of antenna |
| WIRELESS SPECIFICATION | |
| Wireless standard: | 802.11 b/g/n20 |
| Operating frequency: | 2412~2472 MHz (for EU); 2412-2462 MHz (for US) |
| Tx Power (802.11 b - 11 Mbps): | 9.77 dBm (Declaration for EU Compliance) |
Brand: B & G
UPC: 9420064115976
Model Number: 000-15644-001
Weight: 8.900000
