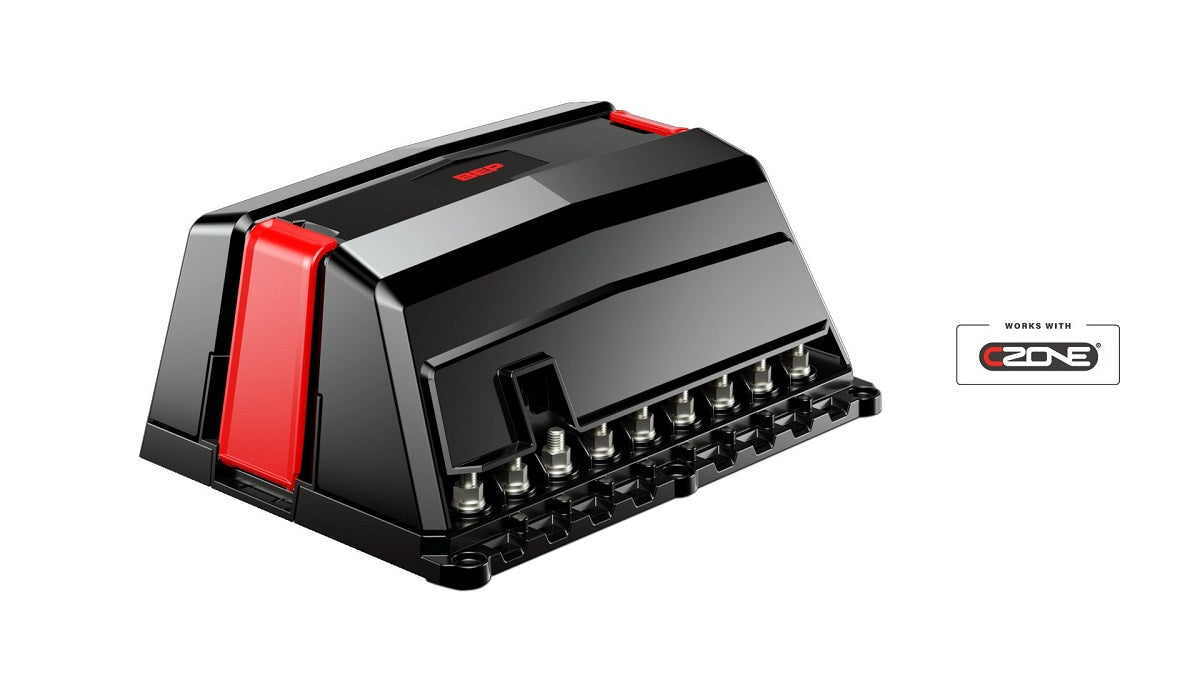

BEP Smart Battery Hub Twin Engine

BEP Smart Battery Hub Twin Engine

BEP Smart Battery Hub Twin EngineModel: 80-716-0030-00 Remotely operated magnetic latching switches Remotely operated emergency parallel switches...
Vendor: BEP
SKU: wt-BEP80716003000
Availability: In stock
£1,191.27
£2,402.34
£1,191.27
Subtotal: £1,191.27
Description
Description
x

BEP Smart Battery Hub Twin Engine

Model: 80-716-0030-00
  • Remotely operated magnetic latching switches
  • Remotely operated emergency parallel switches
  • Configurable dual direction voltage sensitive switches
  • Battery Voltage Monitoring
  • House battery State of Charge Monitoring
  • 2 x additional sensor inputs
  • Safety manual override for all battery switches
  • 12 or 24 volt systems
  • Parallel two units together for 4, 5 and even 6 engine installations

BEP’s innovative Smart Battery Hub (SBH) is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines. Smart Battery Hub simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching (VSS) and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure. VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature. SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.

Specifications
Power consumption max 92mA
Power consumption sleep <3.5mA
NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
Warranty period 5 years
Operating temperature rang -15C to +55C (-5F to +131F)
Storage temperature range -40C to +85C (-40F to +185F)
Dimensions W x H x D 14.310 x 10.841 x 6.280"
NMEA2000 PGN Output Fluid Level, Pressure, Temperature, Battery Volts, State of Charge
Monitoring Battery voltage, House current draw, House state of charge
Ingress protection IPX7
Nominal Voltage 12 or 24V, power harvested from all batteries
Continuous rating 300A
Intermittent rating 700A
Cranking rating 1450A
Additional Inputs 3 x Master switch inputs, 2 x Analogue Inputs, 1 x Battery temperature sensor


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: BEP

UPC: 870216049670

Model Number: 80-716-0030-00

Weight: 19.600000
