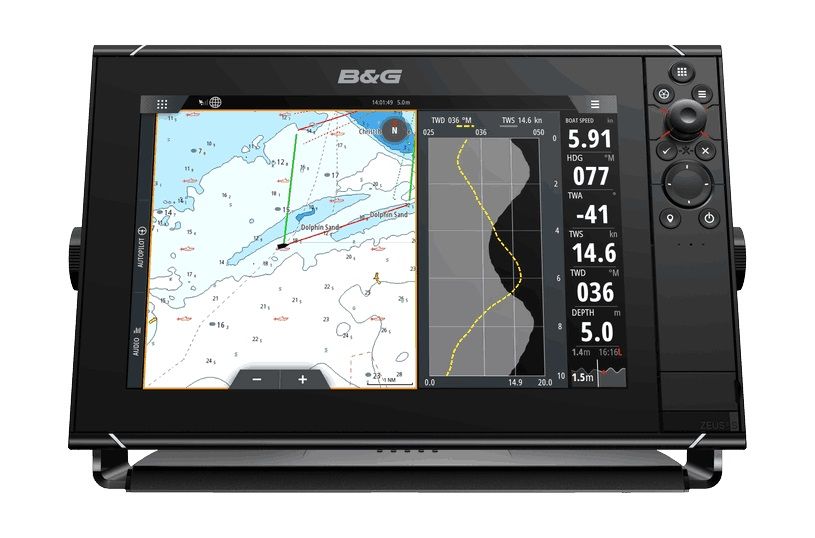

B&G Zeus3S 12 12-inch touchscreen display
Model: 000-15409-002This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
The Zeus 3S series are the complete navigation solution for blue water cruisers and regatta racers. With superfast processors you can display up to 6 different information panels simultaneously, on the ultra-bright SolarMax IPS all- weather touchscreen, which is combined with a rotary dial and keypad for ultimate control in all conditions.
These easy to use chartplotters include all of B&G’s unique and proven sailing features such as SailSteer, Laylines, and RacePanel and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
The SolarMAX IPS screen ensures perfect visibility in all conditions. Zeus 3S’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.
See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.
Let Zeus 3S do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.
Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.
Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.
Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus 3S can also take full control of on-board systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.
Zeus 3S has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.
Just add power to enjoy Zeus 3S as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.
Zeus 3S sits at the heart of your boat — and you can take command of commissioning and controlling your B&G autopilot from your Zeus 3S’s touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.
See what lies ahead under the water by adding a ForwardScan transducer. Benefit from a real-time two-dimensional view of the seabed in front of your boat. Navigate into shallow anchorages and poorly charted areas with ease and know what lies ahead with confidence.
Negotiate busy shipping lanes, see through darkness and poor visibility and track weather cells with B&G Halo Radar on your Zeus 3S.
Add a SonicHub to take control of your onboard entertainment from your Zeus 3S display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your Zeus 3S display.
Zeus 3S chartplotters support a wide range of leading cartography, from C-MAP and Navionics. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.
Specifications| Physical | |
| Dimensions | 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) |
| Weight | 3.10kg/6.83lb |
| Environmental | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Environment Shock Vibration | 100,000 cycles of 20G |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Water resitance | IPX6 and 7 |
| Power | |
| Supply voltage | 10 - 31.2 V DC |
| Fuse rating | 5A |
| Power consumption (Max) | 28W |
| Display | |
| Display backlight color | White |
| Display resolution | 800 x 1280 |
| Display screen brightness | 1200 nits |
| Display size and type | High Visibility SolarMax HD® IPS 7" optically bonded TFT |
| Display viewing angles | 80° top/bottom, 80° left/right |
| Connectivity | |
| Ethernet | 2 x 5 pin yellow connector x 1 Mbit |
| Bluetooth | Internal |
| NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use the same baud rate. Optional data cable required (P/N 000-00129-001) |
| Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI Output April 2022 |
| WiFi connectivity | Internal |
| Sonar | |
| Sonar frequencies | 40-250kHz 455-800kHz |
| Sonar max depth | 3000’+ (tested with B175L) |
| Sonar output power | 1kW RMS |
| GPS | |
| GPS | Internal |
| GPS update rate | 10 Hz |
| GPS channels | 34 Channels |
| GPS correction | WASS, EGNOS, MSAS, GLONASS |
| GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
| Features | |
| Interface | Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers |
| Charts Incuded | Insight |
| Radar | Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
| Sonar | Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders" |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| AIS | Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors) |
| Auto pilot integration | Full auto pilot control and commissioning |
| Autopilot steering modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot manouevres turn patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Supported Charts | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Digital switching | BEP C-Zone, Naviop |
| External storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
| Internal storage | 16 GB |
| Multi-media | via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Waypoints, routes & tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Launguage Support | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. |
Brand: B & G
UPC: 9420064130191
Model Number: 000-15409-002
Weight: 13.200000
