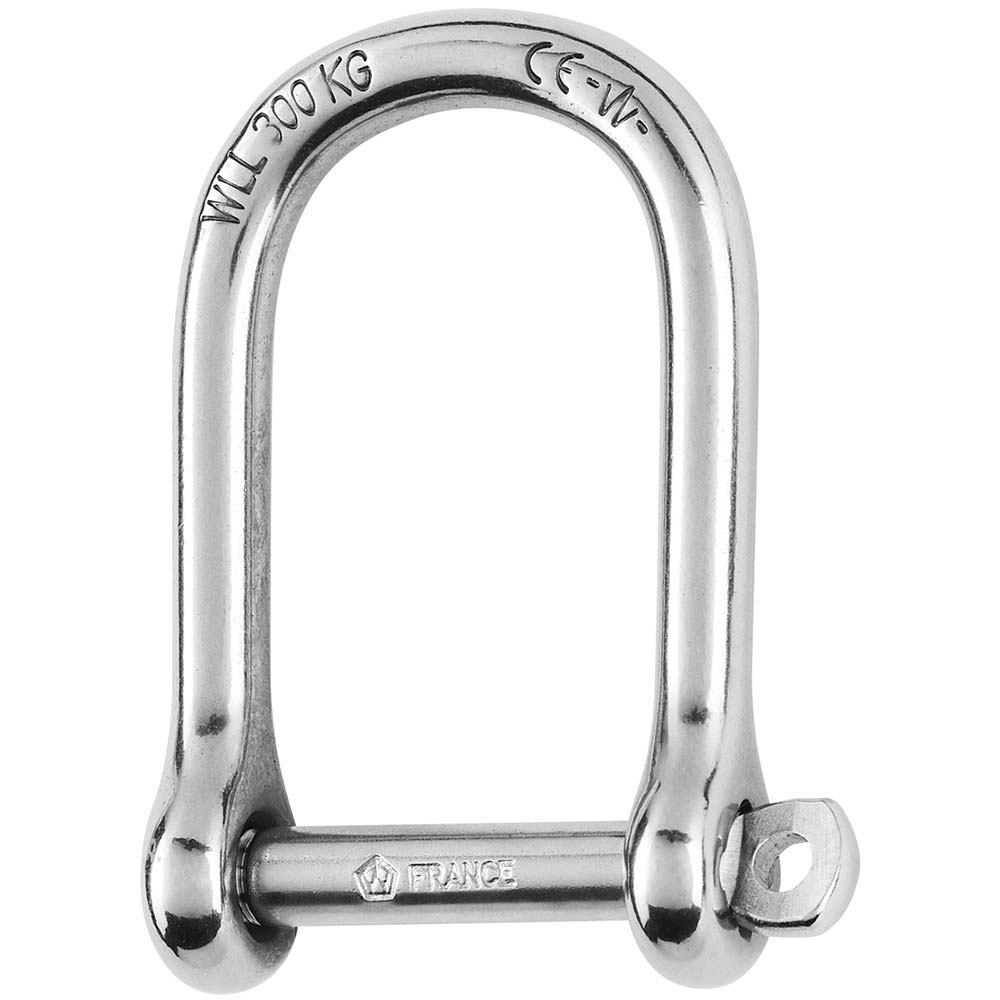

Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 550
  • WLL (lb) 480
  • Breaking load (lb) 2420
  • Weight (lb) 0.035

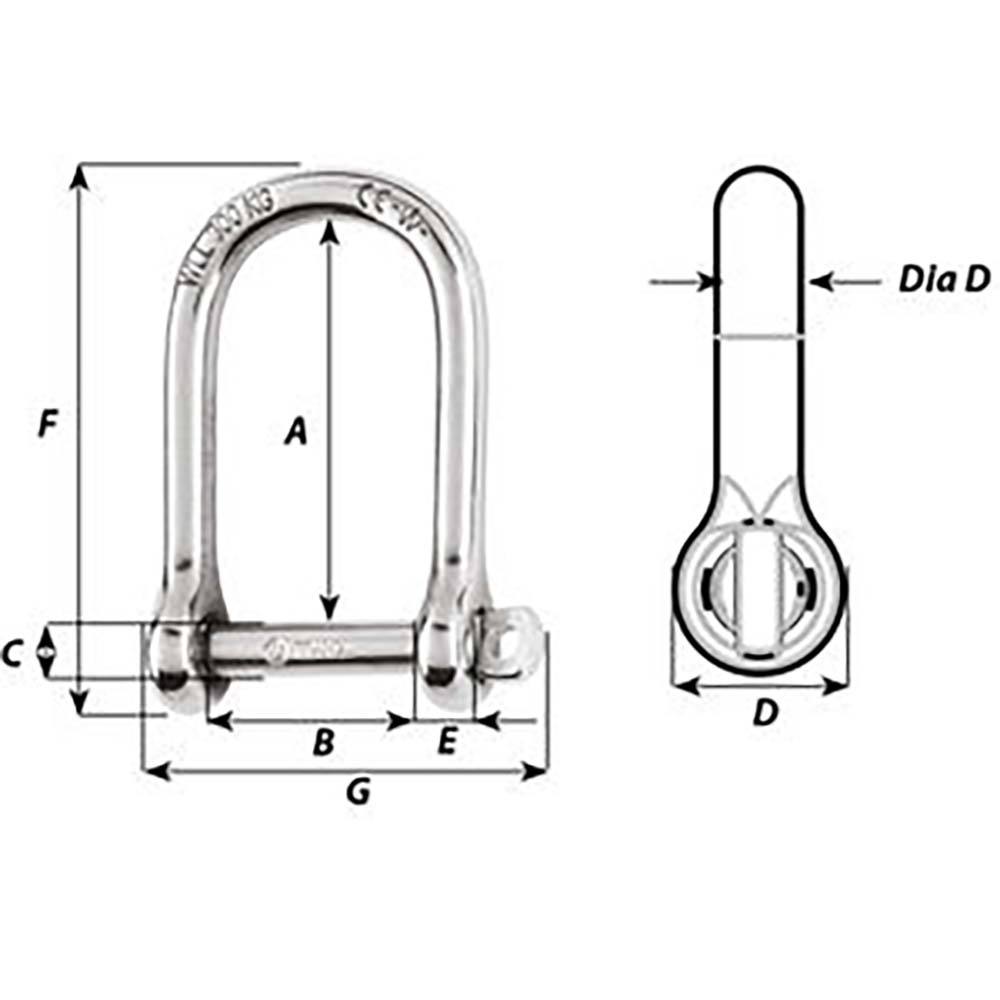

Dimensions (see 2nd image):

  • A (inch) 1-27/64"
  • B (inch) 25/32"
  • C (inch) 13/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 1-57/64"
  • G (inch) 1-3/8"
