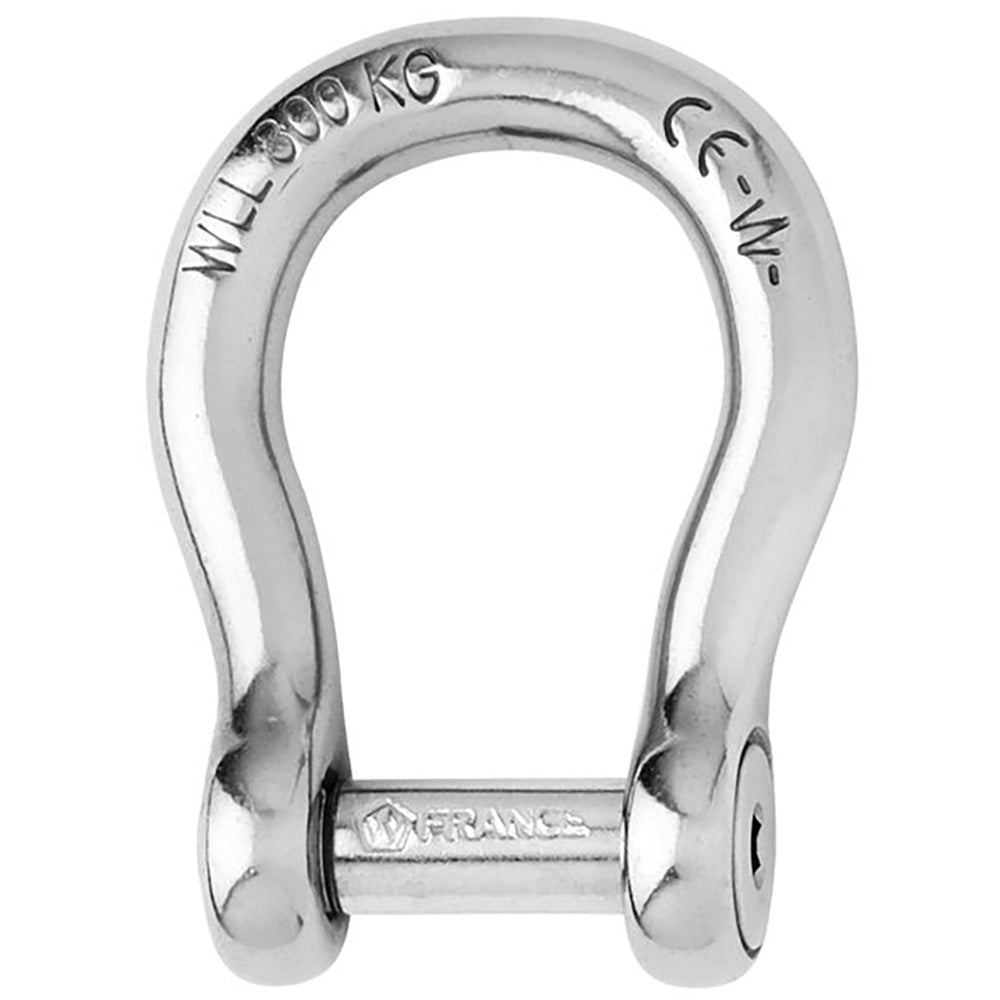

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32" [1346W]

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.489 / (g) 222

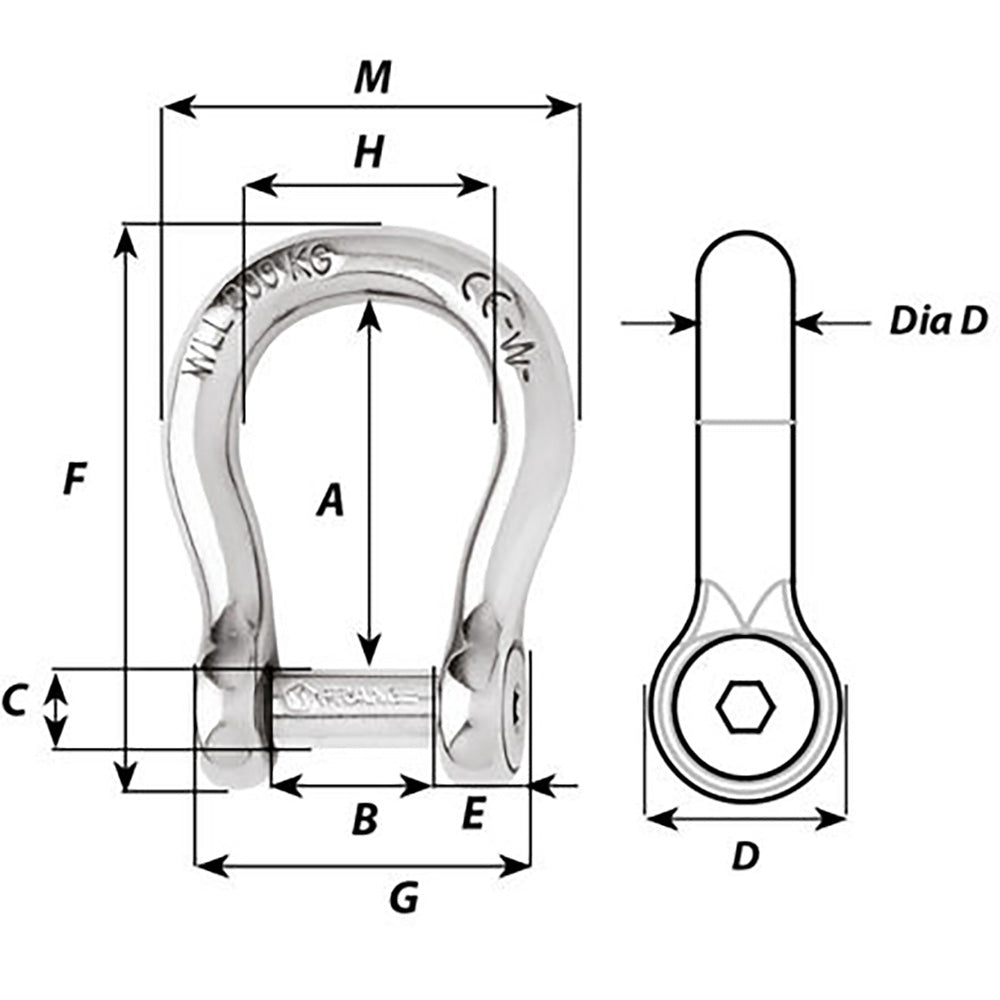

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 15/32" / (mm) 12
• D: (inch)15/16" / (mm) 24
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 25/64" / (mm) 10
• F: (inch) 1 1/2" / (mm) 38
• M: (inch) 2 31/64" / (mm) 63

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
